S0602170K
Page 37
Axle (ZF AP 420R)

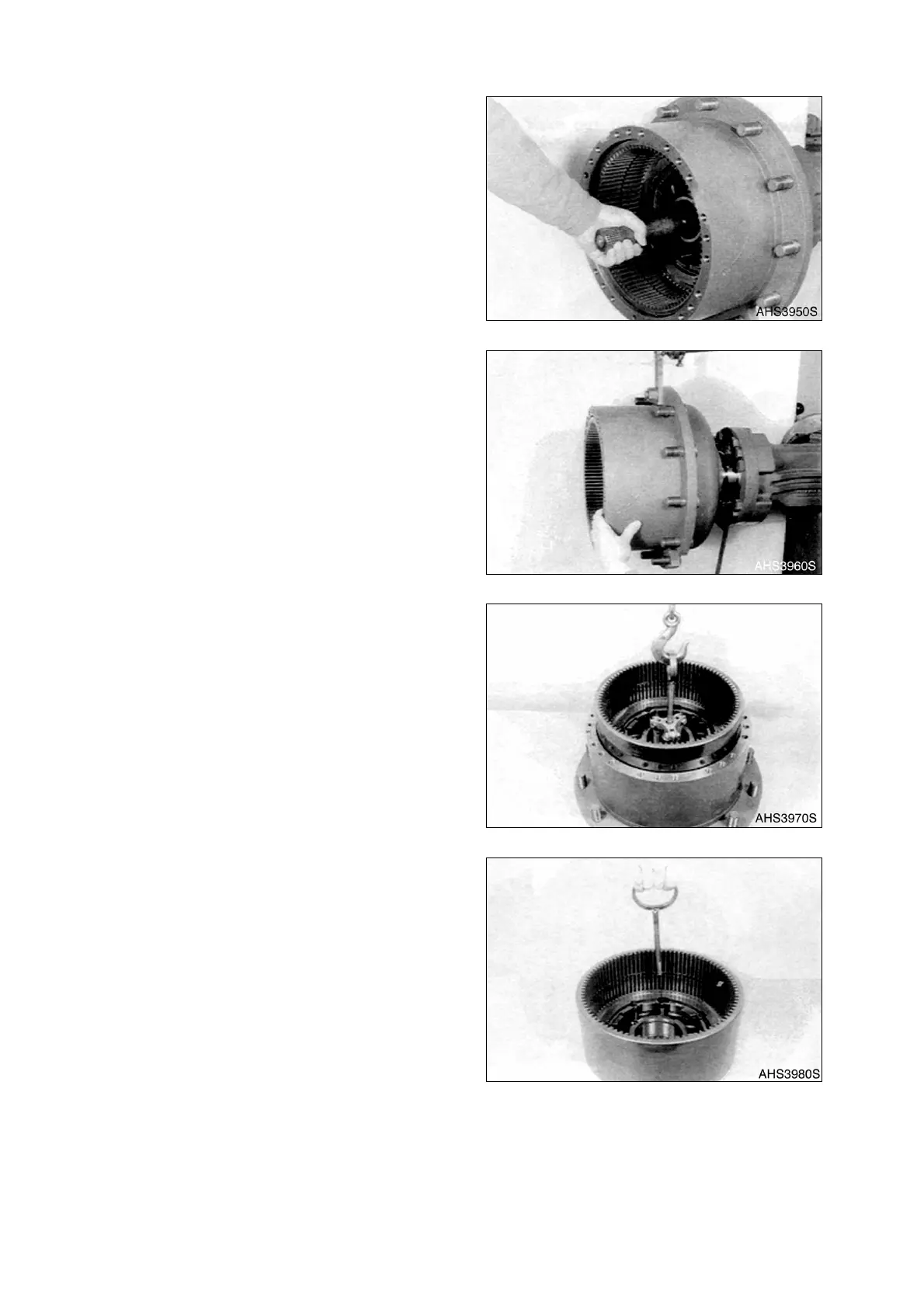

12. Pull stub shaft out of the axle housing.
13. Separate complete hub from hub carrier.
NOTE:
See “Special Tools” on page 15.
14. Lift internal gear and internal gear carrier
out of the hub.
15. Remove released spacer.
NOTE:
See “Special Tools” on page 15.
16. Unhook return springs.
NOTE:
See “Special Tools” on page 15.
Figure 29
Figure 30
Figure 31
Figure 32
