Transmission and Torque Converter
(ZF 4WG-310)
H. Introduce pressure regulators and
secure them using retaining plates
and socket head screws.
NOTE:
Install retaining plates, with the
claw facing downward.
I. Pay attention to radial installation
position of pressure regulators, see
Figure 64.
NOTE:
Torque limit 5.5 Nm (4 ft lb).
J. Install cable harness and connect
pressure regulators (6x).
NOTE:
Pay attention to installation
position of cable harness, see
markings (Figure 43).
K. Mount flat gasket (Figure 66).
L. Introduce female connector, with the
groove facing the guide nose of the
cover, until contact is obtained.
M. Fasten cover with socket head
screws.
NOTE:
Torque limit 0.56 kg•m (4.06 ft
lb).
N. Locate the female connector using
retaining clip.
O. Install opposite cover.

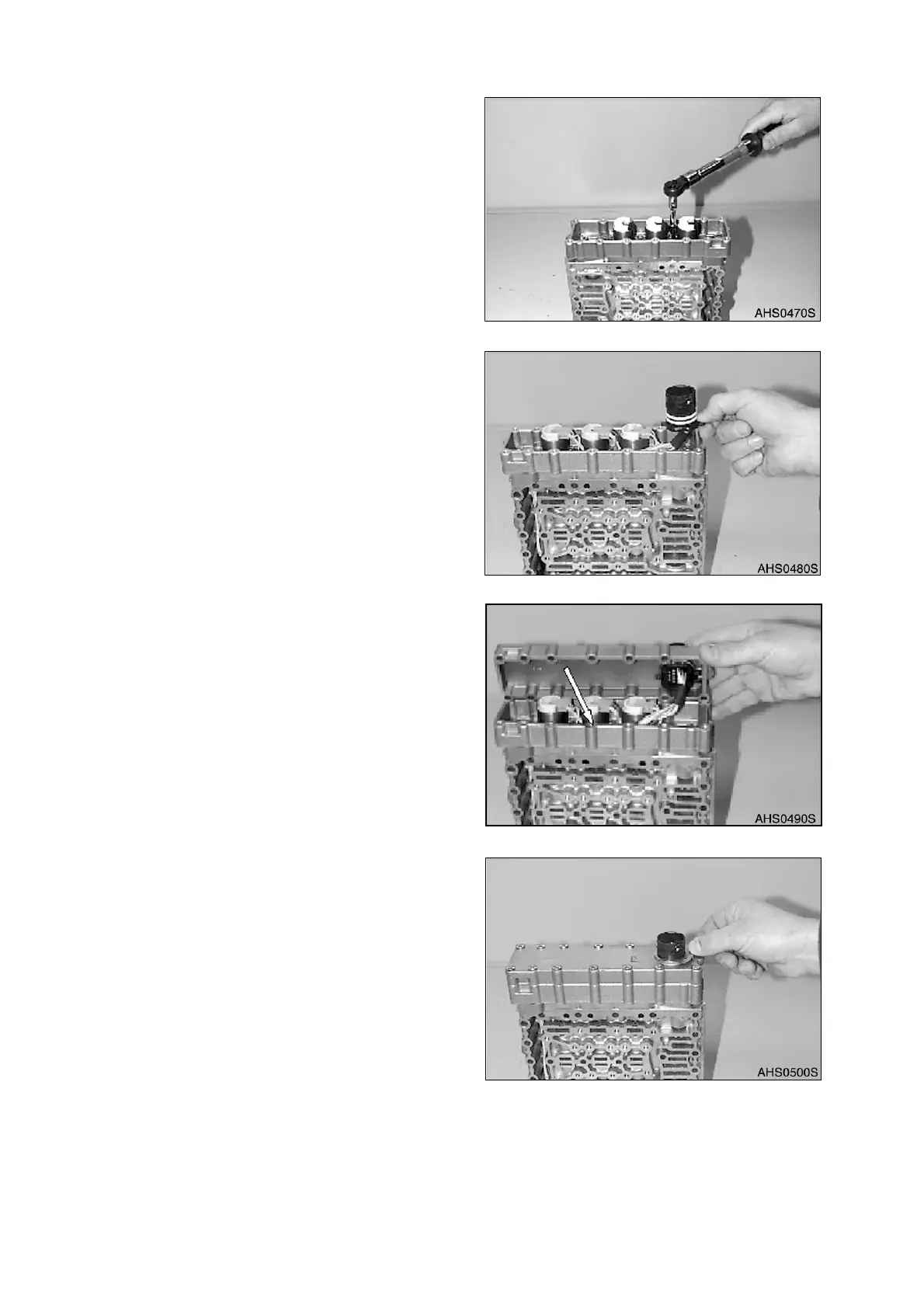

Figure 64
Figure 65
Figure 66
Figure 67
