Transmission and Torque Converter
(ZF 4WG-310)
P. Install two adjusting screws and
mount gasket I.
NOTE:
Pay attention to different
gaskets, see Figure 68 and
Figure 71.
9. Intermediate plate-version with screens:
A. Insert screens (6x) flash mounted
into bore of intermediate plate, see
Figure 69.
NOTE:
Pay attention to installation
position- screens are facing
upward (facing duct plate).
B. Mount intermediate plate, with the
strainers facing upward.
C. Mount gasket II.

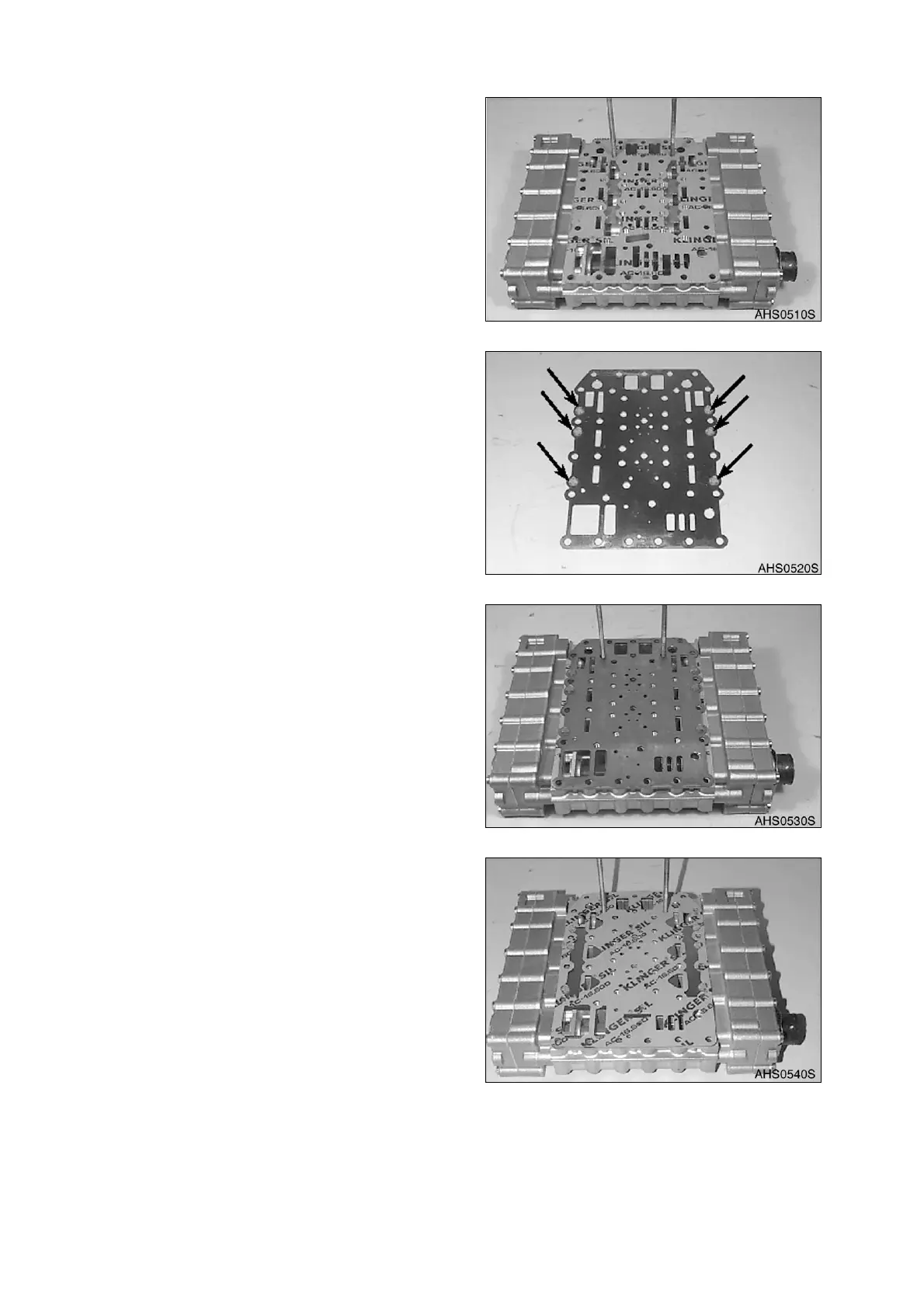

Figure 68
Figure 69
Figure 70
Figure 71
