Transmission and Torque Converter
(ZF 4WG-310)
D. Mount duct plate and fasten it
uniformly using socket head screws.
NOTE: Torque limit 9.5 Nm (7 ft lb).
E. Equip screw plugs (8x) with new O-
rings and install them.
NOTE: Torque limit 6 Nm (4.4 ft lb).
10. Attach Hydraulic control unit (HSG-94)
(Figure 74 - Figure 84).
A. Screw orifice into the housing bore
(Figure 74) and secure it using
center punch.
B. Install connecting fittings 1- 6.
C. Install screw plugs 7.
NOTE: Torque limit Screw plugs
(M10x1) 6 Nm (4.4 ft lb).
NOTE: Install always new O-rings.

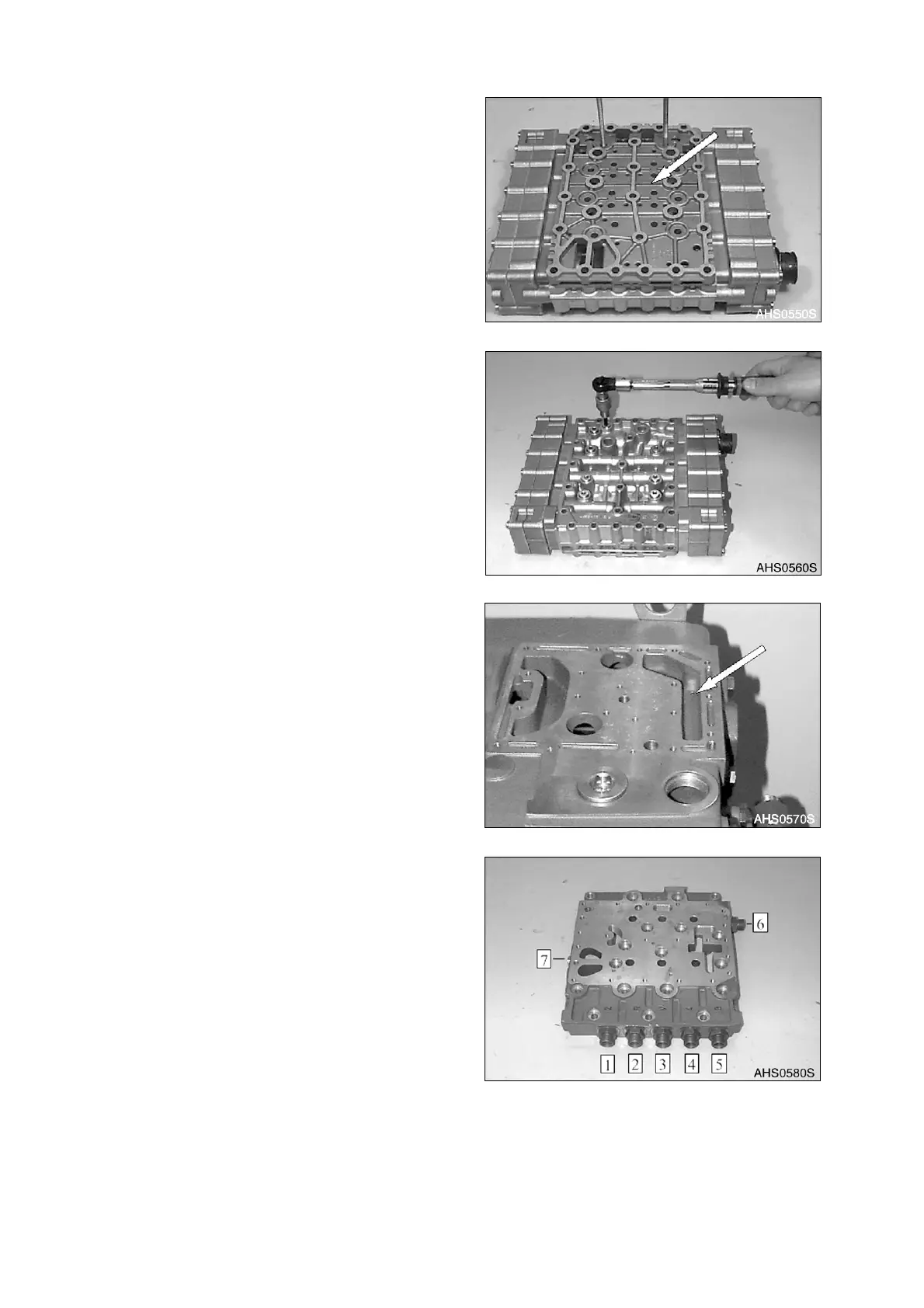

Figure 72
Figure 73
Figure 74
Figure 75
