Transmission and Torque Converter
(ZF 4WG-310)
D. Install two adjusting screws (M8) and
mount housing gasket.
E. Mount intermediate plate.
F. Mount 2nd gasket.
G. Mount plate and fasten it uniformly
using socket head screws.
NOTE:
Torque limit (M8/10.9) 23 Nm
(17 ft lb).
CAUTION!
At the following steps (Figure 75 -
Figure 81), pay attention to the
installation positions of the different
gaskets.

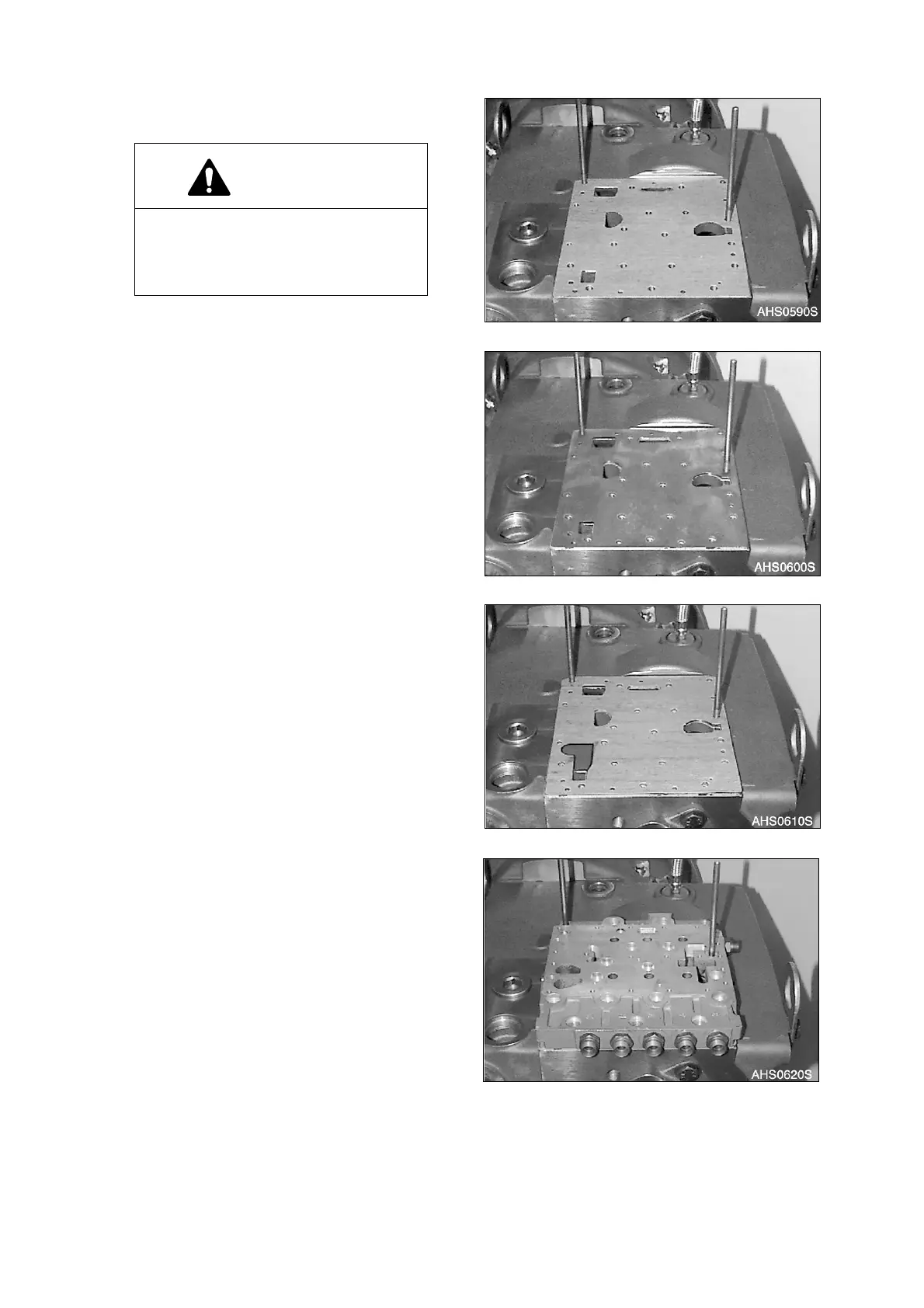

Figure 76
Figure 77
Figure 78
Figure 79
