Transmission and Torque Converter
(ZF 4WG-310)

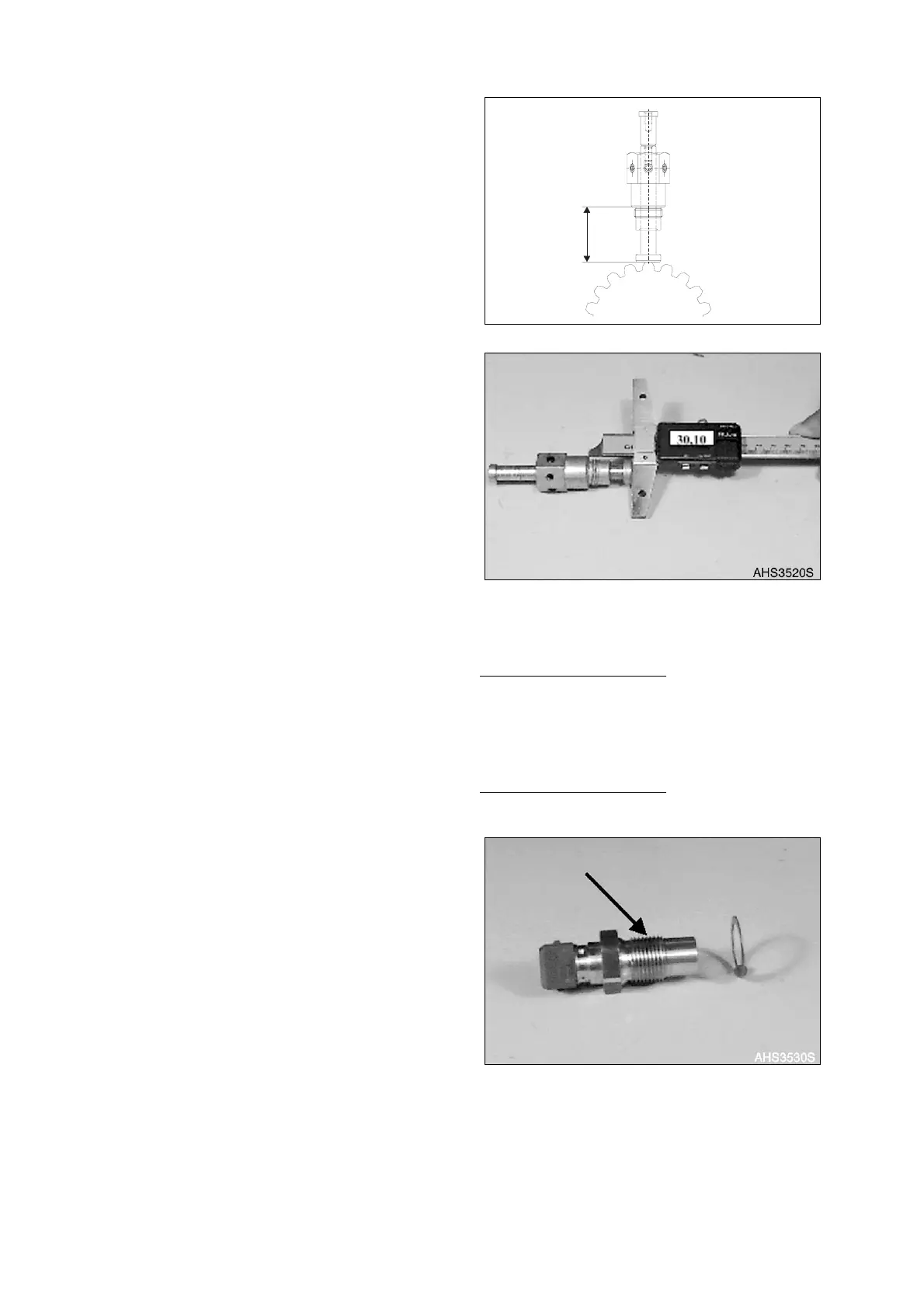

D. Screw the plug gauge out and
determine Dimension II (see also
Figure 405).
NOTE: Dimension II e.g. 30.10 mm
(1.1850 in).
EXAMPLE M1:
EXAMPLE M2:
E. Line up the corresponding adjusting
disk(s) and wet thread (Arrow) with
Loctite #574.
Dimension II e.g. 30.10 mm (1.1850 in)
Dimension X (0.5
+ 0.3
mm (0.0197
+ 0.0118
in)) e.g. - 0.60 mm (0.0236 in)
Gives Installation Dimension A = 29.50 mm (1.1614 in)
Dimension I e.g. 30.10 mm (1.1850 in)
Installation Dimension A e.g. - 29.50 mm (1.1614 in)
Gives Adjusting Disk (s) = 0.50 mm (0.0197 in)
AHS3510S
II
Figure 406
Figure 407
Figure 408
