Power Steering Unit
Return to Master Table of Contents

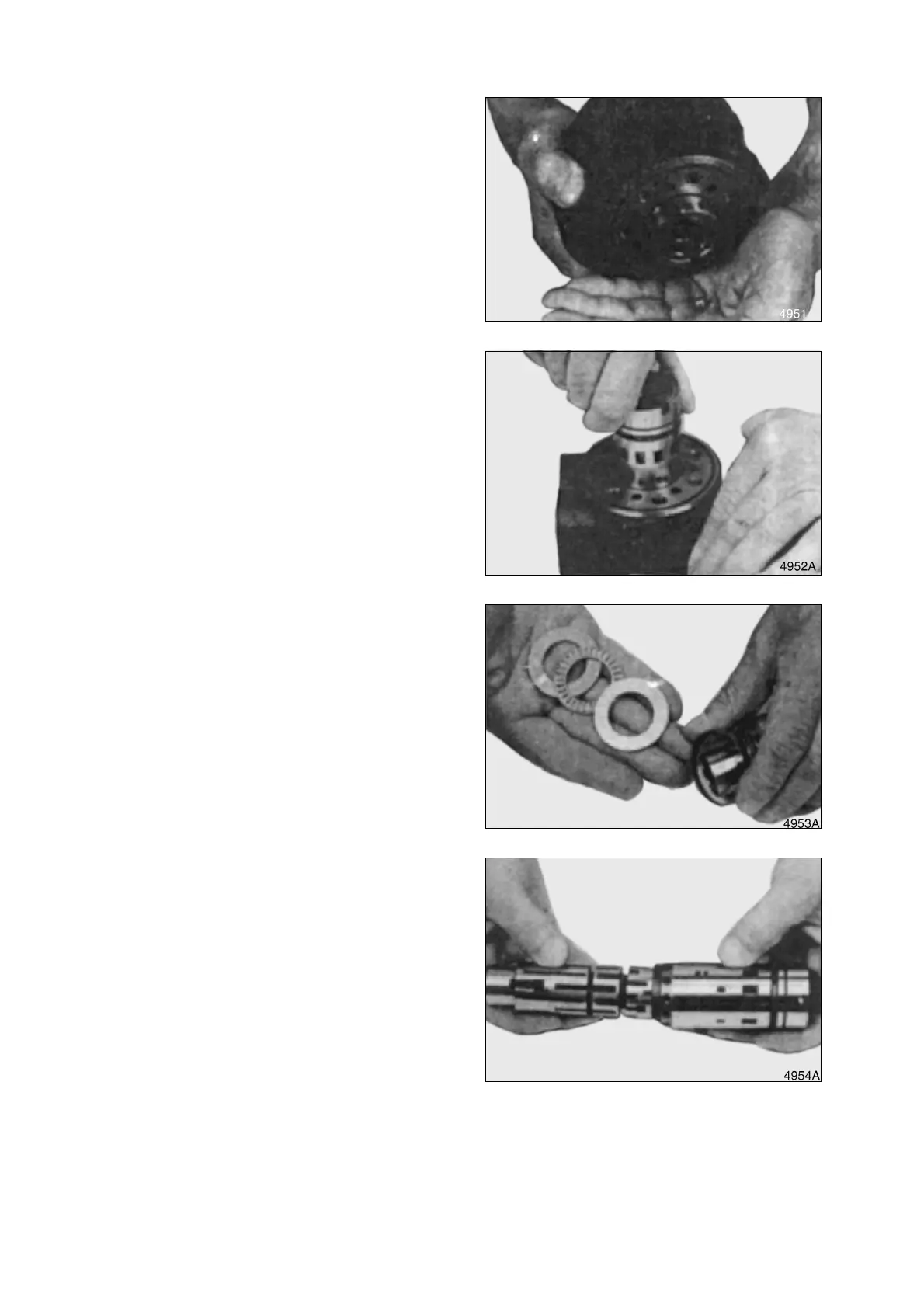

13. Shake ball out of housing. See Figure 21.
14. Pull sleeve and spool out of housing. See
Figure 22.
15. Remove thrust bearing and thrust washers
from sleeve. See Figure 23. Remove
spacer ring. Be sure to remove spacer
ring. It can stick in sleeve.
16. Carefully slide control spool out of sleeve.
See Figure 24.
Figure 21
Figure 22
Figure 23
Figure 24
