S0709730K
Page 17
Power Steering Unit
Return to Master Table of Contents

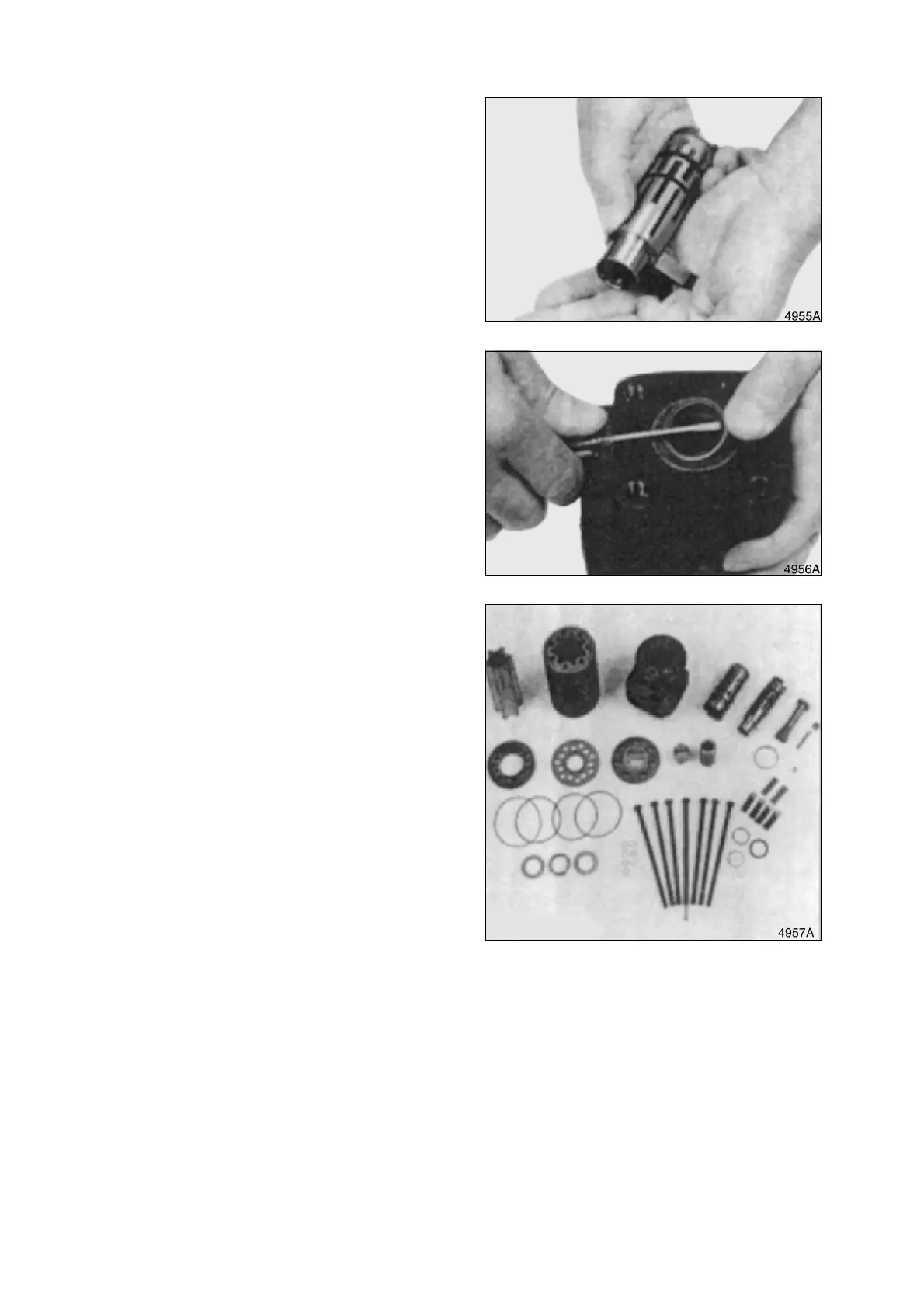

17. Push neutral position springs out of groove
in spool. See Figure 25.
18. Remove dust seal from housing. See
Figure 26. Remove O-ring and backup ring
from inside housing.
19. Figure 27, shows all parts removed from
steering unit. Clean all parts before
assembly. Use only new O-rings and
seals.
CLEANING AND INSPECTION
For general cleaning and inspection procedures, refer to "General Maintenance Procedures" section.
Figure 25
Figure 26
Figure 27
