doble TDR9000 - Figure 4.2 Cable Interconnection Diagram

To Next Page

To Previous Page

TDR9000

™

Circuit Breaker Test System User’s Guide

72A-1898 Rev. A 11/01 4-13

Monday, November 26, 2001 1:09 pm

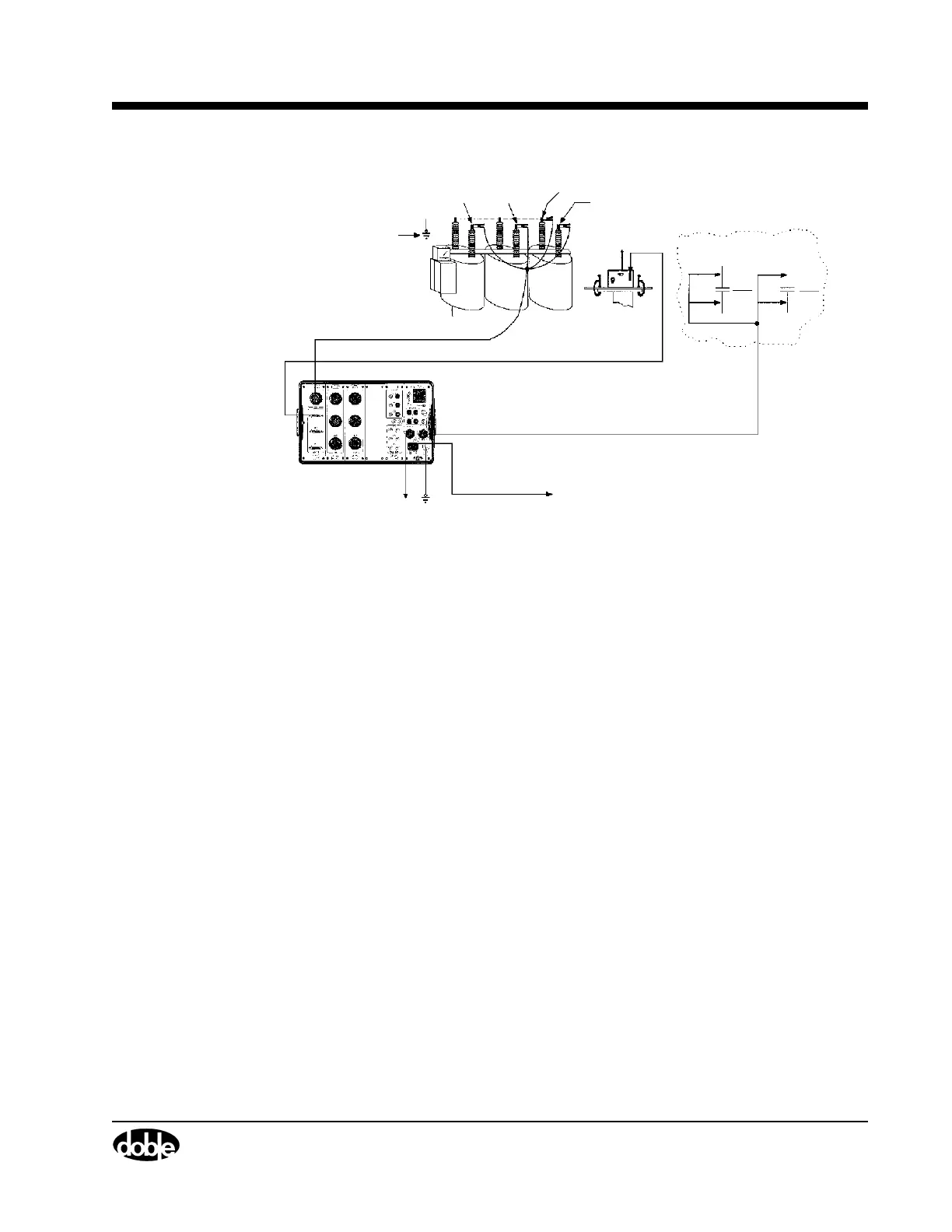

Figure 4.2 Cable Interconnection Diagram – Dead Tank

Make sure that

one side of each

phase is

External Ground

Connection

Contact 1

Phase A

Contact 2

Phase B

Common

Contact 3

Phase C

Contact Monitor Cables

grounded.

Motion Transducer Cable

Breaker (Trip/Close) Control Cable

AC Power

Supply Cable

TDR9000

Safety

Cable

Ground

Close Trip

Trip

52CS

Breaker Control Circuit

in the Control Cabinet

−

+DC
