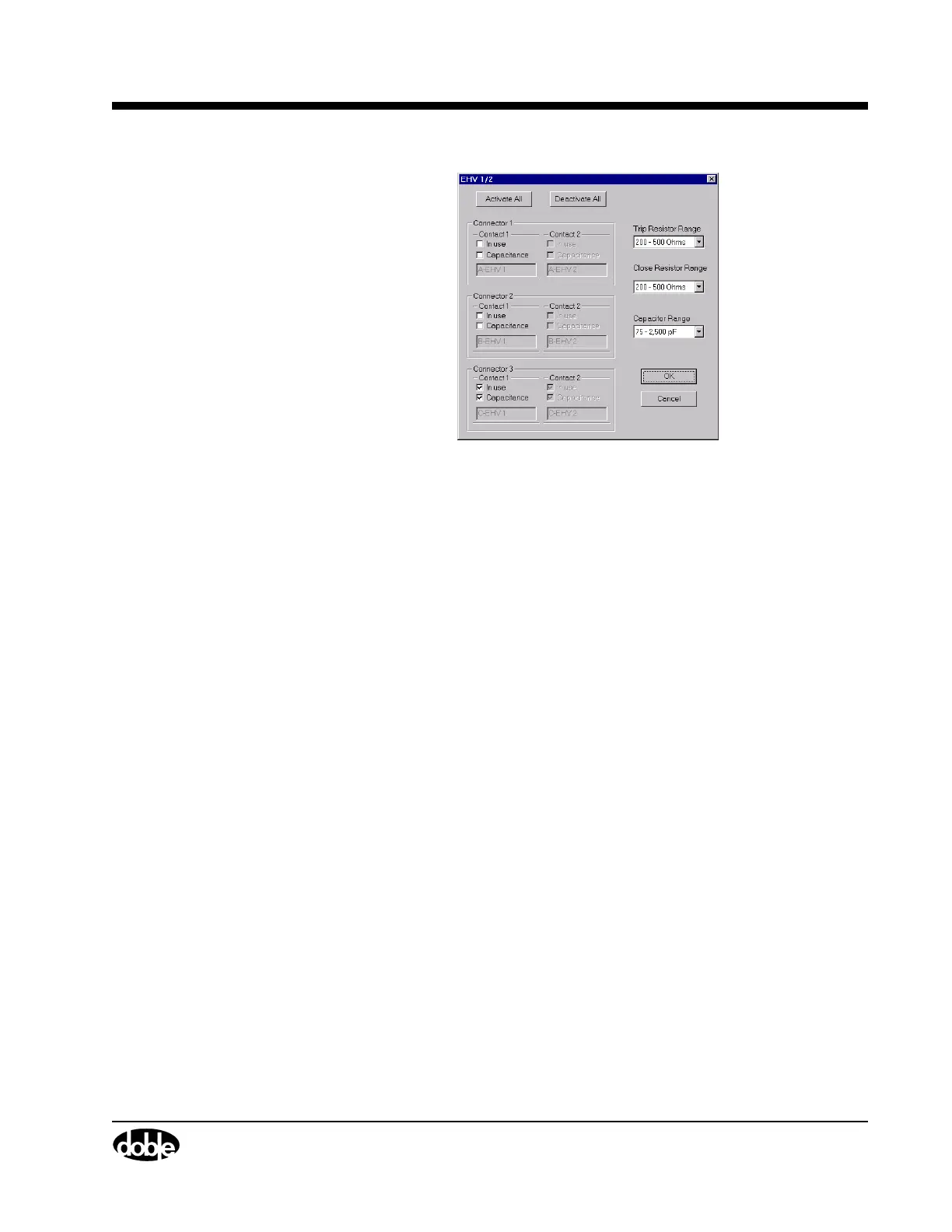

Figure 4.24 EHV – Collective
The following items are configurable.
Items that effect individual EHV channels:
In use Two checkboxes per connector, one for each
contact. If Split mode is not selected, activating
the Contact 1 checkbox implicitly activates the
Contact 2 checkbox.
Refer to ”Main Contact Configuration – EHV/SPLIT
Contact Channel Activation” on page A-64 for a
description.
Capacitance Two checkboxes per connector, one for each
contact, to activate the TDR9000 for a capacitance
test. If Split mode is not selected, activating the
Contact 1 checkbox implicitly activates the
Contact 2 checkbox.
Refer to ”Main Contact Configuration – EHV/SPLIT
Contact Channel Activation” on page A-64 for a
description.
Label Two fields, one per connector contact, where a
label associated with the contact is entered. This
field is not editable.
