Dwell Time
The callouts (B and C) in Figure A.144 on page A-122 show the
parameters and specifications that effect Dwell times for a breaker.
B This is the time when all Main Contacts within a
phase are closed during trip-free operation
(Figure A.142).

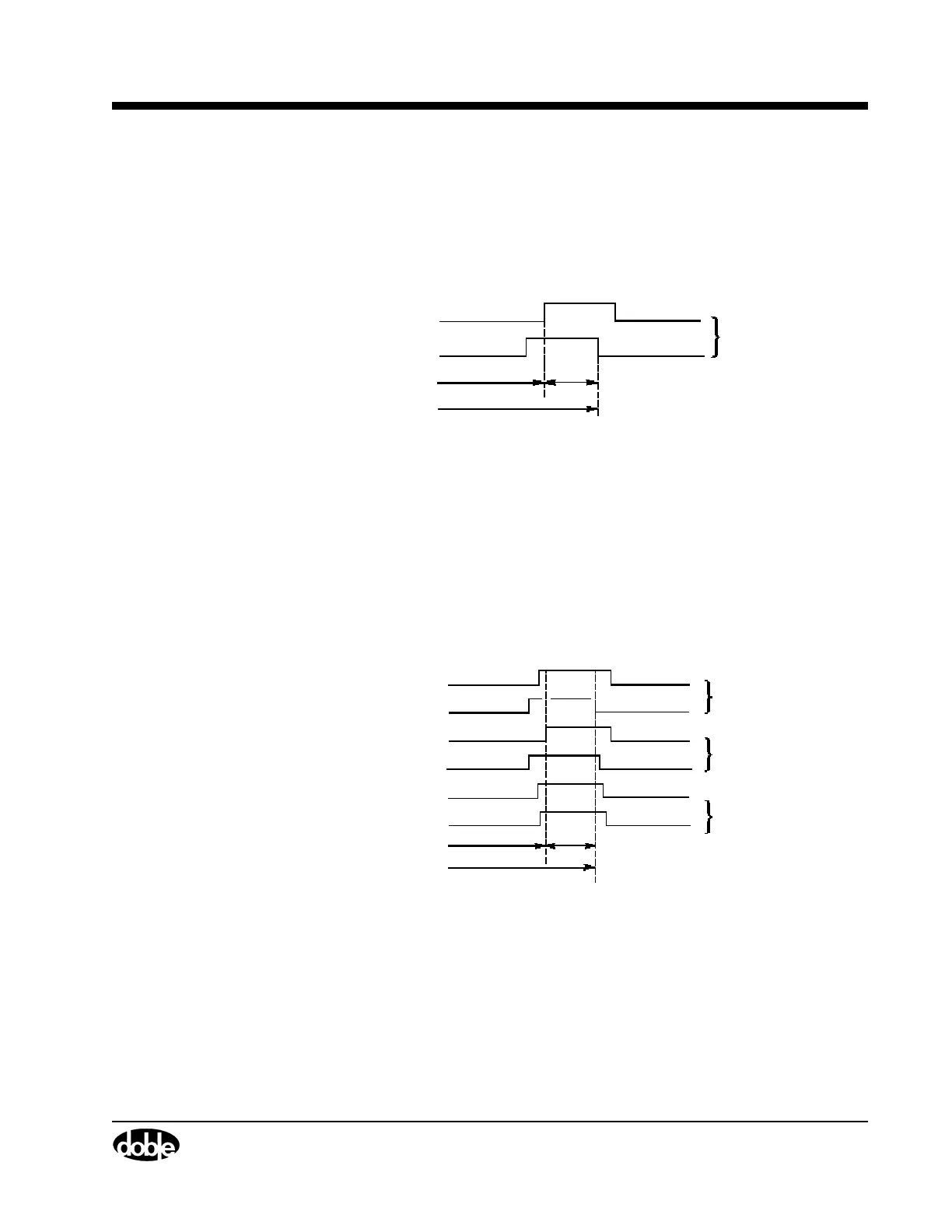

Figure A.142 Trip-Free Test Operation for a Phase (Live Tank Breaker)
Within the phase, the Dwell time (Figure A.144 on page A-122) is
measured as the difference between the time required for the first
Main Contact to open and the last Main Contact to close.
C This is the time when all Main Contacts within the
circuit breaker are closed during trip-free operation
(Figure A.143).
Figure A.143 Trip-Free Test Operation Within a Breaker
(Live Tank Breaker)
