TDR9000

™

Circuit Breaker Test System User’s Guide

72A-1898 Rev. A 11/01 A-59

Monday, November 26, 2001 1:09 pm

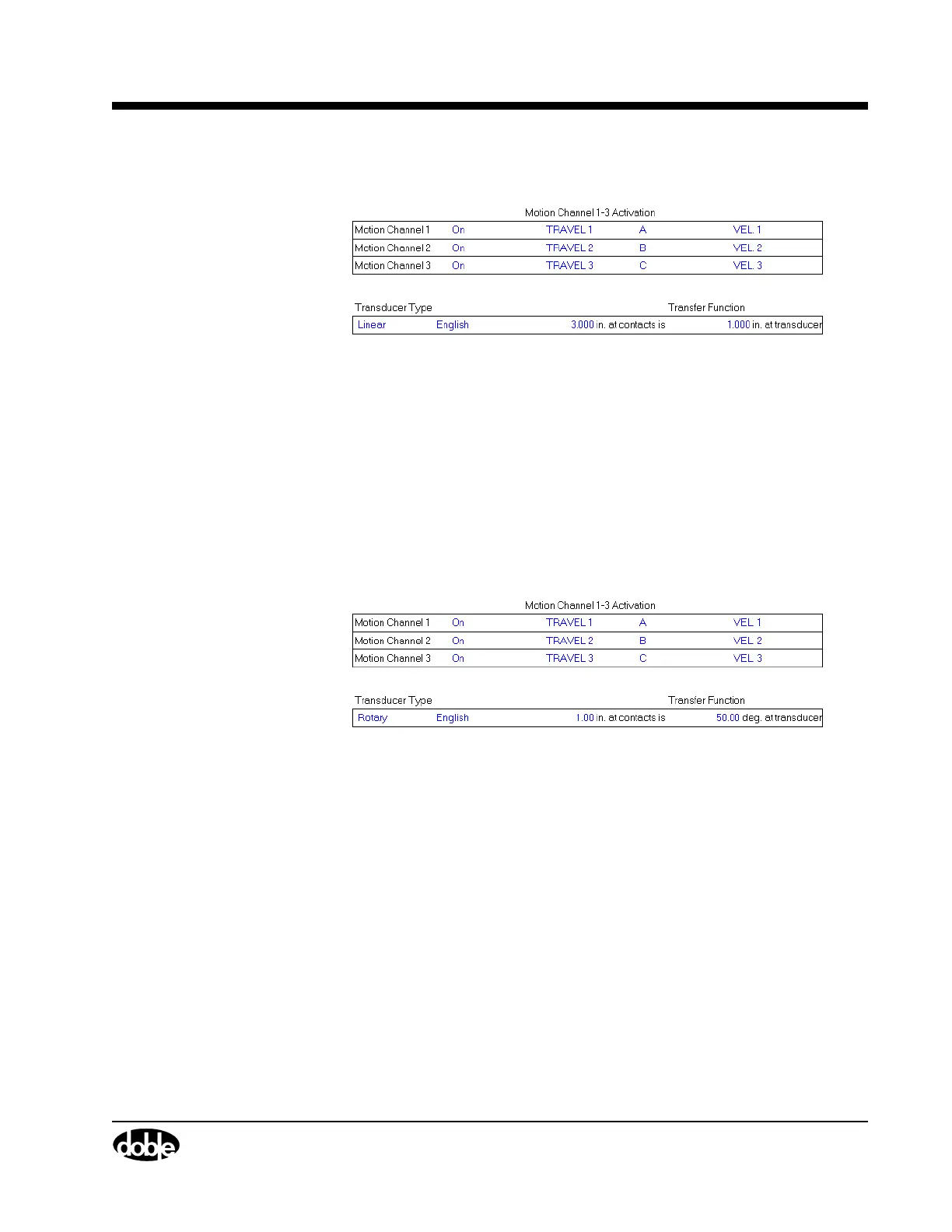

The Transfer Function is shown in Figure A.70.

Figure A.70 Transfer Function Resolution

If the Main Contacts have moved 30"

, th

at means that for every 0.00125"

movement of the Transducer connecting rod, the Main Contacts would

move 0.00375". Consequently, when the Transfer Function 3:1 is used,

the resolution becomes 0.00125 x 3 = 0.00375".

Practical considerations limit the value of the Transfer Function values.

The Instrument checks to ensure that linear-to-linear Transfer Function is

less than or equal to 50:1.

Figure A.71 shows an example of the rotary-to-linear Transfer Function.

Figure A.71 Rotary-To-Linear Transfer Function
