doble TDR9000 - Trip Free (C-O); Figure 2.11 Trip Free Command Pulse

To Next Page

To Previous Page

Trip Free (C-O)

2-16 72A-1898 Rev. A 11/01

Monday, November 26, 2001 1:09 pm

Trip Free (C-O)

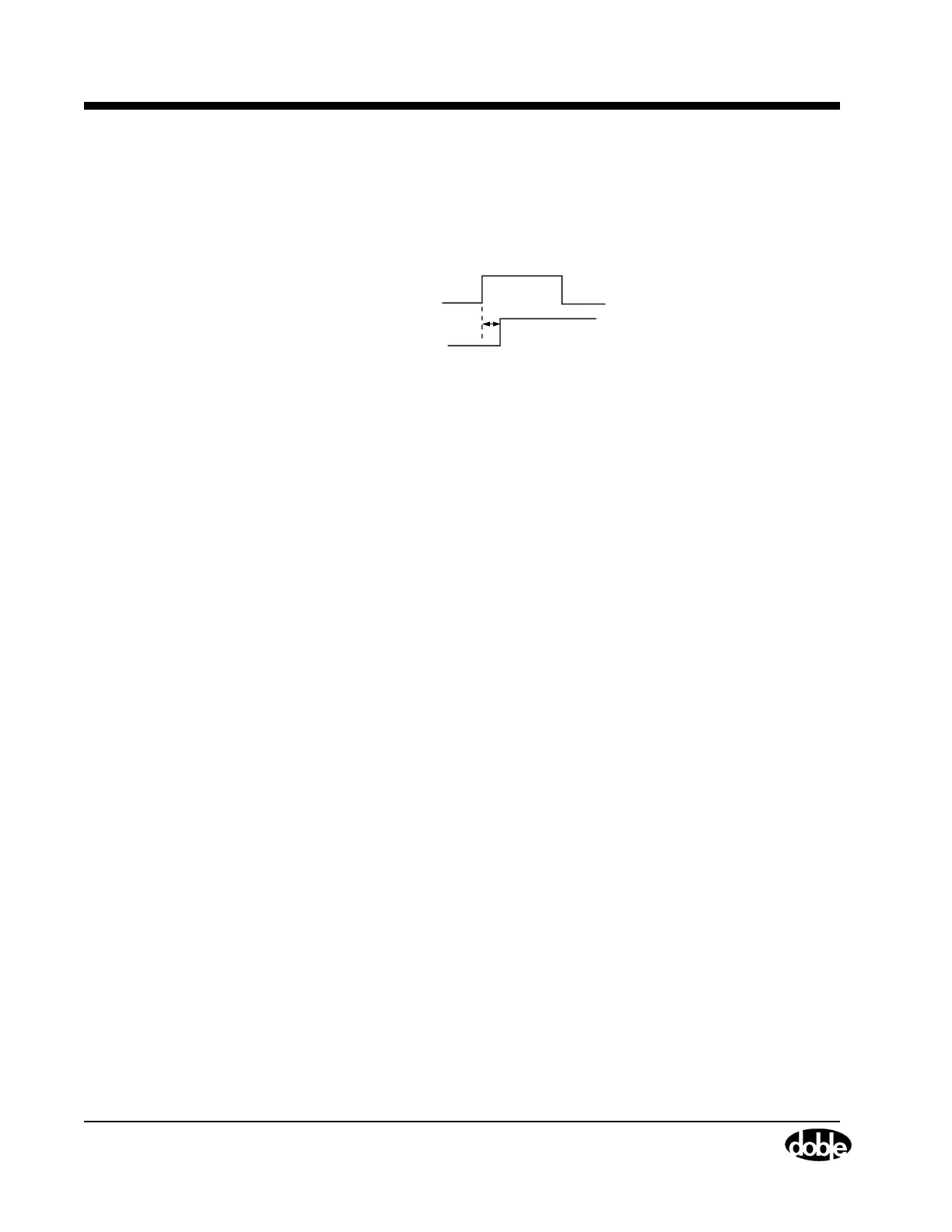

Figure 2.11 is a simplified representation of the test waveform generated

for the Trip Free test.

Figure 2.11 Trip Free Command Pulse

Command

Parameters

Close Pulse This time setting determines the duration of the

Close Pulse sent to operate the close circuit of the

circuit breaker.

Trip Free and Delay

These parameters determine when the Trip Pulse is

initiated:

Standing

Initiates .5 cycles (8.3 ms at 60 Hz) after the test

starts.

Delay

Initiates after the time entered in the Delay Length

field.

Contact 1 Make

Initiates when the TDR9000 senses that a contact

make has occurred on the first of the Main

Contacts.

Recording Length This setting determines the recording length and

implicitly sets the sampling rate at which the

recording is performed.

133 msecs

Trip Com mand

Close Command

Delay

Off

Main Page
