Trip/Close Module

This module enables all of the system’s Trip/Close test control

functionality, including:

•Trip (O)

• Close (C)

• Trip Free (C-O)

• Reclose (O-C)

•O-C-O

Trip/Close

Current Isolation

Option

The Trip/Close module can be outfitted with an optional internal current

isolation measurement capability for the Trip and Close control leads.

When this option is resident in the system, T/C Current appears below

the Trip/Close connector on the Virtual Front Panel.

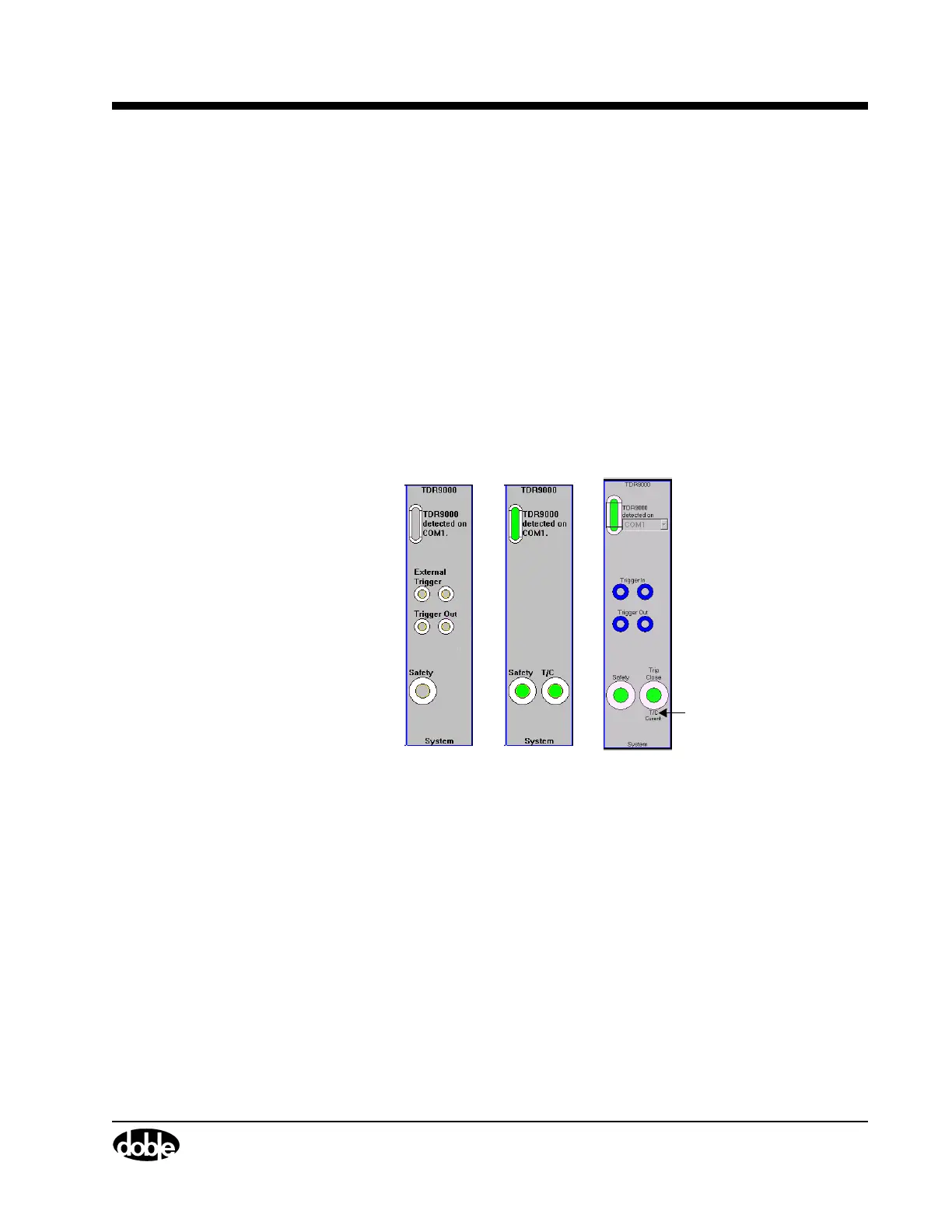

Figure 2.7 shows the available configurations for the System module.

Figure 2.7 System Module Configurations

T/C Current

Main Page
