OCB/Motion

OCB and Motion are independent functions that are packaged together

for convenience.

The OCB portion of this module measures:

• Main Contact timing of Dead Tank circuit breakers

• Pre-insertion resistor switch timing

• Ohmic value of pre-insertion resistors (optional)

The Motion channels measure the linear or rotary movement of up to six

TR3190, 3160 motion transducers. The software accommodates:

• User-defined zones of measurement for calculating average

velocities

• Indirect contact measurements on transducers via a Linear

Transfer Function scaled by user-defined inputs

• English or Metric units

Figure 2.4 shows the available configurations for the OCB/Motion

module.

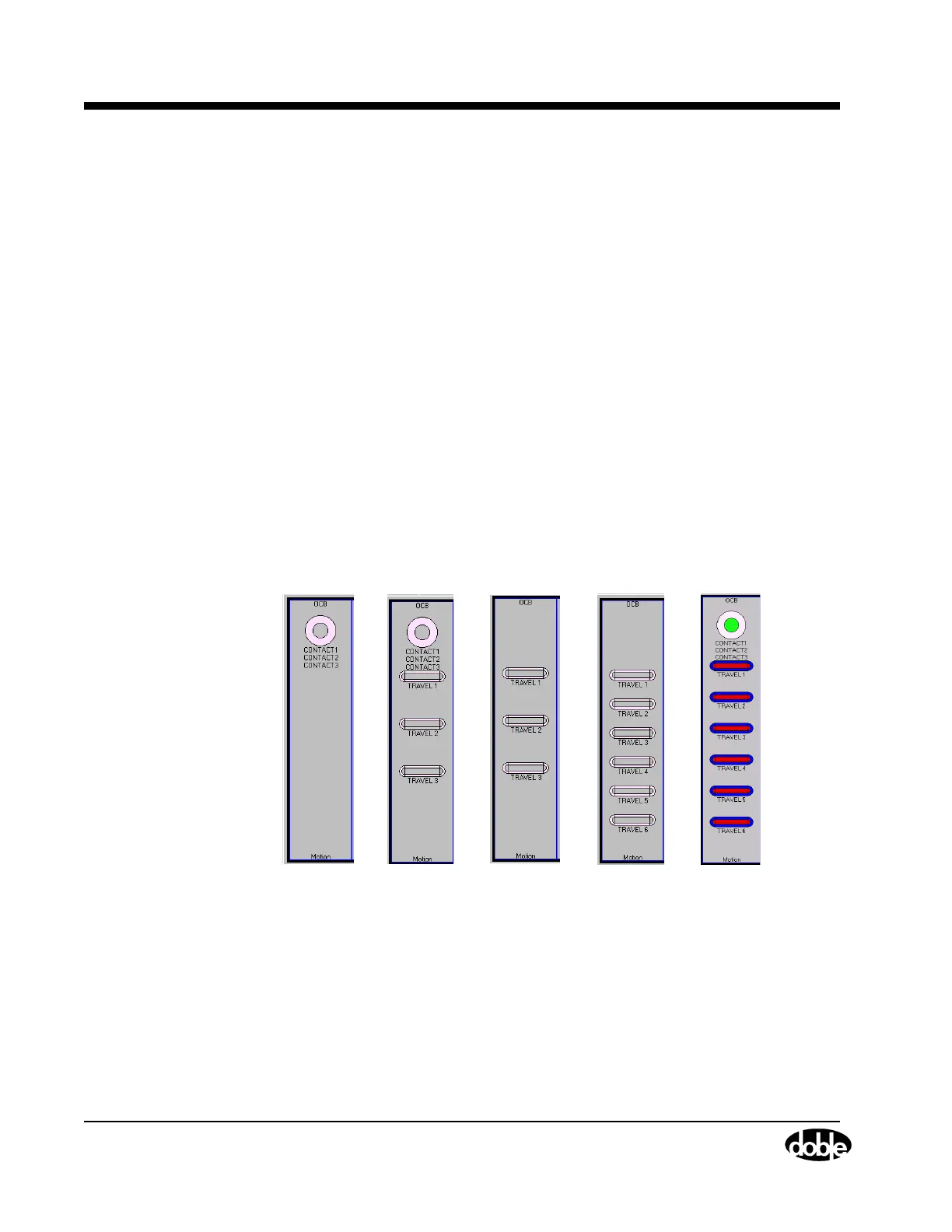

Figure 2.4 OCB/Motion Module Configurations
