TDR9000

™

Circuit Breaker Test System User’s Guide

72A-1898 Rev. A 11/01 4-77

Monday, November 26, 2001 1:09 pm

3. Click Continue.

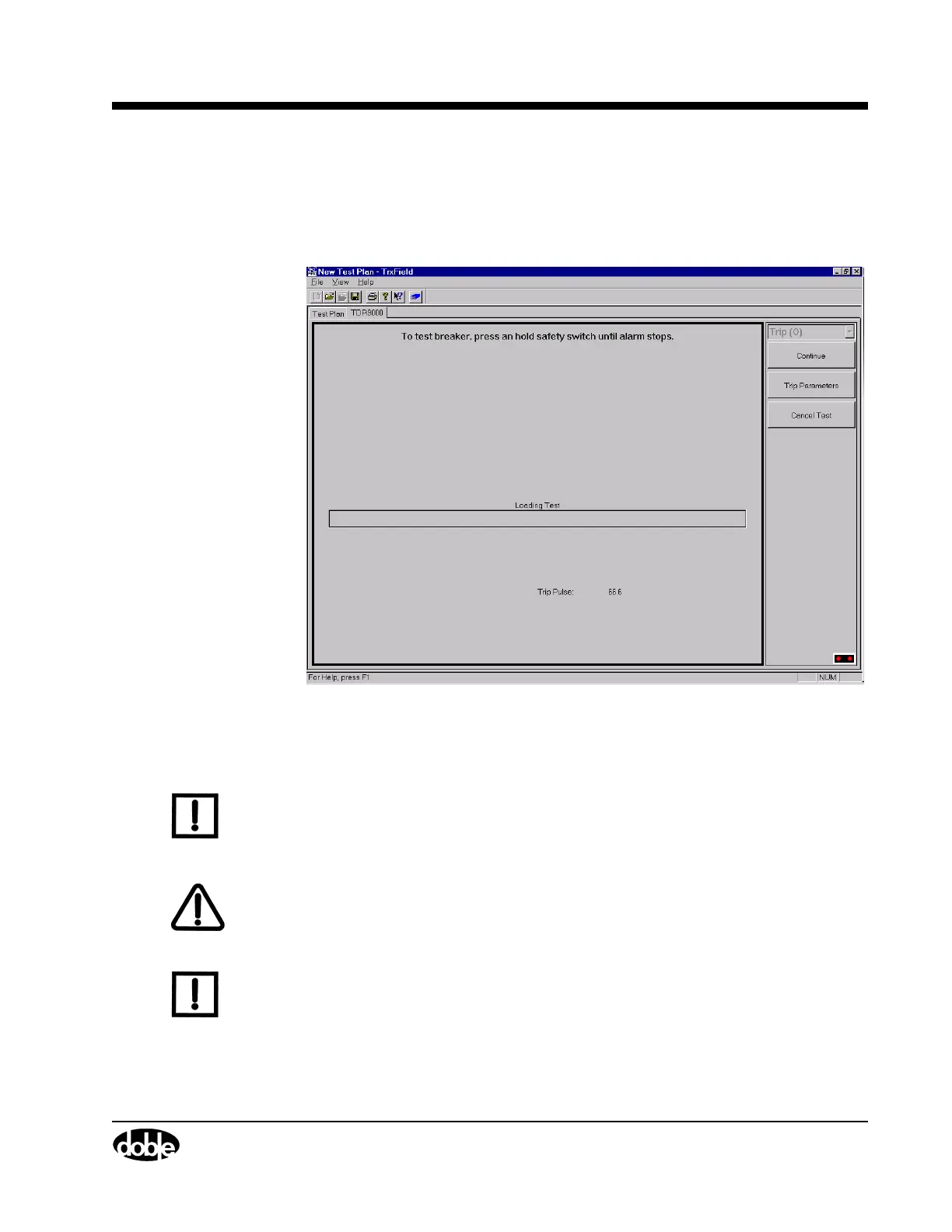

A status bar appears on the window (Figure 4.51) as the test data is

loaded.

Figure 4.51 Loading Test

Once the test data is loaded, an alarm sounds from the TDR9000.

OTE

For externally triggered tests, perform the action to activate the trigger

and skip step 4.

4. Press the button on the Safety Switch cable until the alarm ceases.

WARNING This is the last warning before circuit breaker operation, so make sure

all safety issues are in compliance.

OTE

For a Capacitance test, making sure all safety issues comply is a lengthy

process. The Loading Test status bar cycles a minimum of six times and

a maximum of eight times.
