Test Plan Items
The discussions that follow explain each Test Plan item and its effect on
the system.
Nameplate
Parameters

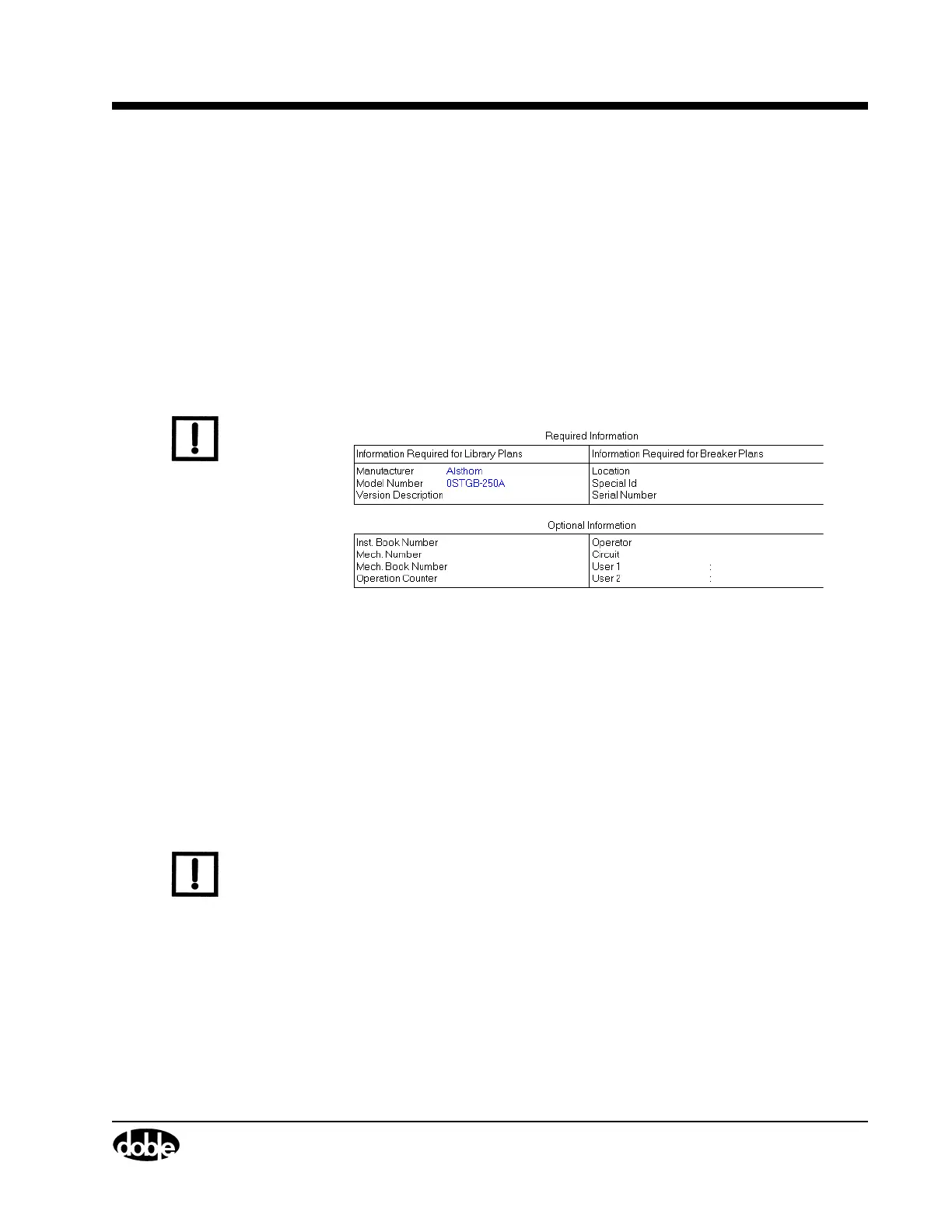

Figure A.35 shows the Nameplate portion of the Test Plan. There are two
areas:
• Required Information
• Optional Information
In the Required Information area, only the Model Number is required.
N
OTE
Doble recommends that all the Required parameters be entered.
Figure A.35 Nameplate Parameters
Required
Information
N
OTE
The location, model number and manufacturer lists are contained in the
Location.tab, ModelNumber.tab, and Man_Name.tab files in
c:\Program Files\Doble\TRXField directory and they can be edited
using any text editor.
Manufacturer This is selected from a pulldown list.
Model Number This is selected from a pulldown list.
Version Description A user-entered field.
Location This is selected from a pulldown list and is a
combination of the Manufacturer and Model
Number fields.
Special ID User-entered fields.
Serial Number
