This picklist is used to select the test type. Test types include:

•Trip (O)

• Close (C)

• Reclose (O-C)

• Trip Free (C-O)

•O-C-O

• First Trip (O)

• First Close (C)

•Slow Close (C)

• Continuity

• Capacitance

• Self-Diagnostics

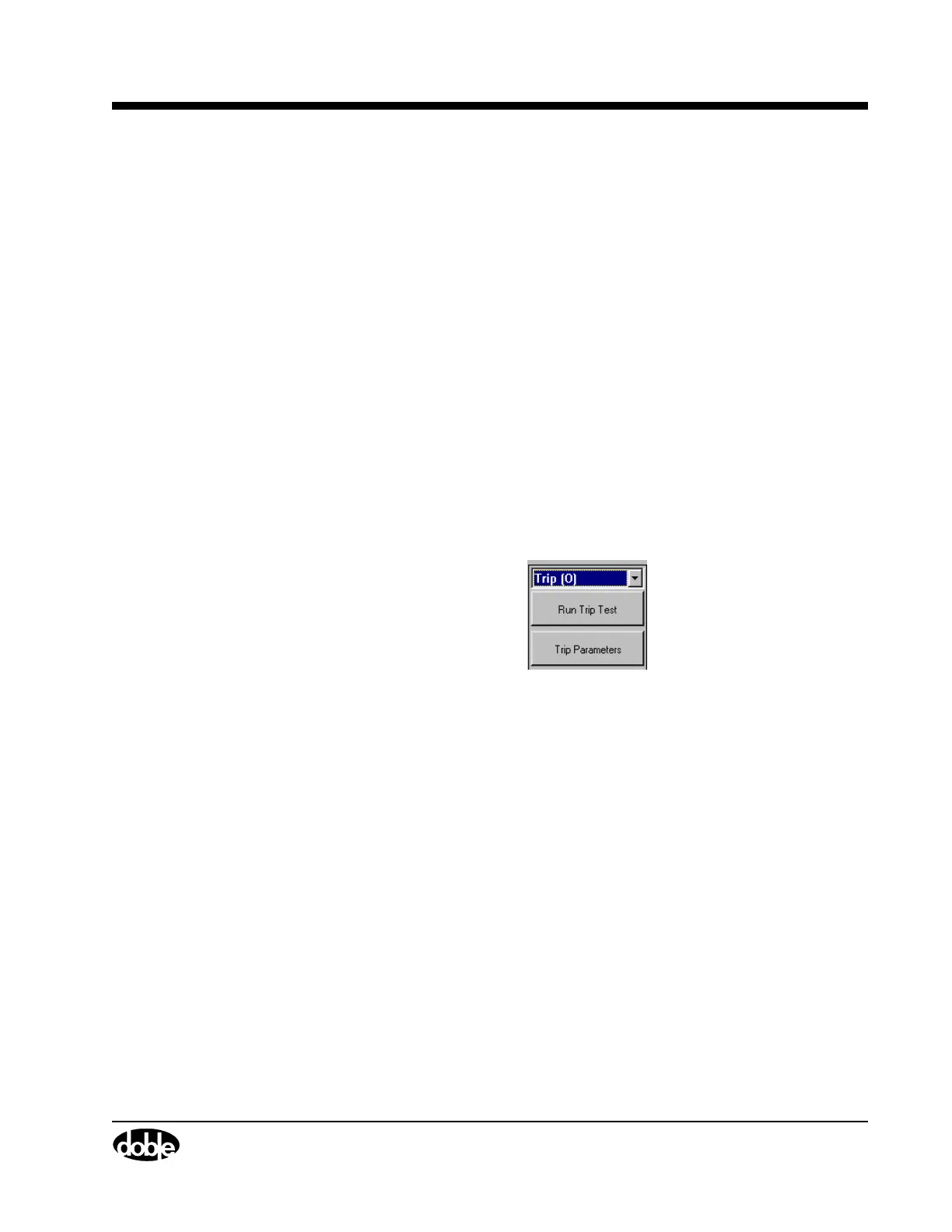

Once a test type (XXX) is selected, two operational buttons appear on the

Virtual Front Panel: Run XXX Test and XXX Parameters as shown in

Figure 4.34.
