Configuring Test Plans
4-56 72A-1898 Rev. A 11/01
Monday, November 26, 2001 1:09 pm
The following items are configurable:
Trip Current A scrollable picklist for selecting the Trip circuit
range. Choices include:
• 100 A
• 20 A
• 5 A
• 2 A
Close Current A scrollable picklist for selecting Close circuit
range. Choices include:
• 20 A
•5 A
•1 A
• 0.2 A
N
OTE
To maximize the resolution for all range selections, use the lowest
practical range for the expected measurement.
Selecting a Test
Typ e

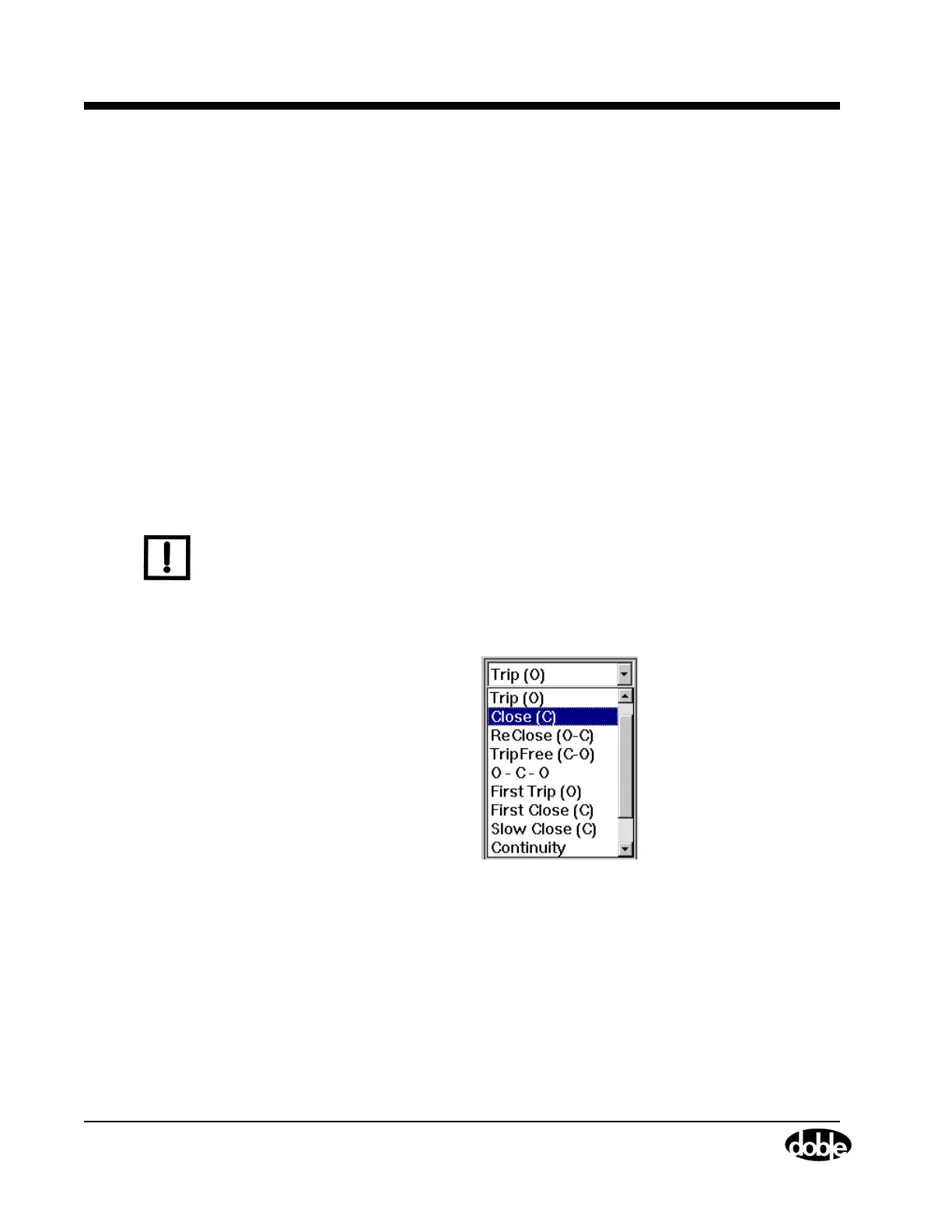

On the right side of the Virtual Front Panel is a scrollable picklist, as
shown in Figure 4.33.
Figure 4.33 Test Selection Picklist
