doble TDR9000 - Figure 4.52 Capacitance Testing Error

To Next Page

To Previous Page

Running a First Trip/Close Test: Special Considerations

4-78 72A-1898 Rev. A 11/01

Monday, November 26, 2001 1:09 pm

Capacitance Test Errors

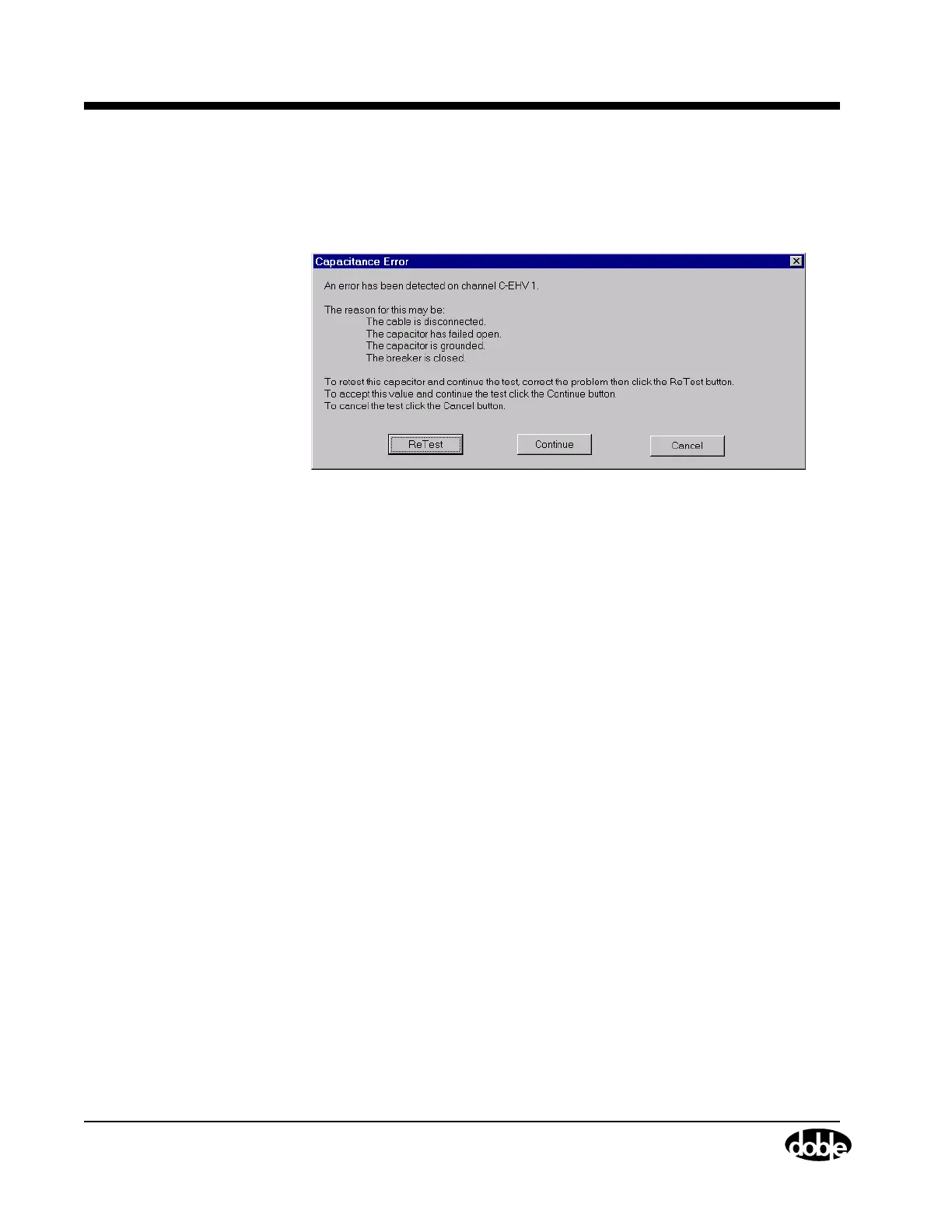

During a Capacitance test, a Capacitance Error dialog box may appear

(Figure 4.52).

Figure 4.52 Capacitance Testing Error

If this occurs, click one of the buttons:

• ReTest to start the test over after fixing the problem.

• Continue to accepts a potentially incorrect value and move to

testing the next contact

• Cancel to abort the test
