Table A.3 lists the voltages used when testing the Main Contacts.

If the command current range selected is too small for the actual current

applied, the current recorded in the masthead reads *Over*. The current

on the graphical output appears clipped. The performance of the test is

not affected (Figure A.75).

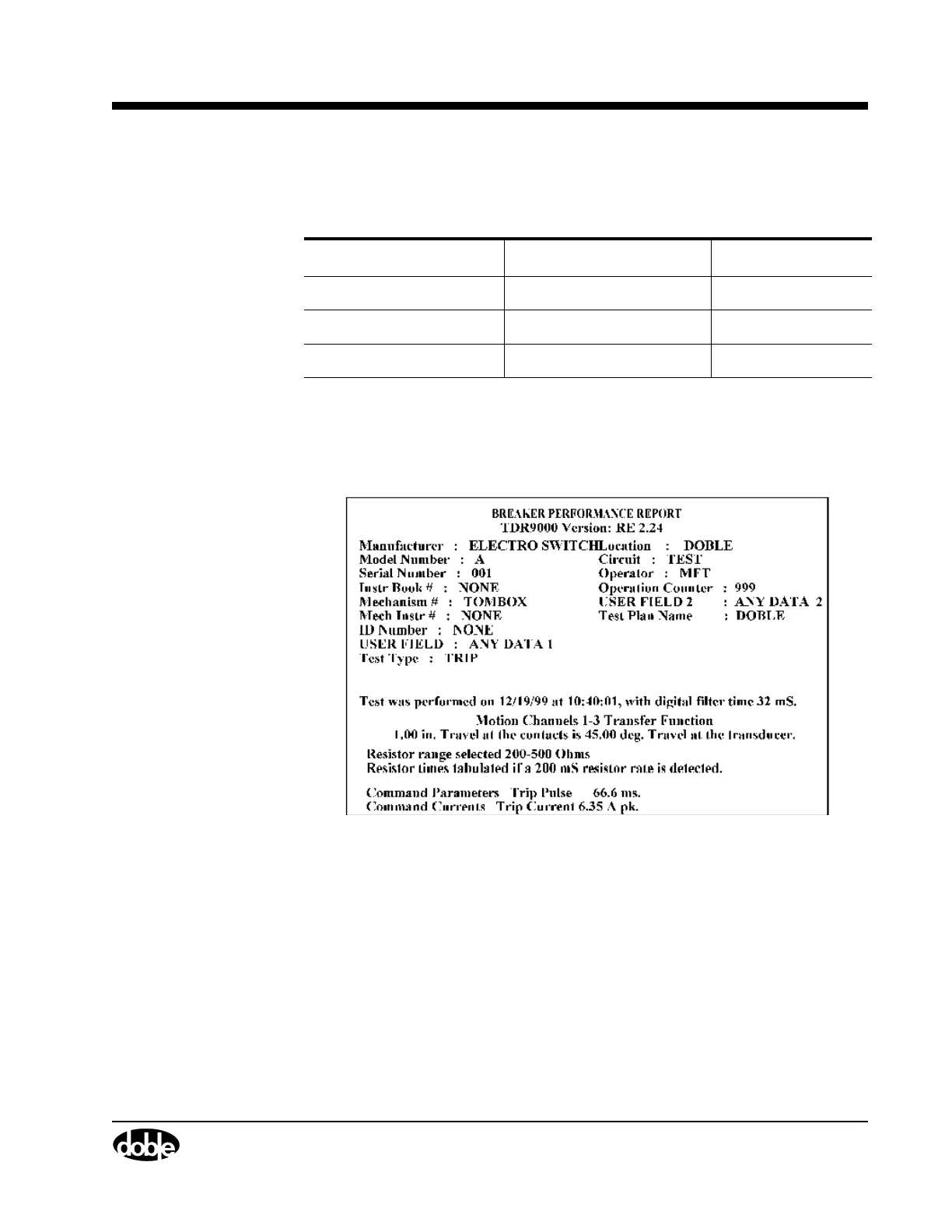

Figure A.75 Breaker Performance Report Header

Table A.3 Voltages Used When Testing the Main Contacts

ITEM TESTED RANGE SELECTION TEST VOLTAGE

Resistor, OCB 10 – 400 Ohms 7.5 V

Resistor, OCB 300 – 7,000 Ohms 48 V

All without resistors None 15 V
