If no failures are detected, the test ends with the Global Self Test
complete. If a failure is detected, the software moves on to the Local Self
Test (Figure B.5). An alarm sounds and, as with the Global Self Test, the
Safety Switch must be pressed within 60 seconds.

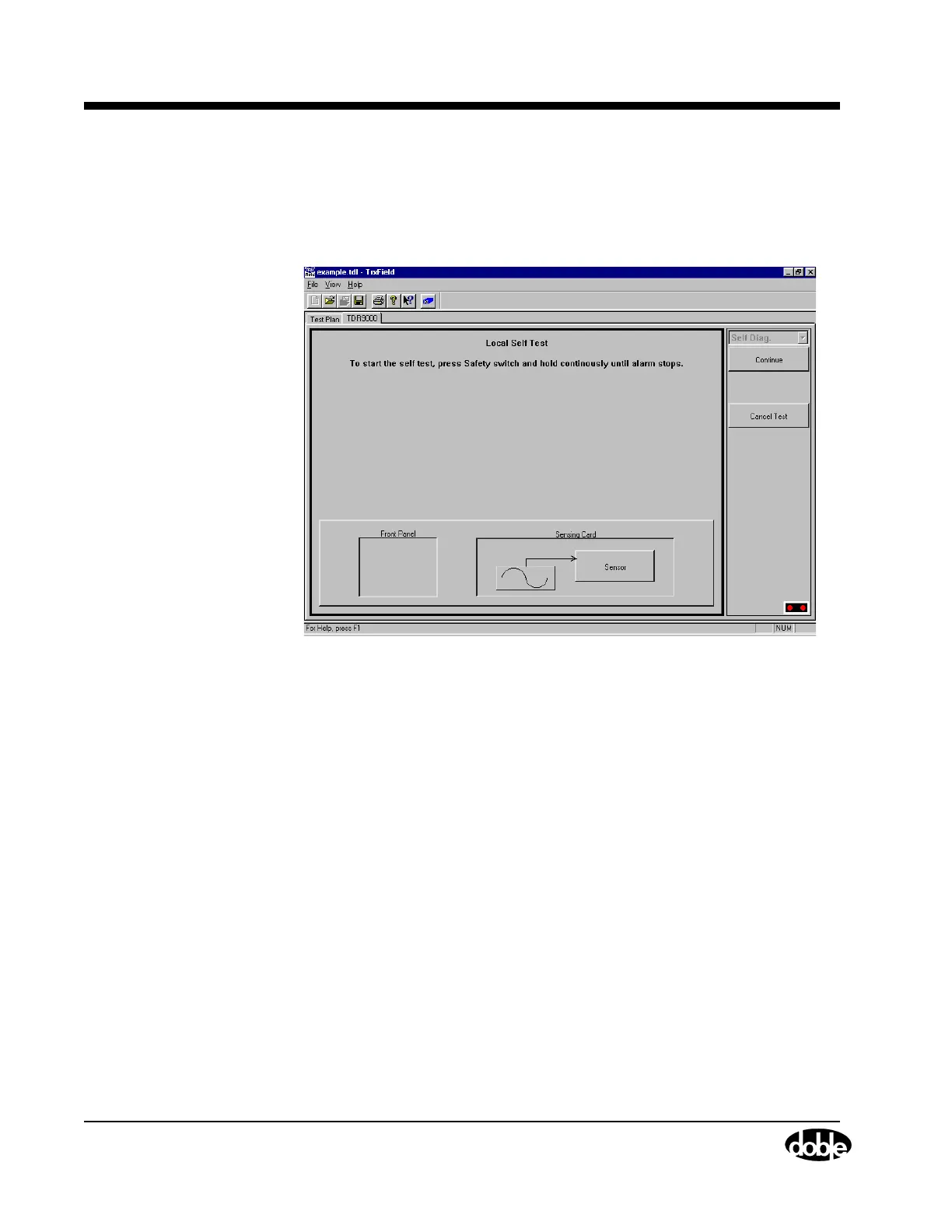

Figure B.5 Local Self Test
6. Press the Safety Switch until the alarm ceases.
Once this second part of the test begins, the window appears as
shown in Figure B.6. A status bar appears as the TDR9000 collects
data about the validity of source signals sent through the sensing
cards, the cards responsible for signal processing for all test types
during normal operation. This test requires several minutes to
complete, and is longer for fully populated Instruments.
