doble TDR9000 - Figure 4.49 Enable Safety Switch; Figure 4.50 Enter Breaker Information

To Next Page

To Previous Page

Running a First Trip/Close Test: Special Considerations

4-76 72A-1898 Rev. A 11/01

Monday, November 26, 2001 1:09 pm

To run the test:

1. Select a test type from the picklist on the upper right corner of the

window.

2. Click Run XXX Test where XXX designates the type of test.

The Virtual Front Panel then appears as shown in Figure 4.49. This

window displays the values of the configured command parameters

and allows for confirmation by the operator.

OTE

If the fields shown in Figure 4.50 have not been correctly filled in on the

Test Plan, the Enter Breaker Information window appears. This window

contains the fields constituting the minimal information required to

identify a specific breaker in the field. If Special ID is not used, enter

NONE.

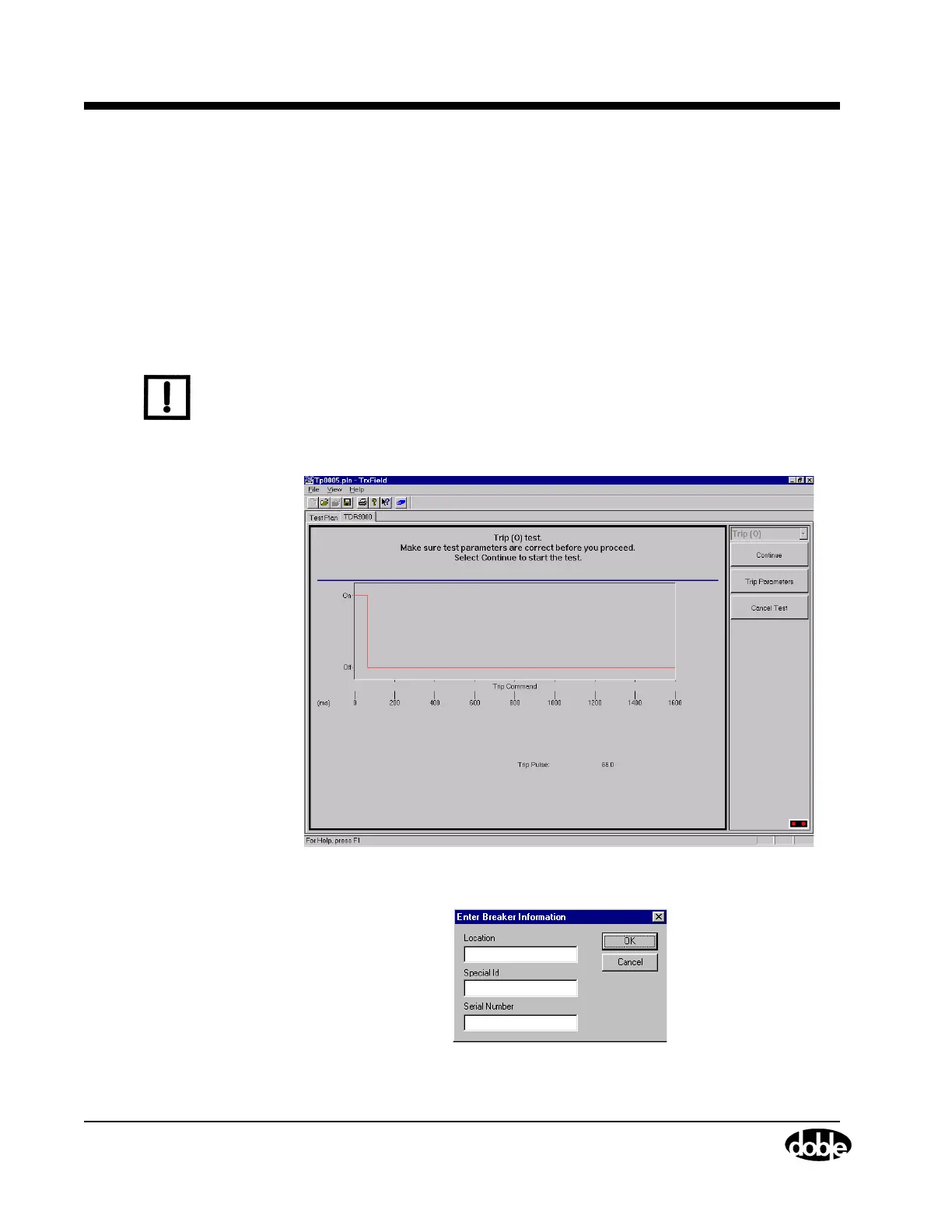

Figure 4.49 Enable Safety Switch

Figure 4.50 Enter Breaker Information
