Trip/Close

Module

The Trip/Close module has configuration options only when the

Trip/Close Current option is being used. The virtual System module

appears as shown in Figure 4.31 when this option is present.

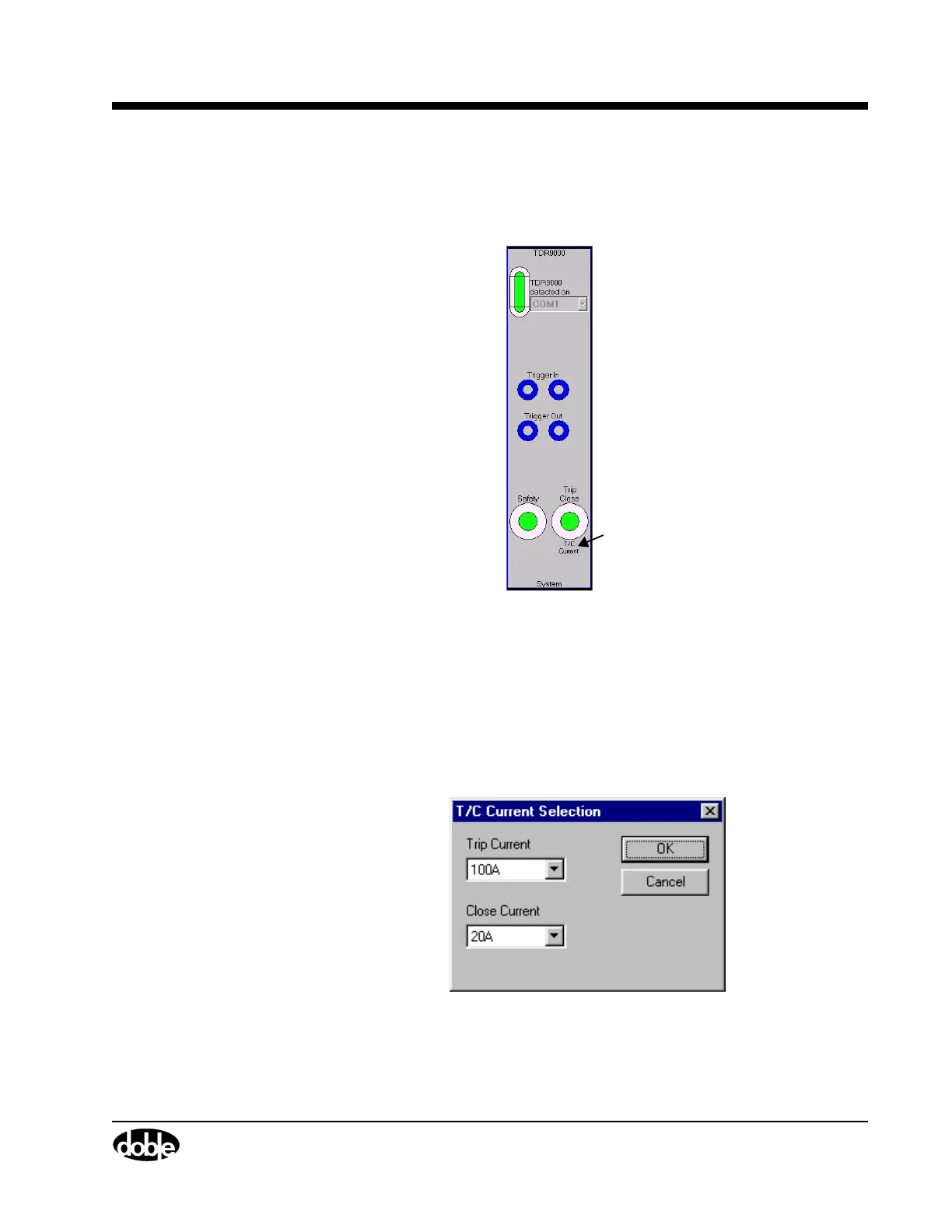

Figure 4.31 Trip/Close with Trip/Close Current Option

Click the virtual Trip Close connector shown in Figure 4.31 to access

the T/C Current Selection window shown in Figure 4.32. This window

configures the current range expected on the Trip or Close control circuit.

For instance, when 100 Amps is selected in the Trip Current field, the

system reads the circuit’s shunt voltage, and converts it into a current

reading, in the range of

100 A.

Figure 4.32 T/C Current Selection

T/C Current

Indicator

Main Page
