Trip/Close Module
3-24 72A-1898 Rev. A 11/01
Monday, November 26, 2001 1:09 pm
When included with the TDR9000, the Trip/Close module normally
connects across the circuit breaker manual Trip or Close switch, as
shown in Figure 3.16.

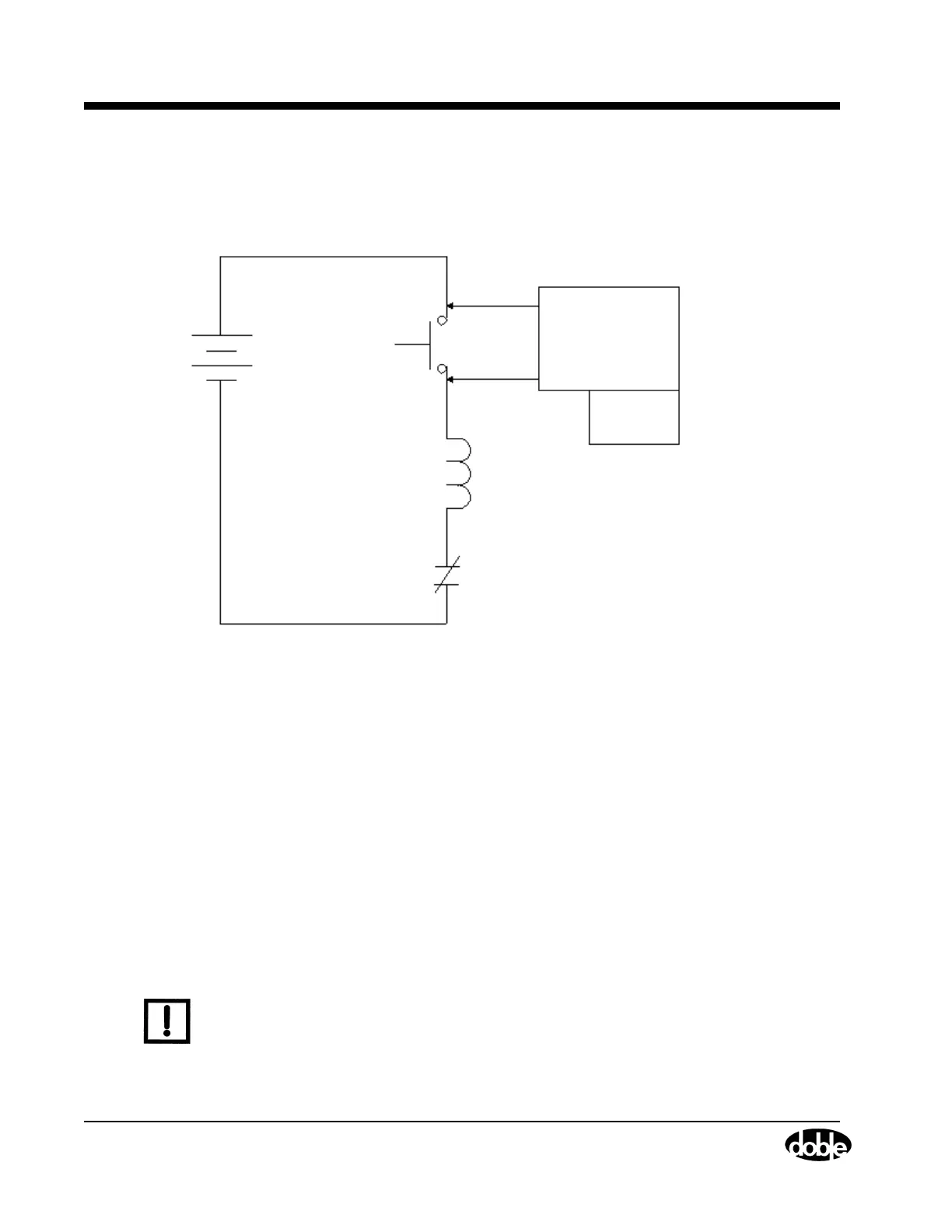

Figure 3.16 Trip/Close Module Application
Trip/Close Current
The Trip/Close module can be outfitted with an optional internal current
measurement for the Trip and Close circuits. When this option is resident
on the system, T/C Current appears below the Trip/Close virtual
connector.
This option measures the Trip and Close circuit current during a
Trip/Close test by:
• Shunting the Trip and Close currents through the Trip/Close
Current component of the Trip/Close module
• Converting the measured voltage to a digital reading
• Sending the result to the Virtual Front Panel for display on the
Graphics tab as a current waveform and on the Tabulation tab as
a peak current value
N
OTE
If the correct Close currents do not appear, refer to the
Doble Application Note: ”AN7: Monitoring Closing Coil Current with
the TDR9000™ Current Shunt in the Close Circuit” on page I-27
of this guide.
Trip/Close
Trip Coil
Auxiliary Contact
Station
Manual
Trip/Close
+
+ DC
Battery
Module
Current Option
Switch
