doble TDR9000 - Figure A.94 Resistor Tabulation Qualifier Operation

To Next Page

To Previous Page

TDR9000

™

Circuit Breaker Test System User’s Guide

72A-1898 Rev. A 11/01 A-81

Monday, November 26, 2001 1:09 pm

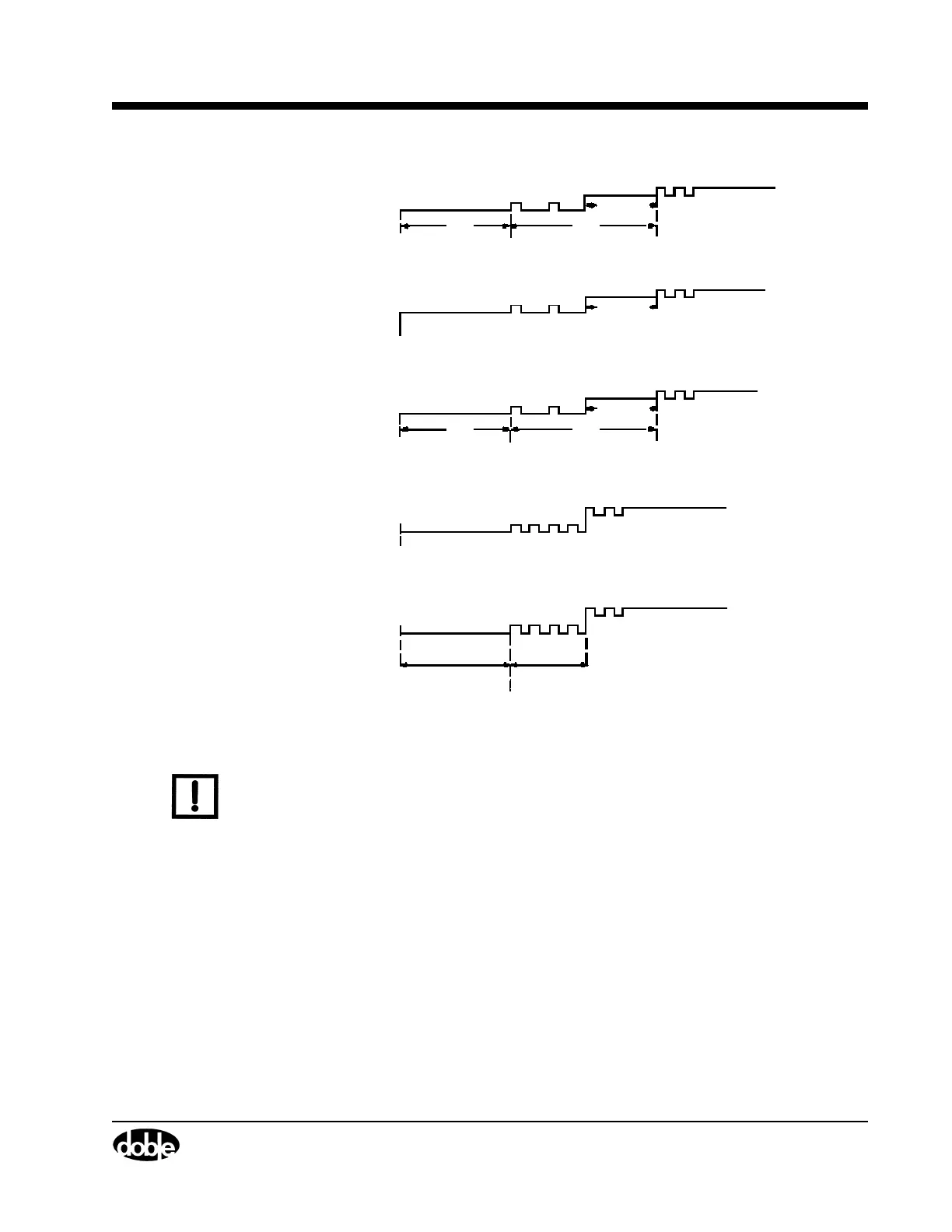

Figure A.94 Resistor Tabulation Qualifier Operation – Close Test

OTE

The Test Initiation option tabulates Resistor Switch timing from the

beginning of the test (t = 0).

The Main option tabulates resistor switch timing relative to the closing

(first strike) or opening (last break) of the Main Contact.

For further information, refer to ”Resistor Switch Timing – Open”

on page A-75 and ”Resistor Switch Timing – Close” on page A-77.

Select 100 Μs

Select 200

Μs

Select bounce

Select 100

Μs or 200 Μs

Select bounce

115

Μs

115 Μs

115

Μs
