A-74 72A-1898 Rev. A 11/01

Monday, November 26, 2001 1:09 pm

Main Contact

Timing: Trip-Free

Dwell – Reclose

Dead

Trip-Free Dwell parameters include:

Trip-Free Dwell min The minimum time the Main Contacts may be

CLOSED during a Trip-Free test.

Trip-Free Dwell max The maximum time the Main Contacts may be

CLOSED during a Trip-Free test.

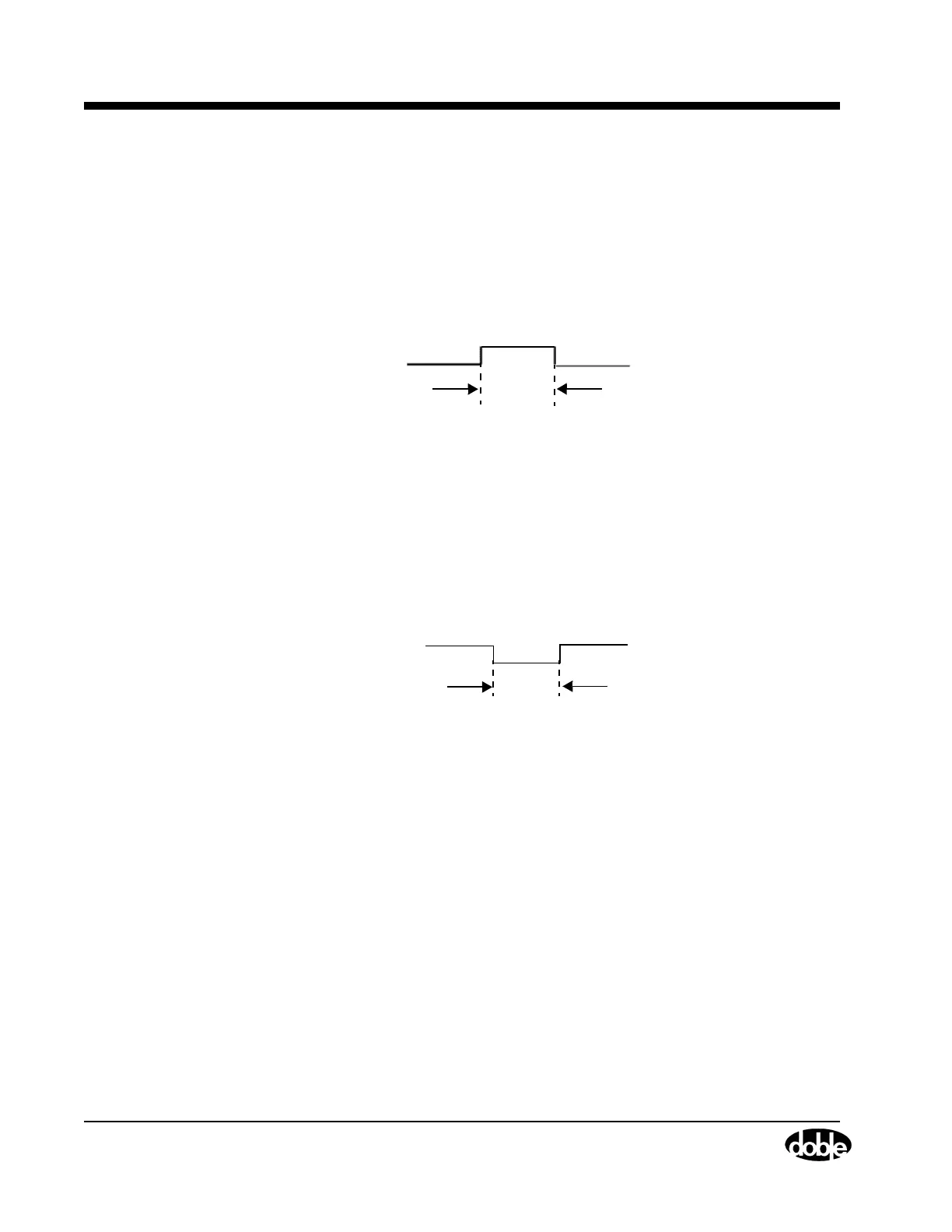

Figure A.86 shows the Trip-Free Dwell Time.

Figure A.86 Trip-Free Dwell Time

Reclose-Dead Time parameters include:

Reclose Dead min The minimum time the Main Contacts are OPEN

during a Reclose test.

Reclose Dead max The maximum time the Main Contacts are OPEN

during a Reclose test.

Figure A.87 shows the Reclose Dead Time.

Figure A.87 Reclose Dead Time

Dwell Time

Reclose Dead Time

Open
