Operating manual
CNC 8055
CNC 8055i
UTILITIES
8.
·T· MODEL
SOFT: V02.2X
·145·
Accessing the programs without using the explorer
Attributes
They show information about the source and usefulness of each program. The attributes are defined
in this operating mode by means of the "Protections" option as described later on.
* The program is running, either because it is the main program or because it contains a
subroutine which has been called upon from that program or from another subroutine.
O The program was created by the machine manufacturer (OEM).
H The program is hidden and cannot be displayed in any directory.
However, a hidden program may be deleted or modified if its number is known; therefore,
it is recommended to remove the modifiable attribute (M) in order to prevent the operator
from changing or deleting that program.
M The program may be modified. In other words, it may be edited, copied, etc.
If a program does not have this attribute, the operator cannot see or modify its contents.
X Indicates that the program may be executed.
A program not having this attribute cannot be executed by the operator.
When showing the attributes of each program, it will only show the letters of the fields that are
selected, and it will show the character "-" when they're not.
Example:
O - -X Indicates that the program was created by the manufacturer, it will be displayed in the
directory (not hidden), it cannot be modified, but it may be executed.

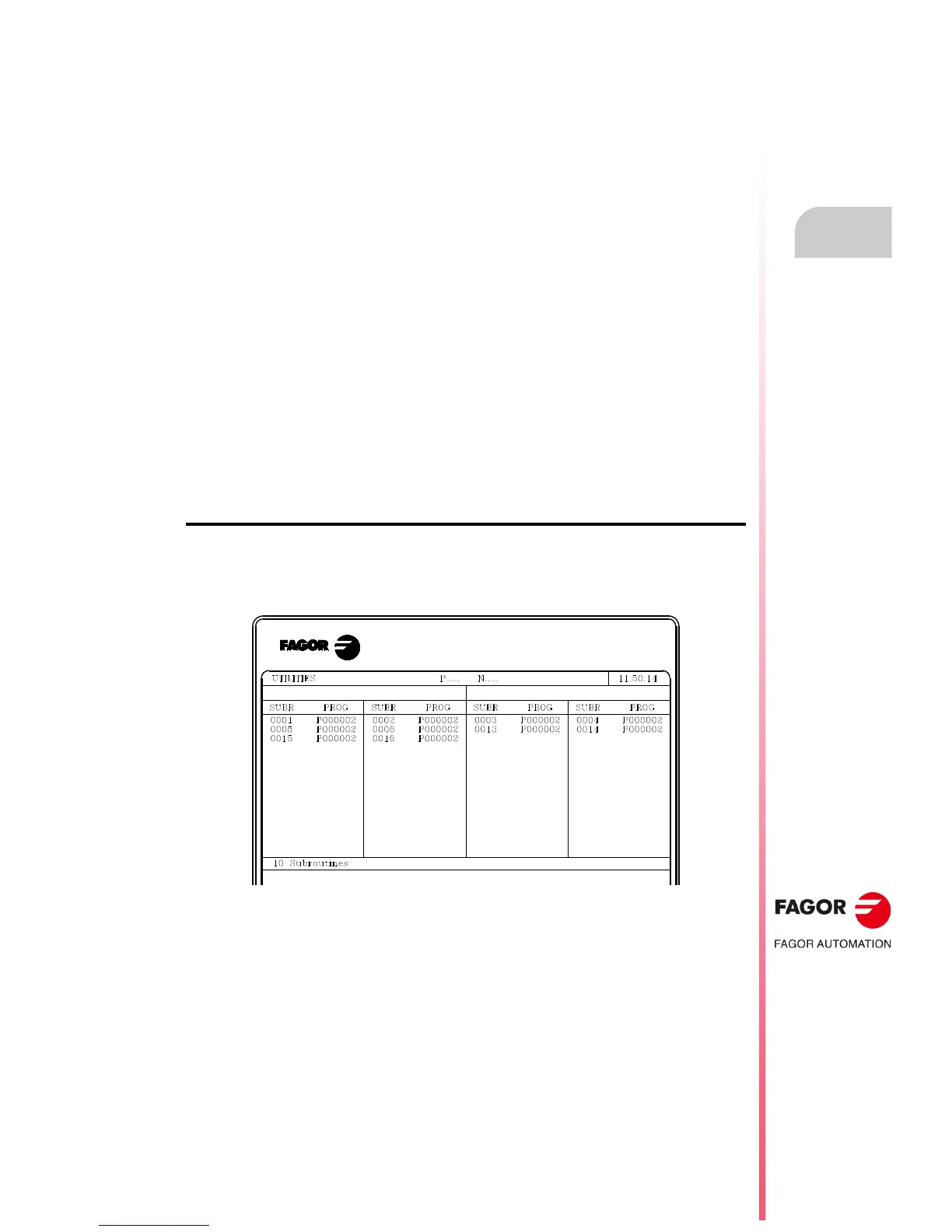

Subroutine directory
It lists all the subroutines defined in the part programs of the CNC ordered from the smallest one
to the largest one. Also, next to the subroutines, it displays the number of the program where it has
been defined.
If the program containing the subroutine has the "hidden" attribute assigned to it, that program
number will appear as P??????.
