·160·
Operating manual
CNC 8055
CNC 8055i
9.
STATUS
·T· MODEL
SOFT: V02.2X
CNC
Backup

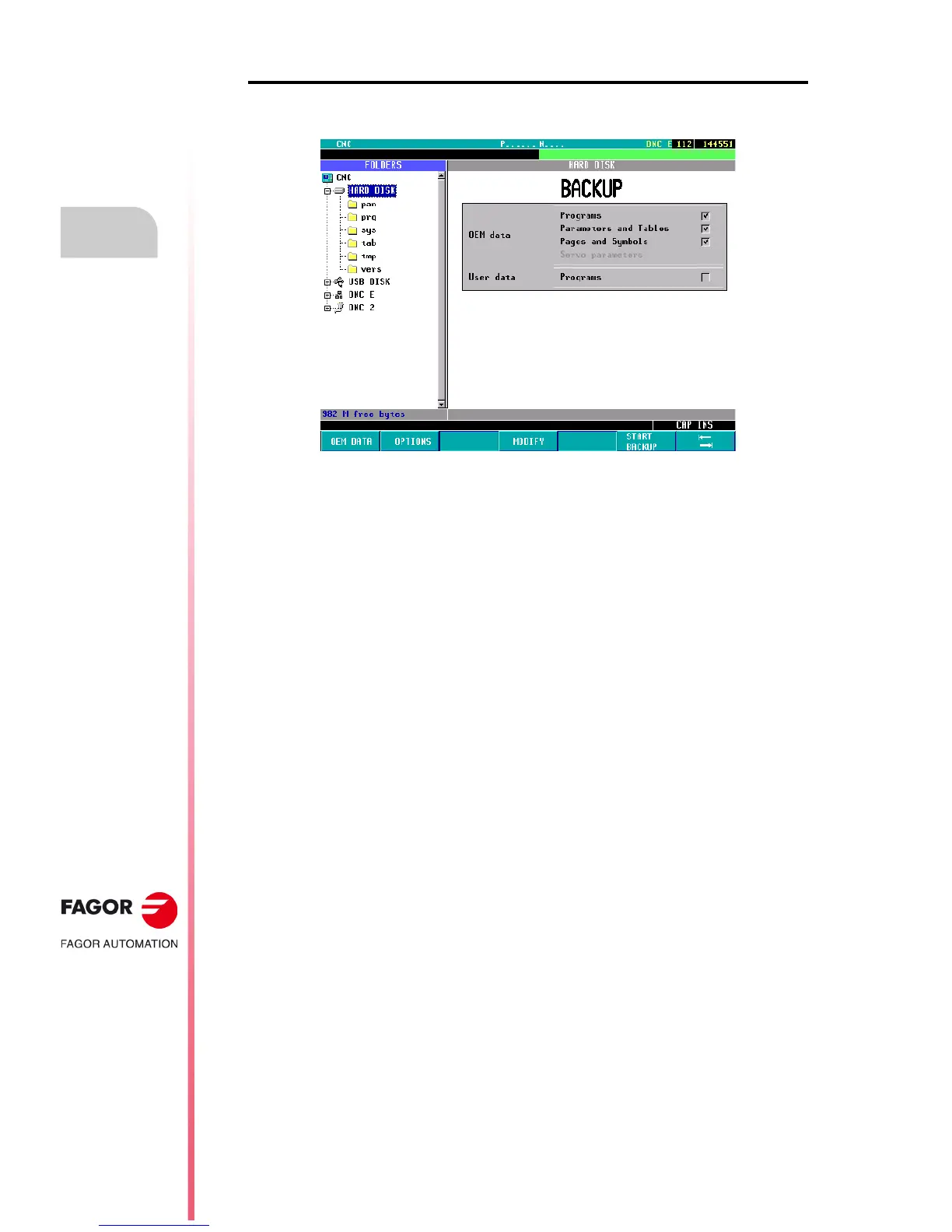

Backup is carried out using the <BEGIN BACKUP> softkey.
Pressing this softkey makes a safety copy (backup) of the data contained in the indicated folder.
The data is saved in the selected file.
Several backups may be done in different folders in the same unit (Hard disk, USB disk, etc.).
When doing a Backup, each file goes to its corresponding folder (PRG, TAB or PAN). If these folders
are missing, they will be created.
Backup is not possible in a subfolder PRG, TAB or PAN, only the folder containing these subfolders
may be selected.
When doing a Backup, the data is copied in the following devices:
• Screens: from the hard disk (KeyCF).
• Drive parameters: from CAN / SERCOS drives.
• Rest of the CNC files: from RAM memory.
