116

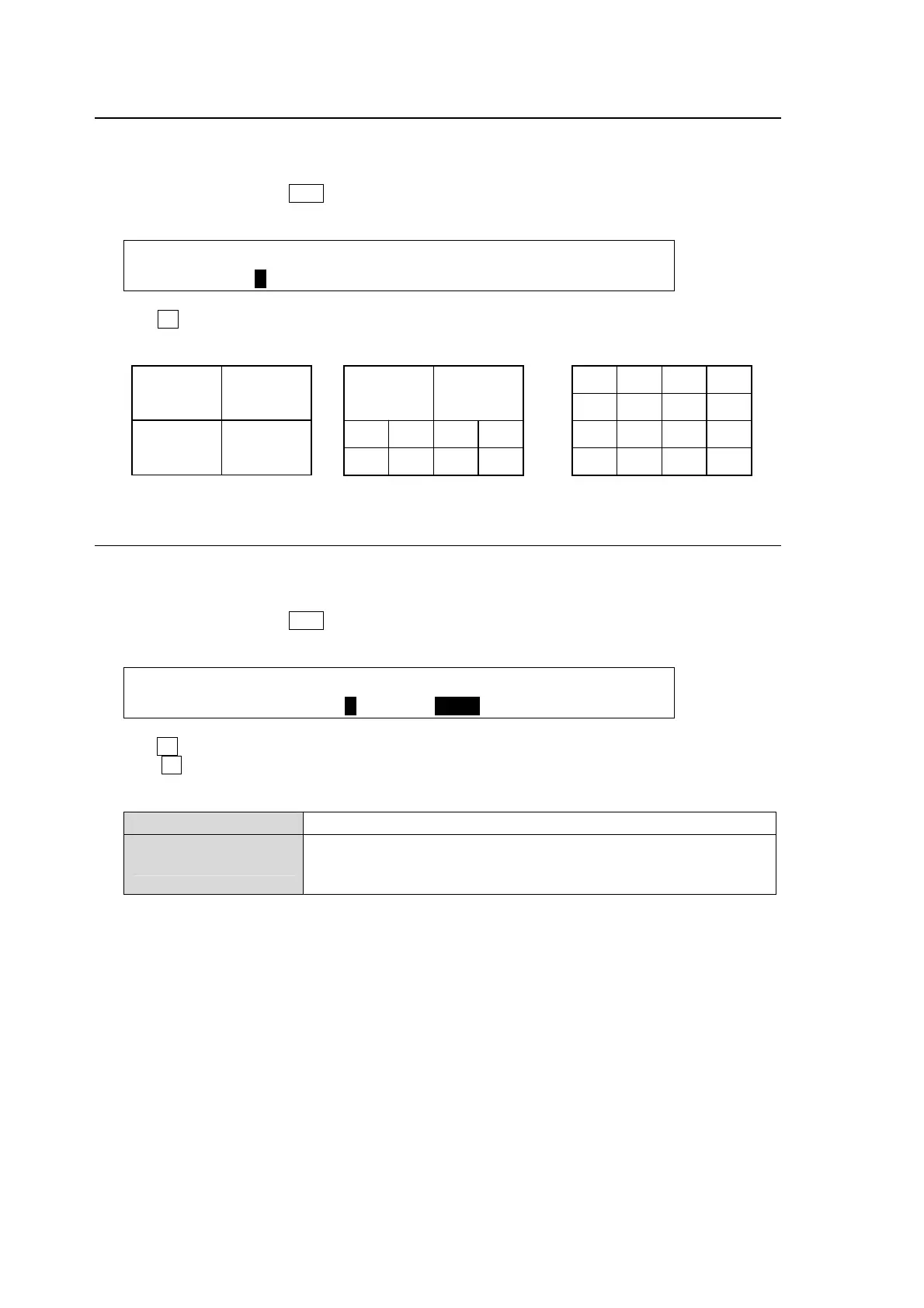

16-2. Selecting the Split-screen Type
The type of split-screen to be used can be selected in the [SETUP-OUTPUT-MV1] menu. There
are three different types.
(1) Quickly press twice the MV1 button in the KEY/AUX block to display the [SETUP- OUTPUT-
MV1] menu.
OUTPUT : DIV :SCREEN :SIGNAL : CHARA : 1/3
MV1 : =4 : =1 : =IN01 : = OFF :
(2) Turn F1 to select the type from 4,10 or 16-way. (See the split screen images with channel
numbers below.)
16-3. Selecting Video for Each Split Area
This section shows how to select a video source for each split area in the multiviewer screen.
This is done in the [SETUP-OUTPUT-MV1] menu.
(1) Quickly press twice the MV1 button in the KEY/AUX block to display the [SETUP- OUTPUT-
MV1] menu.
OUTPUT : DIV :SCREEN :SIGNAL : CHARA : 1/3
MV1 : =4 : =1 : =IN01 : = OFF :
(2) Turn F2 to select a channel number (split area) of the split screen under the SCREEN item.
(3) Turn F3 to select video displayed on the split area. The following video sources are
selectable.
Input images IN01 - IN24
Internal bus images
BLK(BLACK), STL1 - STL4, MATT1, MATT2, CLBR(Color bar),
M/E PGM, M/E PREV, M/E CLN,
PGM, PREV, CLN, AUX1 - AUX8
(4) Repeat (2) and (3) to assign images to the multiviewer channels.
0201
0605
04 03
08 07
1009
1413
12 11
16 15
01
0403
0807
0605
1009
02
01
02
03
04
