FOR-A HVS-350HS - KEY1 Transition

Appendix 3 - 18

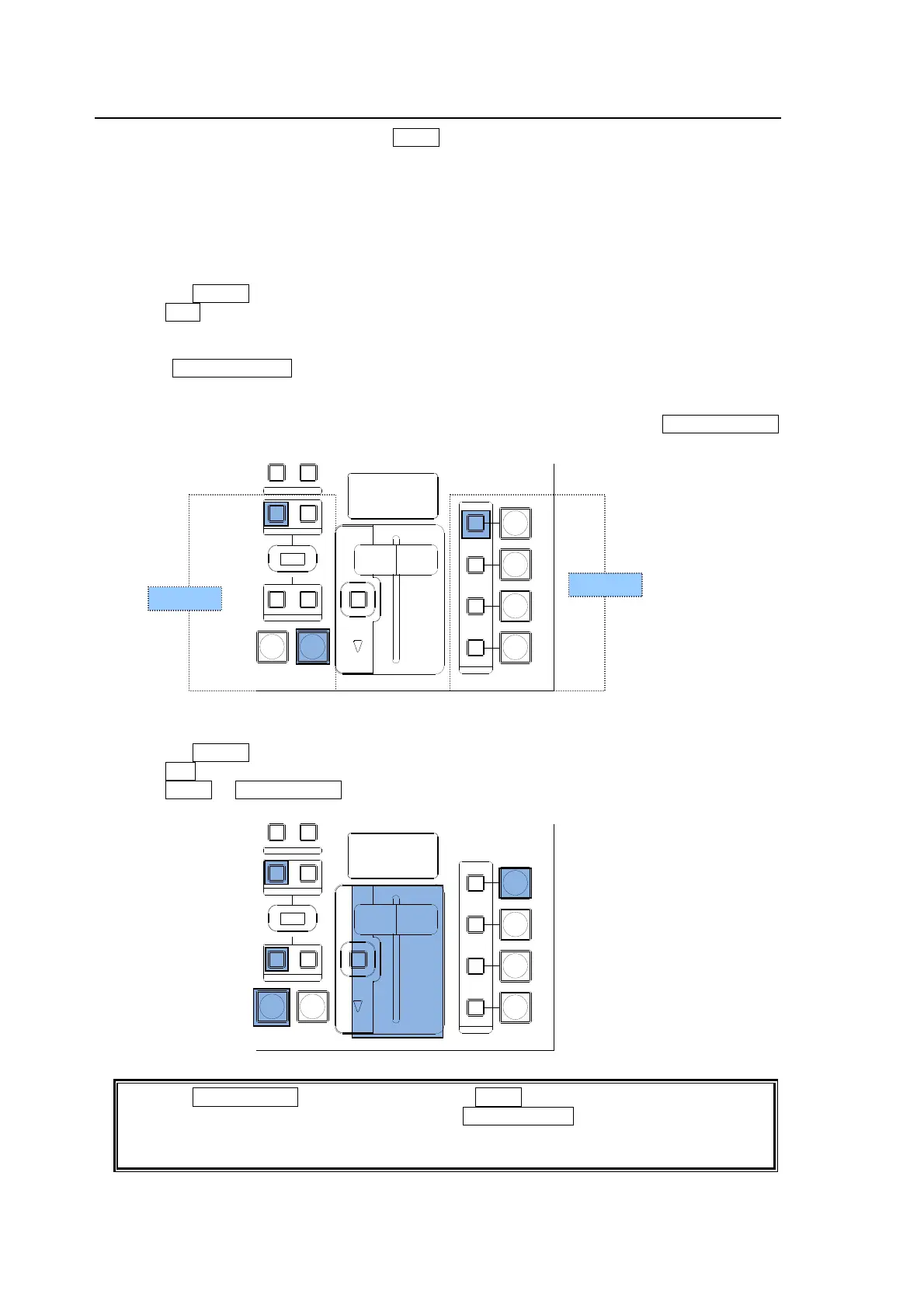

6-5. KEY1 Transition
When controlling the M/E bus, both the AUTO button and fader lever can be used for KEY1
transitions.
(1) Set up a key for KEY1.
(2) Perform transitions for KEY1.
 CUT Transitions
<Method 1>
(1) Press the KEYER button in the NEXT TRANSITION block.
(2) Press CUT to perform the CUT transition.
<Method 2>
Press the KEYER ON AIR button to perform the CUT transition. When the button is pressed,
KEY1 will be displayed on the M/E PGM screen. When the button is pressed again, KEY1 will be
erased from the screen.
See section 6-7. "IN/OUT Effects for PinP, KEY and DSK" for details about the KEYER ON AIR
button.
 MIX Transitions
(1) Press the KEYER button in the NEXT TRANSITION block.
(2) Press MIX in the TRANSITION TYPE block.
(3) Press AUTO or KEYER AUTO, or move the fader lever to perform the transition.
Note that KEYER AUTO acts in the same way as AUTO, if KEYER is selected in the NEXT
TRANSITION block. For example, pressing KEYER AUTO performs the KEY1 MIX
transitions if the MIX type is selected or KEY1 pattern transitions if the WIPE type is
selected.
AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
NOR/ REVREV
BKGD
WIPEMIX
KEYER
FADER LIMIT
ON AIR
DIRECTION
NEXT TRANSITION
PATTERN /RATE
TRANSITION TYPE
Method 1
Method 2
AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
NOR/ REVREV
BKGD
WIPEMIX
KEYER
FADER LIMIT
ON AIR
DIRECTION
NEXT TRANSITION
PATTERN /RATE
TRANSITION TYPE
