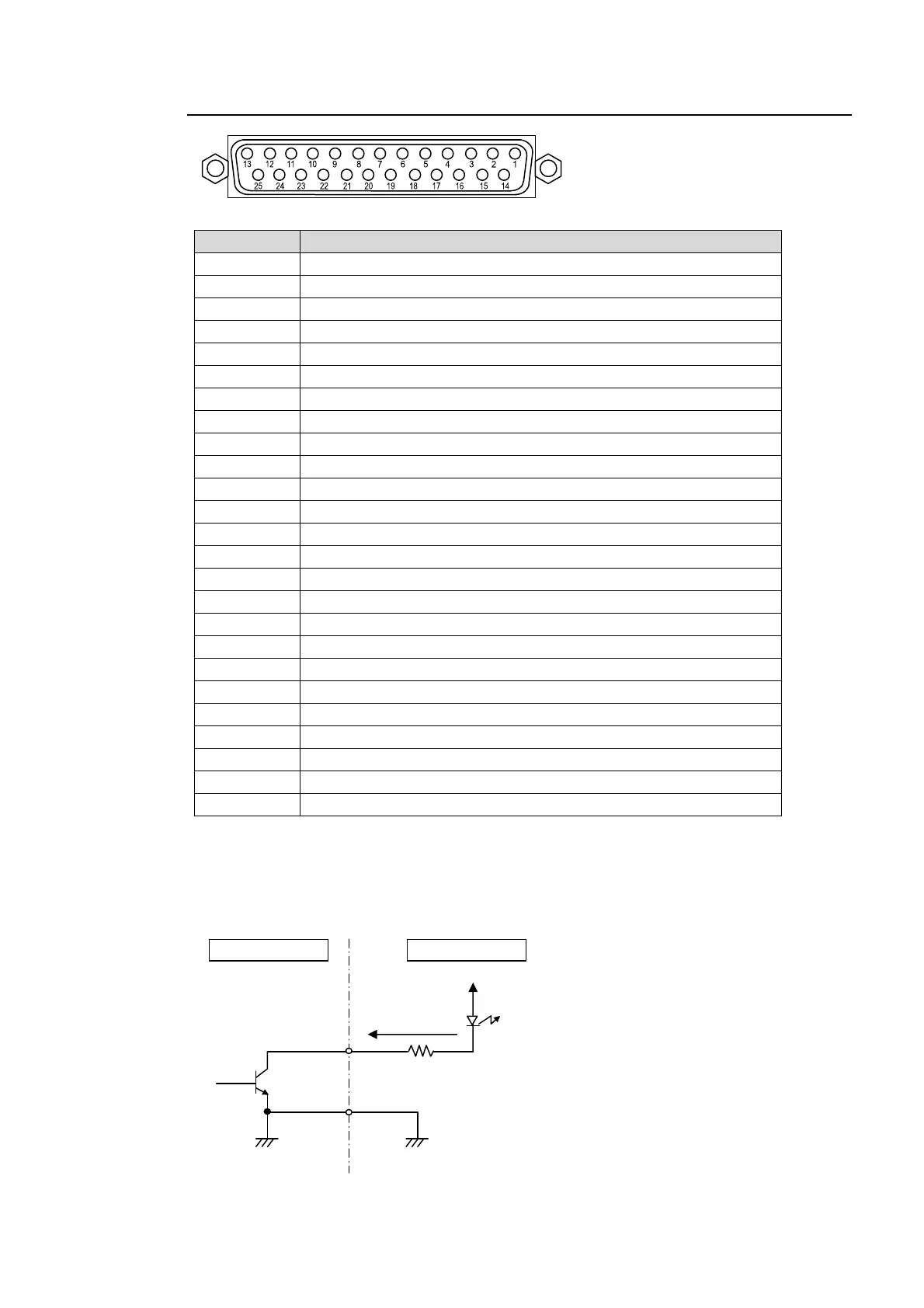

2-4-4. GPI/TALLY OUT Connector
Pin Assignment Table
Pin No. Description
1 RED TALLY-IN01 (default setting)
2 RED TALLY-IN02 (default setting)
3 RED TALLY-IN03 (default setting)
4 RED TALLY-IN04 (default setting)
5 RED TALLY-IN05 (default setting)
6 RED TALLY-IN06 (default setting)
7 RED TALLY-IN07 (default setting)
8 RED TALLY-IN08 (default setting)
9 RED TALLY-IN09 (default setting)
10 RED TALLY-IN10 (default setting)
11 RED TALLY-IN11 (default setting)
12 RED TALLY-IN12 (default setting)
13 RED TALLY-IN13 (default setting)
14 RED TALLY-IN14 (default setting)
15 RED TALLY-IN15 (default setting)
16 RED TALLY-IN16 (default setting)
17 RED TALLY-IN17 (default setting)
18 RED TALLY-IN18 (default setting)
19 RED TALLY-IN19 (default setting)
20 RED TALLY-IN20 (default setting)
21 Frame ground
22 Frame ground
23 Frame ground
24 Frame ground
25 +5V output (MAX 0.5A)
The pin assignments shown above are the factory default assignments. Pin
assignments can be changed via operational menus. See section 23-1-2 "GPI OUT"
and 23-2-2 "Tally Output Settings (GPI/TALLY OUT)".
GPI OUT/ TALLY Out Circuit
External Device
Max voltage: 40V
HVS-350HS
Max load current:
100mA
25-pin D-sub (female)
with inch screws
