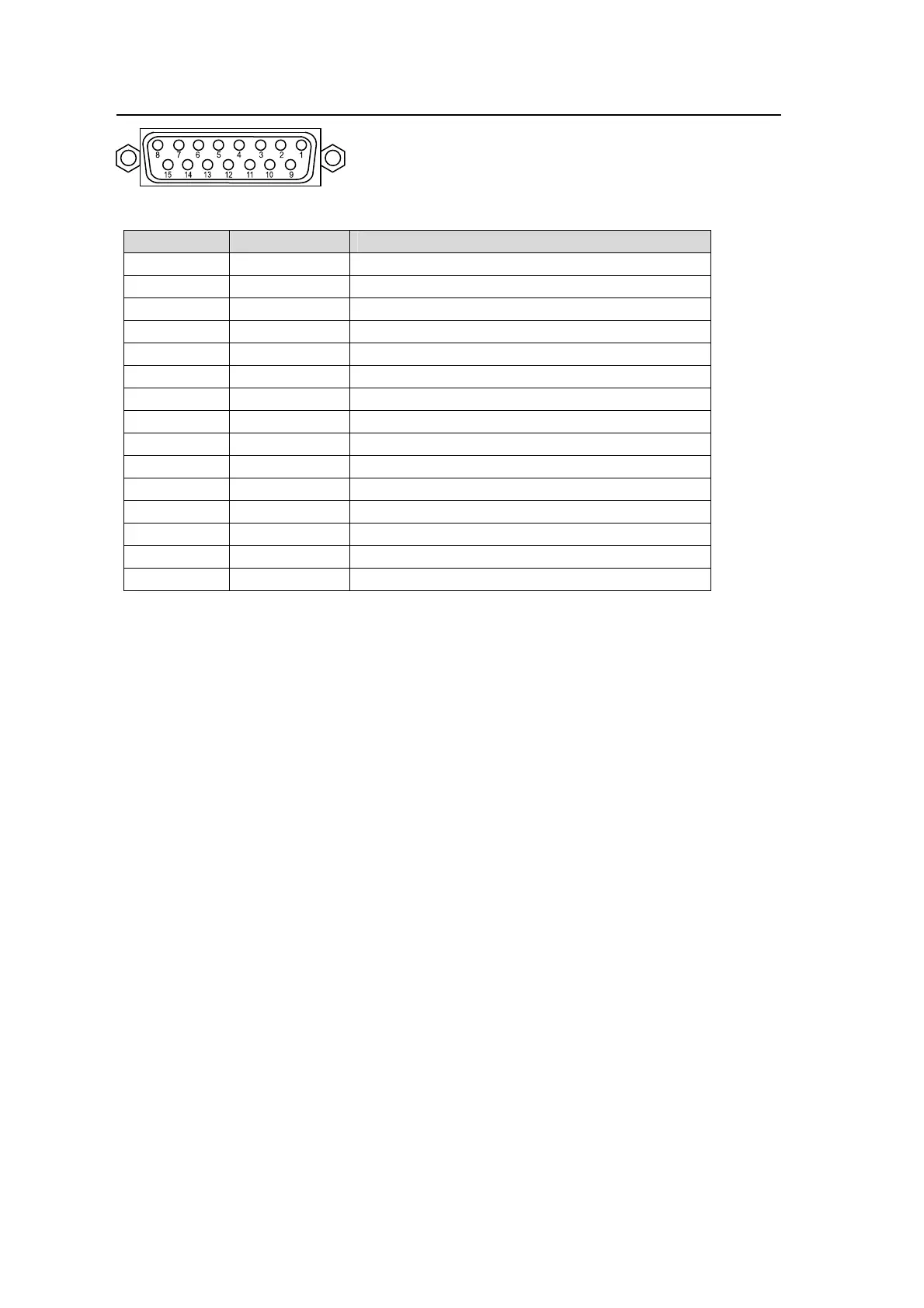

2-4-5. GPI/TALLY OUT Connector (HVS-35OU/35ROU)
Pin Assignment Table
Pin No. IN/OUT Description
1 IN M/E BKGD AUTO TRANS (default setting)
2 IN KEY1 AUTO TRANS (default setting)
3 IN KEY2 AUTO TRANS (default setting)
4 IN PinP1 AUTO TRANS (default setting)
5 IN PinP2 AUTO TRANS (default setting)
6 IN P/P BKGD AUTO TRANS (default setting)
7 - Signal ground
8 - Signal ground
9 OUT M/E BKGD TRANS STS (default setting)
10 OUT KEY1 TRANS STS (default setting)
11 OUT KEY2 TRANS STS (default setting)
12 OUT PinP1 AUTO TRANS (default setting)
13 OUT PinP2 AUTO TRANS (default setting)
14 OUT P/P BKGD TRANS STS (default setting)
15 - +5V output (MAX 0.5A)
The pin assignments shown above are the factory default assignments. Pin
assignments can be changed via operational menus. See section 23-1-3 "OU
GPI/O". See the previous sections for the GPI IN and GPI/TALLY OUT circuits.
15-pin D-sub (female)
with inch screws
