FOR-A HVS-350HS - 2 Panel Descriptions; Unpacking; About this Appendix

Appendix 3 - 4
1. Upon Receipt
1-1. Unpacking
 HVS-30OU Box
ITEM QTY REMARKS
HVS-30OU 1 Operation unit with control panel
Control Cable 1 For ARCNET connection, BNC, 10m
AC adaptor 1 set Retaining clips included
Rack Mount Brackets 1 set EIA standard type
 Check
Check to ensure no damage has occurred during shipment. If damage has occurred, or items
are missing, inform your supplier immediately.
1-2. About This Appendix
Appendix 3 is intended to help the user operate HVS-350HS units using HVS-30OU units. Refer
to main manual pages for details about functions.
 Unavailable Functions with HVS-30OU
The following functions of HVS-350HS cannot be operated from HVS-30OU.
-Sequence
-2D DVE memory
-COPY/SWAP
-KEY2 fader transitions
-Simultaneous transitions including KEY2.
-Signal selections for AUX4 to AUX8 on the KEY/AUX bus
-Simultaneous M/E and P/P operation

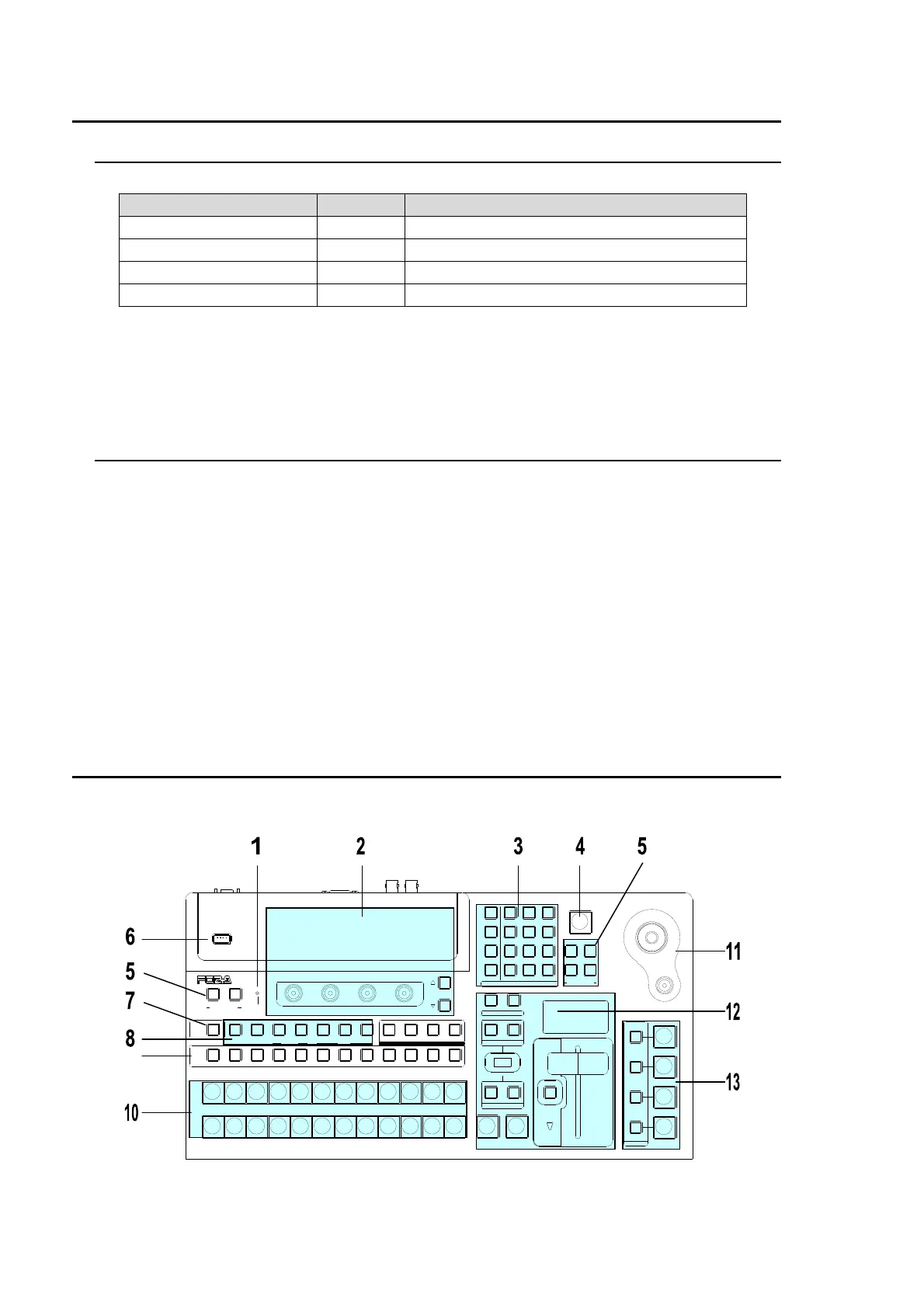

2. Panel Descriptions
 Front Panel
USB MEMORY
AUTO CUT
DSK
KEYER
P IN P
1
2
P IN P
(PUSH to DEF)
43
65
SIZE
NOR/REVREV
BKGD
WIPEMIX
F4
F3F2
F1
PAGE
USER BUTTON
12
AUXP IN P
KEYER D SK
12123
PGM CLEANPREV M V
234567891011121
PGM
PST
121110987654
POSIT ION
123
KEYER
MENU/D IRECT PAT T/EVENT/ KEY PAD
KEY/AUX
FADER LIMIT
ALARM
ON AIR
USER BUT TON
TRANS PR EV
DIRECTION
NEXT TRANSIT ION
PATTERN/R ATE
TRANSITION TYPE
HVS-300HS
DIGITAL VIDEO SWITCHER
7/SET UP
4/WIPE
1
8/STILL
5/P in P
2/KEYER
9/FILE
6/MATT
3/DSK
BLACK
TRANS
MENU
DIRECT PATT
±/EVEN T
CLR/TRANS RATE 0 /RECALL
. (DOT)
ENT/STOR E
