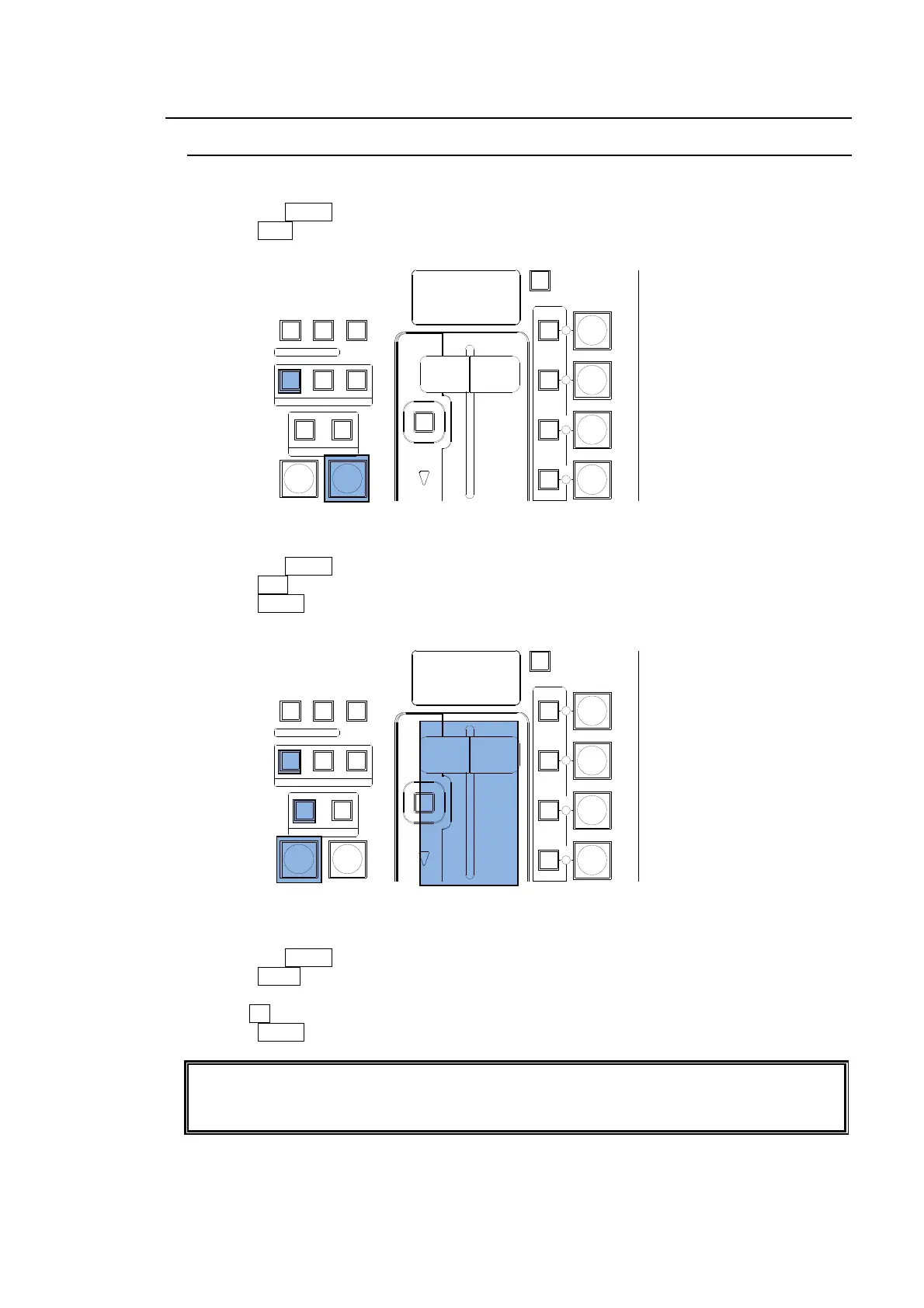

8-4. Background Transitions
8-4-1. M/E Bus
CUT Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the NEXT TRANSITION block.
(3) Press CUT to perform the background CUT transition.
MIX Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the NEXT TRANSITION block.
(3) Press MIX in the TRANSITION TYPE block.
(4) Press AUTO or move the fader lever to perform the background MIX transition.
WIPE Transition
(1) Select a video source in the PST bus block.
(2) Press the BKGD button in the NEXT TRANSITION block.
(3) Press WIPE in the TRANSITION TYPE block.
(4) The [TRANS - BKGD] menu appears in the menu display.
(5) Turn F1 to select a desired pattern. (See section 8-8 "How to Select Patterns.")
(5) Press AUTO or move the fader lever to perform the background WIPE transition.
See section 8-7. "Pattern (WIPE) Transitions " for the WIPE transition details.
See section 8-10-2. " Transition Rate" for the transition rate.
See section 8-10-1. " Fader Limit" for the fader limit.
