4-2. How to Set Values
4-2-1. Displaying Parameters
See section 4-1. "How to Access Menus" to display a desired menu. If a menu has multiple
submenus such as the SETUP menu, navigate to submenus following the procedure below.

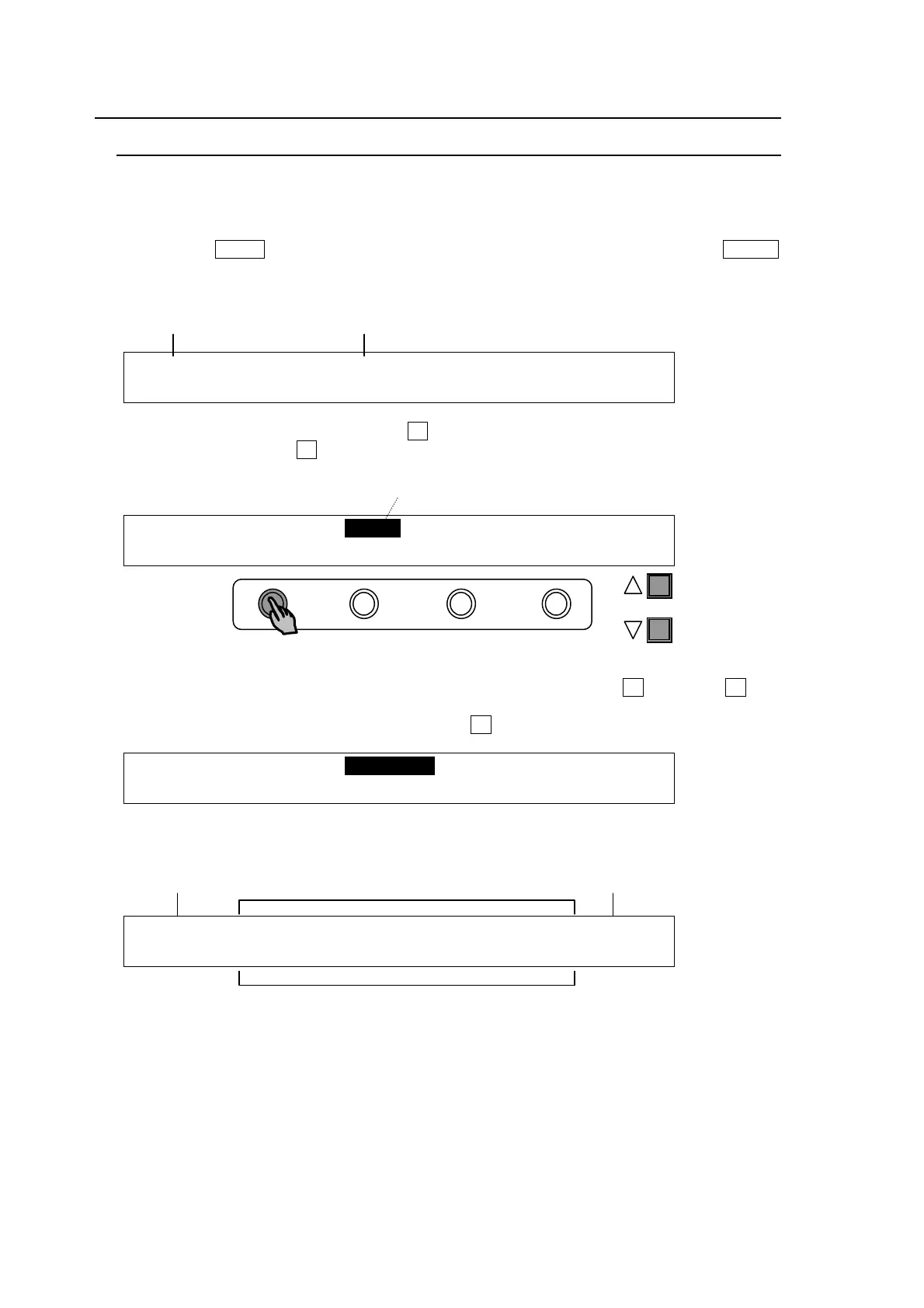

Menu navigation (Example for the SETUP menu)
(1) Press the MENU control button to the right of the menu display. Then press the SETUP
button in the Keypad to display the SETUP menu. The SETUP menu's top page will then
appear on the display, as shown below.
SETUP :>SYSTEM >INPUT >OUTPUT >PANEL
MENU :>GPI/TLY >FUNCTION>EXT I/F >STATUS
(2) Select a submenu to open by turning F1 (The INPUT submenu is selected in the example
below.) Then press F1 or the page down button to the right to open the selected
submenu.
SETUP :>SYSTEM >INPUT >OUTPUT >PANEL
MENU :>GPI/TLY >FUNCTION>EXT I/F >STATUS
(3) The [SETUP-INPUT] menu then opens. The [SETUP-INPUT] menu also has got four
submenus. Select a submenu to open by turning and then press F1 or turning F1 and
pressing the page down button to open it. The ">" in front of menu items indicates that a
detail submenu can be accessed by pressing F1.
SETUP :>SIGNAL >PROC AMP>RENAME >ASSIGN
INPUT :
(4) The [SETUP-INPUT- PROC AMP] menu is displayed as shown below. Now users can
change the parameter values.
INPUT :SELECT : Y-Lv : BLK-Lv:ENABLE : 1/3
PROC AMP: =IN04 : =1.00 : =0 : =ON :
Page Navigation
As shown in the example below, the [SETUP-INPUT-PROC AMP] submenu spreads across
three pages. When first accessed, page 1 of 3 will be displayed. To go to page 2, simply press
the page down button. Pressing the page up button returns you to page 1.
Pressing the page up button when located at the first page brings you up one level in the
menus. The same happens when pressing the page down button when located at the last
page of a menu.
Menu title Submenu title
The current selection is shown in reverse video.
PAGE
Menu title Parameters Page / Total page
Values
