FOR-A HVS-350HS User Manual

62

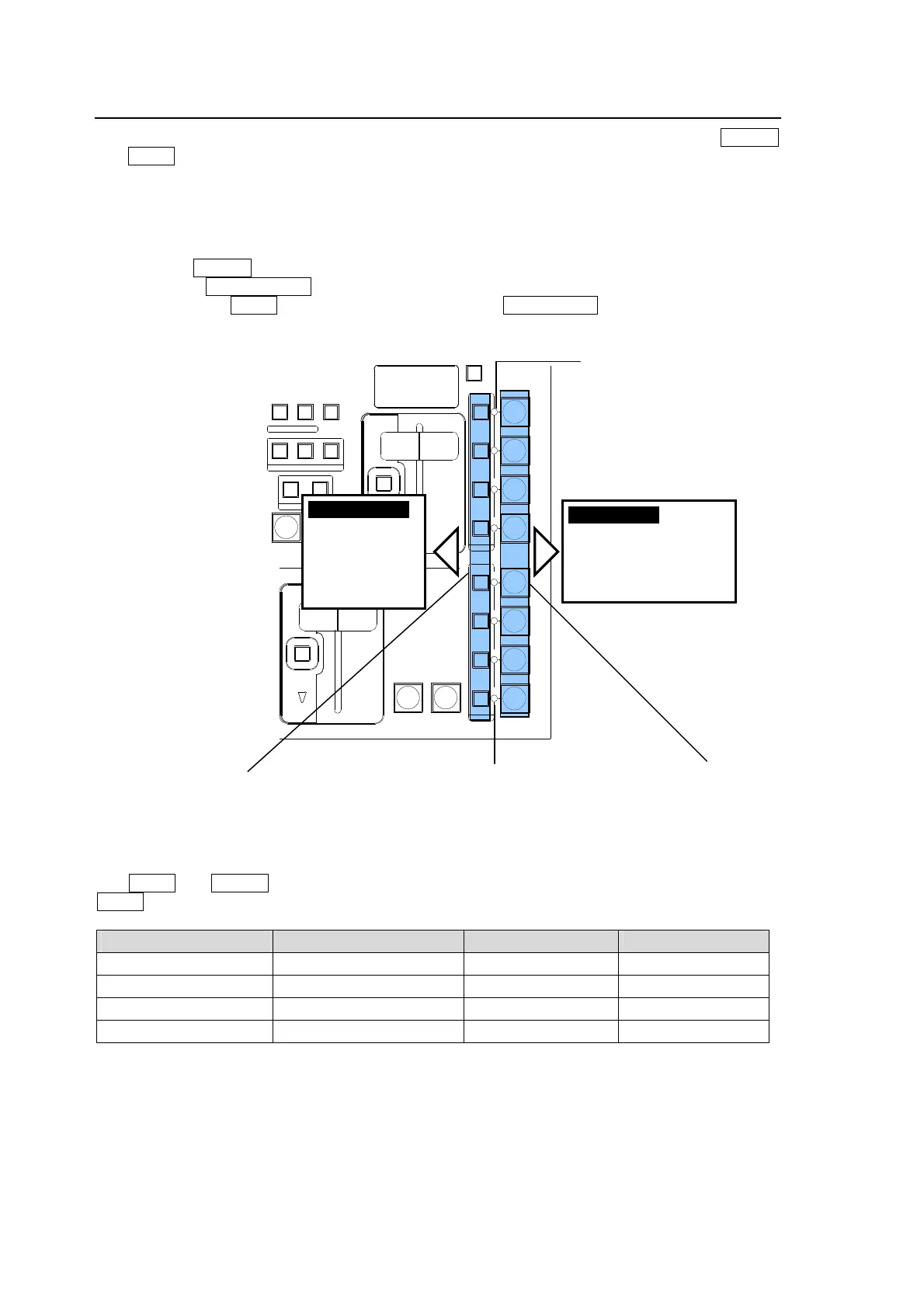

8-9. IN/OUT Effects for PinP, KEY and DSK
There are two transition buttons available for each of PinP 1-2, KEY1-2 and DSK1-4: ON AIR
and AUTO. (See the figure below.) They are multiple function buttons. The CUT, MIX, SLIDE (4
types) and WIPE (4 types) transitions can be performed using these two buttons for each bus.
To Perform PinP, KEY and DSK Transitions
(1) Set up a desired key or a PinP. (See section 10. "KEY and DSK or 15. "Picture-in-Picture.")
(2) Press the ON AIR button. For example, to insert the PinP1 on M/E program video by using
CUT, press PinP1 ON AIR (button's default setting).
(3) Then press the AUTO button. For example, pressing PinP1 AUTO fades out the PinP1 from
the screen (button's default setting), if it is on the image.
Light Indications of the AUTO button, ON AIR button and the DVE lamp
The AUTO and ON AIR buttons turn on while On-Air and turn off while Off-Air. The light color of
AUTO varies depending on the output bus.
State Output bus AUTO indication ON AIR indication
PinP/KEY/DSK ON P/P PGM (*1) Lit red Lit
PinP/KEY/DSK ON M/E PGM (*2) Lit green Lit
Transition P/P PGM, M/E PGM Flashing Lit
PinP/KEY/DSK OFF - - -
(*1) Lit red when DSK is on the P/P PGM image or any key or PinP is on the P/P PGM image using the
re-entry function.
(*2) Lit green when DSK is on an AUX bus.
Buttons turn on while On-Air.
(Light color varies by output bus)
Buttons turn off while Off-Air.
AUTO CUT
AUTO CUT
DSK 2
DSK 1
DVE
DVE
DVE
DVE
DVE
DVE
FADER LIMIT
FADER LIMIT
DIRECTION
ON AIR
P IN P
1
P IN P
2
KEY 1
KEY 2
DSK 3
DSK 4
ON AIR
REV
BKGD
NOR/REV
KEY1
NEXT TRANSITION
TRANSITION TYPE
PATTERN
KEY2
WIPEMIX
TRANSITION
RATE
DVE lamps for PinP and DSK:
Lights up green if 2D DVE effects
are enabled.
AUTO CUT
AUTO CUT
DSK 2
DSK 1
DVE
DVE
DVE
DVE
DVE
DVE
FADER LIMIT
FADER LIMIT
DIRECTION
ON AIR
P IN P
1
P IN P
2
KEY 1
KEY 2
DSK 3
DSK 4
ON AIR
REV
BKGD
NOR/REV
KEY1
NEXT TRANSITION
TRANSITION TYPE
PATTERN
KEY2
WIPEMIX
TRANSITION
RATE
ON AIR button
OFF
CUT (default)
Scaler
Slide In/Out
Wipe In/Out
A
UTO button
OFF
MIX (default)
CUT (press)
MIX (press and hold)
Buttons turn on while On-Air.
Buttons turn off while Off-Air.
DVE lamps for KEY:
Light up red if DVE patterns
are used.
Light up green if 2D DVE
effects are enabled.
