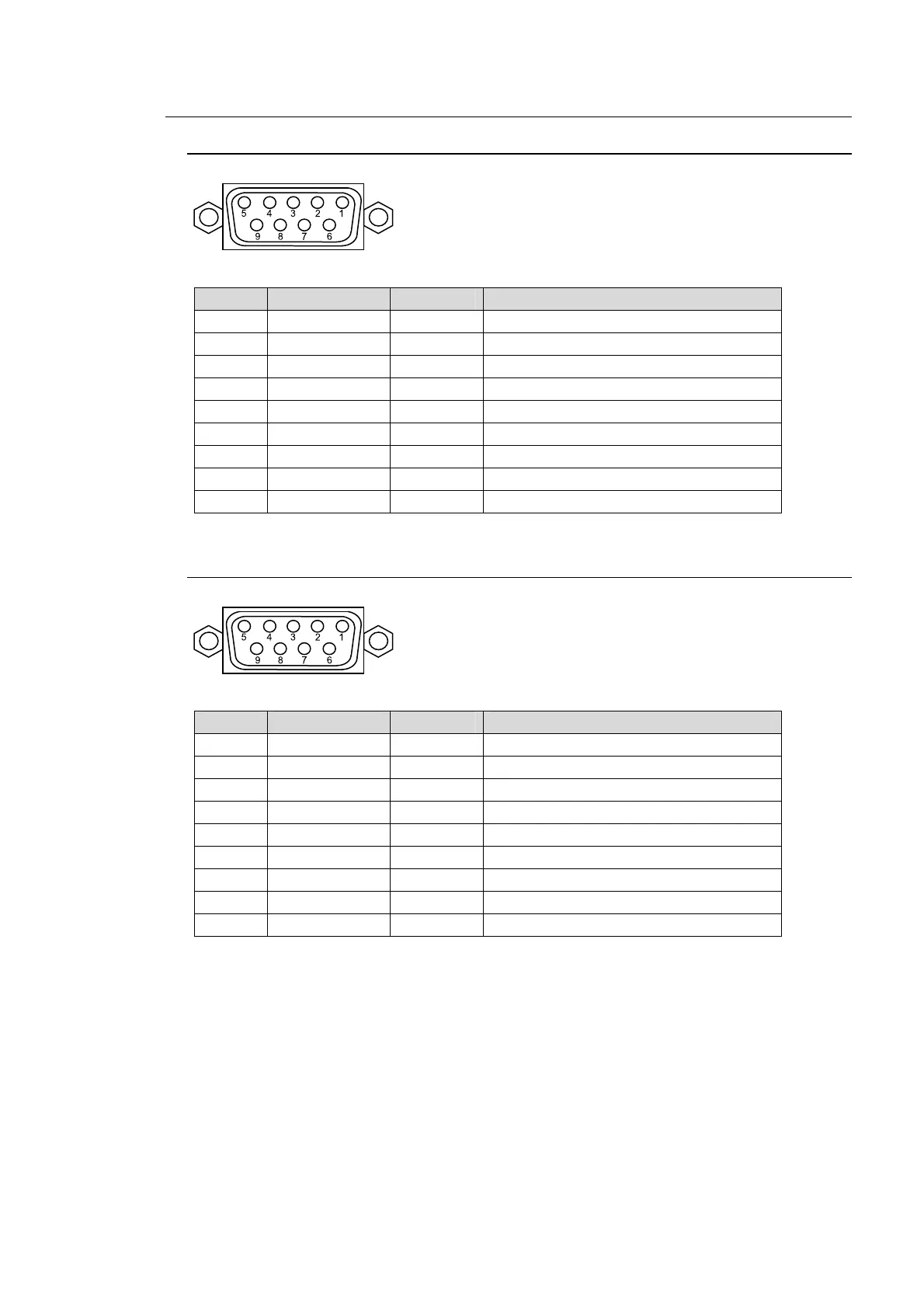

2-4. Interfaces
2-4-1. EDITOR Connector
Pin Assignment Table
Pin No. Signal Name In/Out Description
1 FG Frame ground
2 T- Out Transmit data (-)
3 R+ In Receive data (+)
4 SG Signal ground
5 NC Not used
6 SG Signal ground
7 T+ Out Transmit data (+)
8 R- In Receive data (-)
9 FG Frame ground
2-4-2. RS-422 Connector 1-4
Pin Assignment Table
Pin No. Signal Name In/Out Description
1 FG Frame ground
2 R- In Receive data (-)
3 T+ Out Transmit data (+)
4 SG Signal ground
5 NC Not used
6 SG Signal ground
7 R+ In Receive data (+)
8 T- Out Transmit data (-)
9 FG Frame ground
RS-422 ports are used for the following device connections. See the related chapters to
configure the connections.
HVS-30RU: See section 3-3. "How to Connect between MU and OU Units."
See section 32-1. "Connecting Remote Panels (HVS-30RU)."
Tally Units: See section 23-2. "Tally Output."
VTR/VDCP devices: See section 24."VTR / VDCP Control."
Routers: See sections 25 and 26.
9-pin D-sub (male)
with inch screws
9-pin D-sub (female)
with inch screws
