FOR-A HVS-350HS - GPI in Connector

10

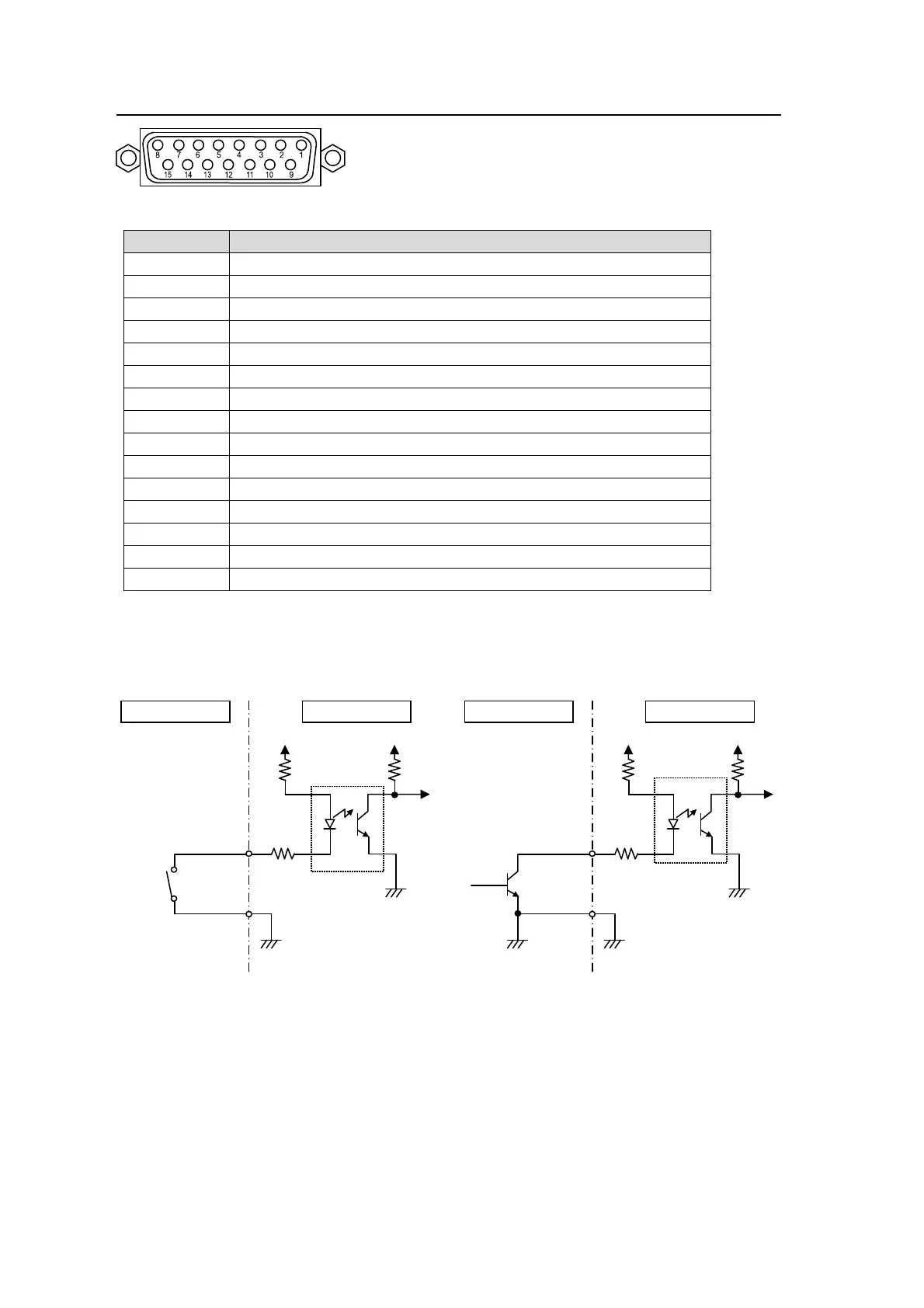

2-4-3. GPI IN Connector
 Pin Assignment Table
Pin No. Description
1 M/E BKGD AUTO TRANS (default setting)
2 KEY1 AUTO TRANS (default setting)
3 KEY2 AUTO TRANS (default setting)
4 PinP1 AUTO TRANS (default setting)
5 PinP2 AUTO TRANS (default setting)
6 P/P BKGD AUTO TRANS (default setting)
7 DSK1 AUTO TRANS (default setting)
8 DSK2 AUTO TRANS (default setting)
9 DSK3 AUTO TRANS (default setting)
10 DSK4 AUTO TRANS (default setting)
11 Not used
12 Not used
13 Signal ground
14 Signal ground
15 Signal ground
The pin assignment shown above is the factory default assignment. Pin assignments can be
changed via operational menus. See section 23-1-1 "GPI IN".
GPI IN Circuit
15-pin D-sub (female)
with inch screws
HVS-350HS
VCC VCC
External Device
Open corrector
HVS-350HS
VCCVCC
External Device
Switch or Relay
