20

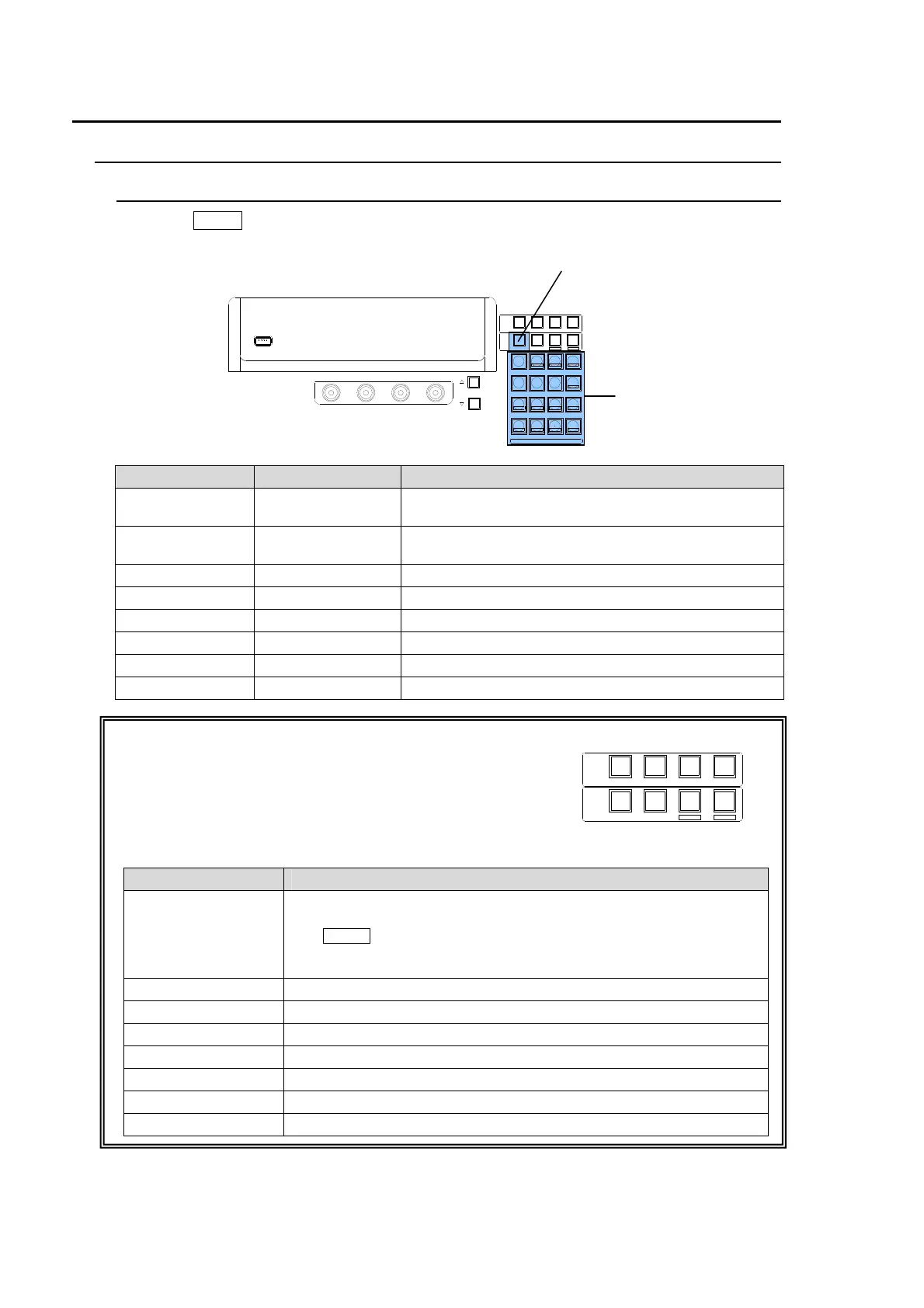

4. Menu Operations
4-1. How to Access Menus
4-1-1. Menu Access Buttons
Press the MENU control button below, which changes the buttons in the SELECT/KEYPAD
block to the menu buttons, and then press the buttons on the Keypad to access menus.
KEYPAD Block
Button Accessed menu Menu Description
SET UP SETUP MENU
Accesses menu for setups of system, panel, video
input, video output and external interface.
STILL STILL STORE
Accesses menu for operations with still images and
video clips.
MATT MATT COLOR Accesses menu for matte color
FILE FILE TOP Accesses menu for file operations using a USB
KEY1-2 KEY1-2 SETUP Accesses menu for KEY setup and KEY effects.
P in P1-2 PinP1-2 SETUP Accesses menu for PinP 1 and PinP 2 setup.
DSK1-4 DSK1-4 SETUP Accesses menu for DSK setup and DSK effects.
WIPE WIPE Accesses menu for WIPE pattern modification.
SELECT / KEY PAD Block
The SELECT/KEYPAD block has four control modes and
four memory modes as shown in the table below. Eight
control buttons above the Keypad change the Keypad
mode.
Mode Selection Buttons
Button Function
MENU
Changes the Keypad to menu access buttons. Pressing on a button
in the Keypad displays the related menu.
The MENU control button blinks if a parameter has changed and
requires rebooting. In this case, reboot the switcher. (See section
22-1. "Rebooting System.")
USER BUTTON Changes the Keypad to user buttons.
COPY/SWAP Changes the Keypad to copy/swap operation buttons.
SEQ EDIT Changes the Keypad to sequence edit buttons.
WIPE Changes the Keypad to WIPE pattern memory buttons
2D DVE Changes the Keypad to 2D DVE pattern memory buttons
EVENT Changes the Keypad to event memory buttons.
SEQUENCE Changes the Keypad to sequence memory buttons.
KEYPAD block
USB MEMORY
F4
F3F2
F1
PAGE
SELECT / KEYPAD
MEMORY
CONTROL
WIPE
MENU
INC
DEC
+/-
PLAY
STOP
CLEAR
2D DVE
USER BUTTON
7
4
1
CUT
0
COPY
EVENT
COPY/SWAP
8
SWAPCOPY
5
RECALL
PASTE
SEQUENCE
SEQ EDIT
9
NEW
6
INS
3
ADD
STORE
ENTER
OVWR
SETUP STILL MATT FILE
KEY1 KEY2 P IN P1 P IN P2
DSK1 DSK2 DSK3 DSK4
WIPE
2
DEL
MENU
MEMORY
CONTROL
WIPE
MENU
2D DVE
USER BUTTON
EVENT
COPY/SWAP
SEQUENCE
SEQ EDIT
