Section 4-6 - Monitor Function Checks 4-27
Section 4-6Monitor Function Checks
4-6-1 15" LCDMON II Assy & LCD Panel with filter Function Validation Procedure
1.) Turn on the system.
2.) Select "Utility Key” on the Key board and then choose “Test Pattern” and “Resolution” marked in
the figure below.
3.) All the Numbers from 0 to 100 on the figure above should be easily distinguished.

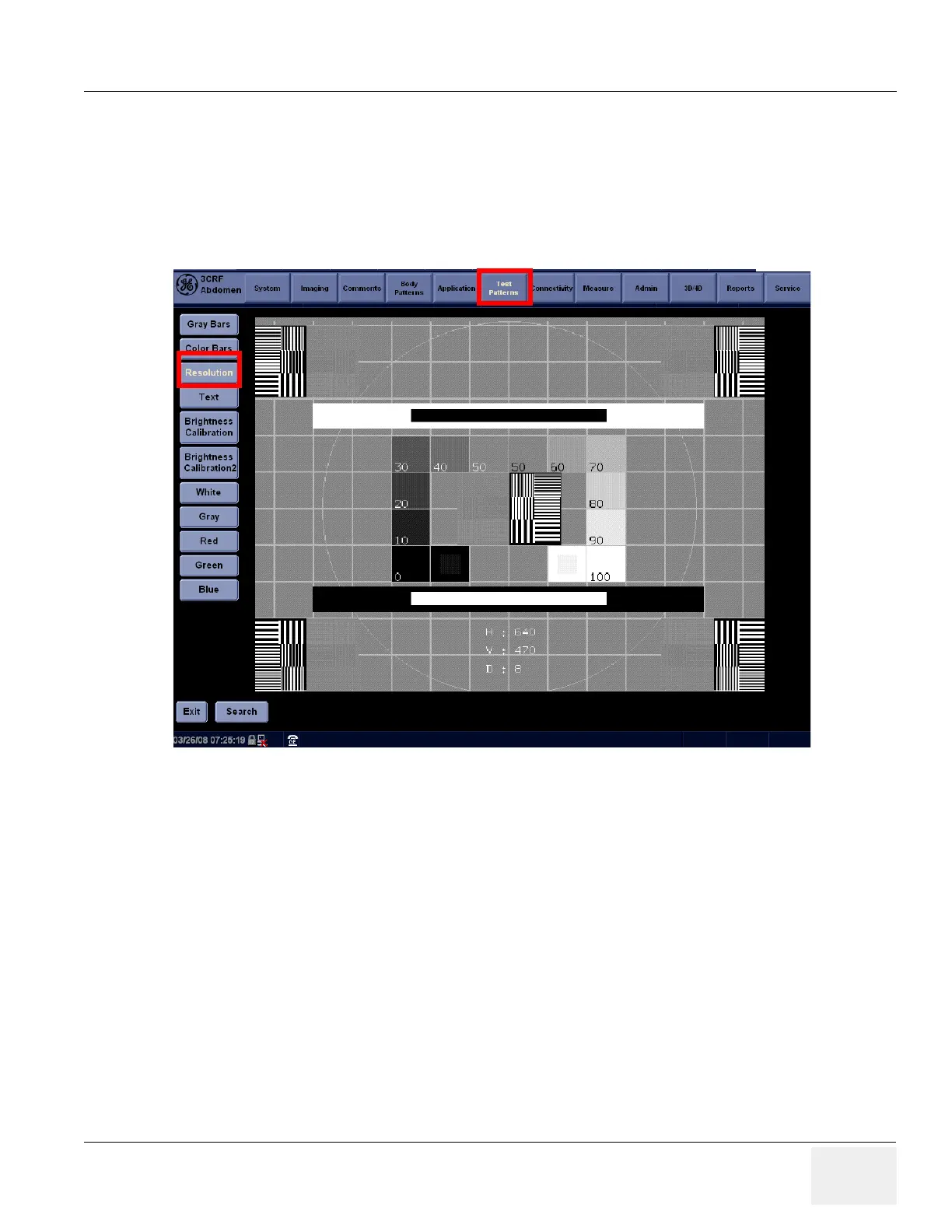

Figure 4-23 15” LCDMON Assy Function Check
