4-42 Section 4-9 - Board Function Checks
4-9-2 ACWD Assy Function Validation Procedure
1.) Insert the Sector probe in probe port.
2.) Turn on the system.
3.) Press Virtual Convex button to enable Virtual Convex if not already enabled.

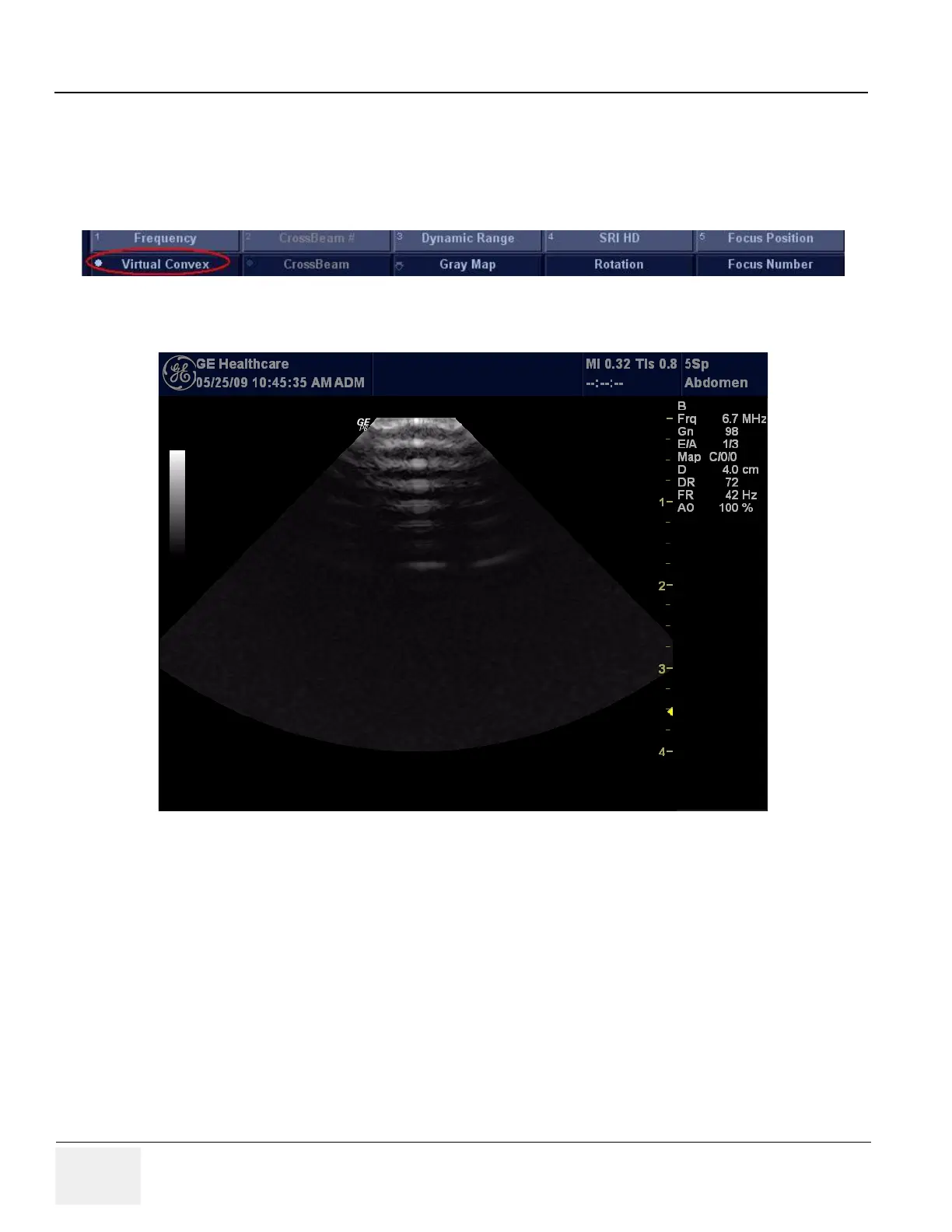

Figure 4-39 Virtual Convex Enabled
Figure 4-40 Virtual Convex
