8-40 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-8 Sub Keyboard Assy
8-2-8-1 Tools
• Common pilIips screwdrivers
8-2-8-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-8-3 Removal procedure
1.) Remove the Main Keyboard Assy. Refer to the 8-2-7 "Main Keyboard Assy" on page 8-37.
2.) Unscrew 4 screws (1-4). 2 screws(1-2) are back side or the speaker and 2 screws(3-4) are bottom
of sub keyboard.
3.) Perform the following functional tests. If all are successful, include the debrief script provided below.

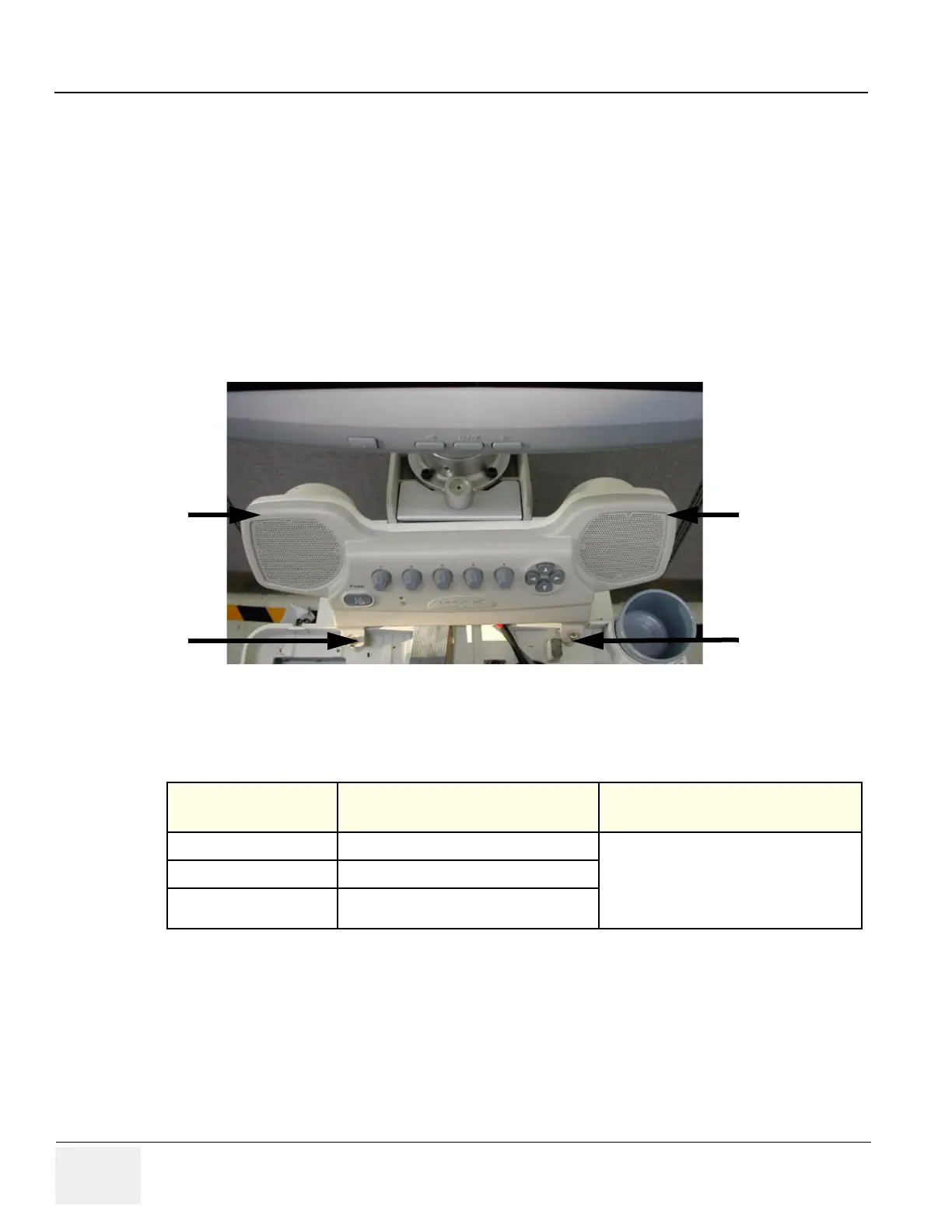

Figure 8-70 4 Screw Sub Keyboard Assy
Table 8-9 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-8. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-2
Sub Keyboard Assy Function Validation
Procedure
(1) (2)
(3) (4)

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
