GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-91
8-2-37 Front Caster / Rear Caster
NOTE: Both Front Casters and Rear Casters are swivel type in LOGIQ™ A5 but in LOGIQ™ A5, only
Front Casters are swivel type (Rear Casters are “Fixed” type).
8-2-37-1 Tools
Common pilIips screwdrivers
Allen/Unbraco wrench
8-2-37-2 Preparations
Shut down the system and switch off the main breaker.
8-2-37-3 Removal procedure
1.) Unscrew 8 screws (1A-8A) to remove the front caster.
2.) Unscrew 8 screws (1-8) to remove the rear caster.

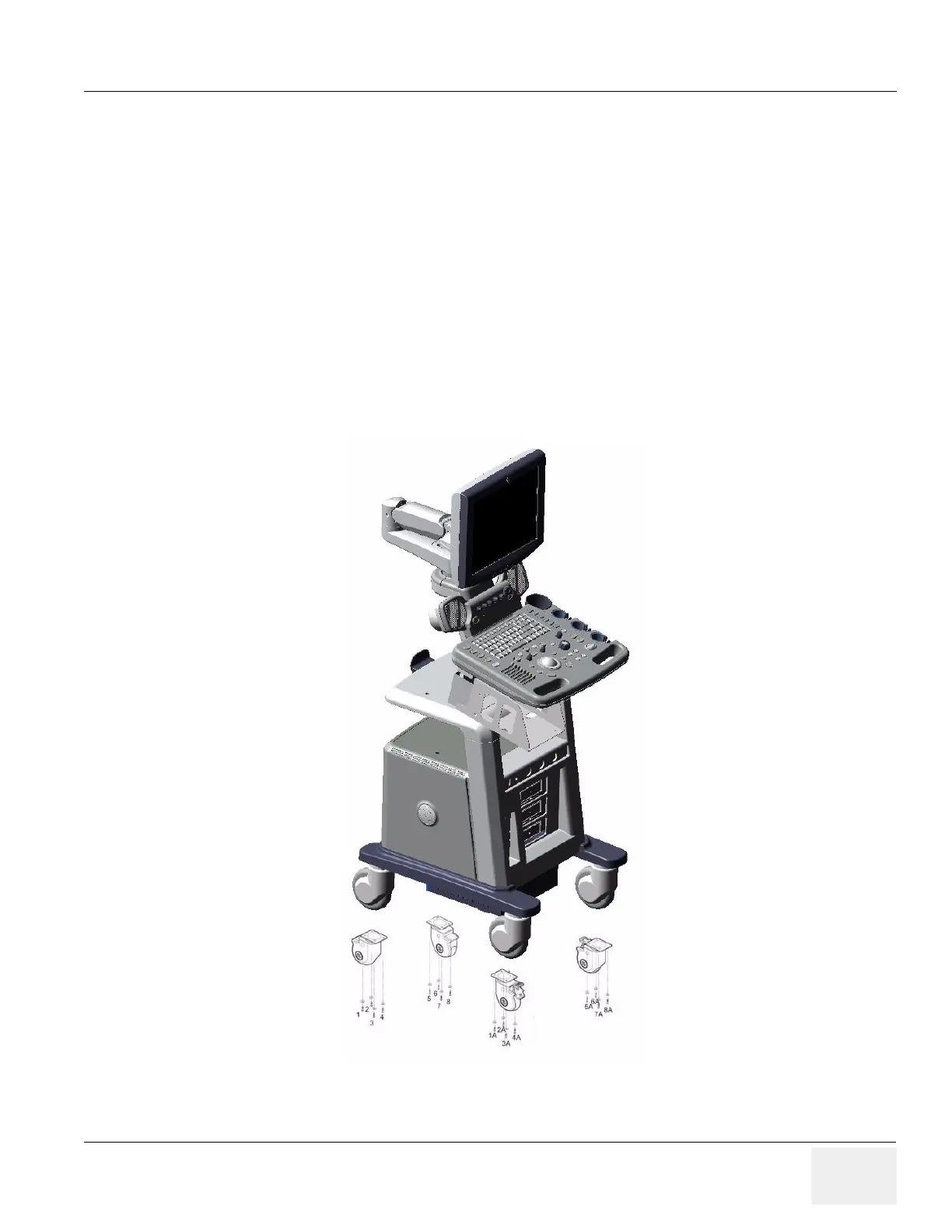

Figure 8-125 Casters
