DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 3-5 - Completing the Installation 3-13
3-5-1-2 Power Up Sequence
1.) The Start Up Screen will be shown on the Monitor display when the system is turned ON.
2.) After initialization is complete, all lighted buttons on the Control Panel light and the default B-Mode
screen or Patient screen (no probes are connected) is displayed on the monitor display.
3-5-1-3 Power Up Sequence
NOTE: To enter the Maintenance Mode, select Maintenance button.
NOTE: Figure 3-11 on page 3-13 displays when Service Dongle inserted in Rear Panel.
NOTE: Start is selected automatically when it time out.
NOTE: In case the system is locked with task manager, use arirang as a password to unlock the
system.

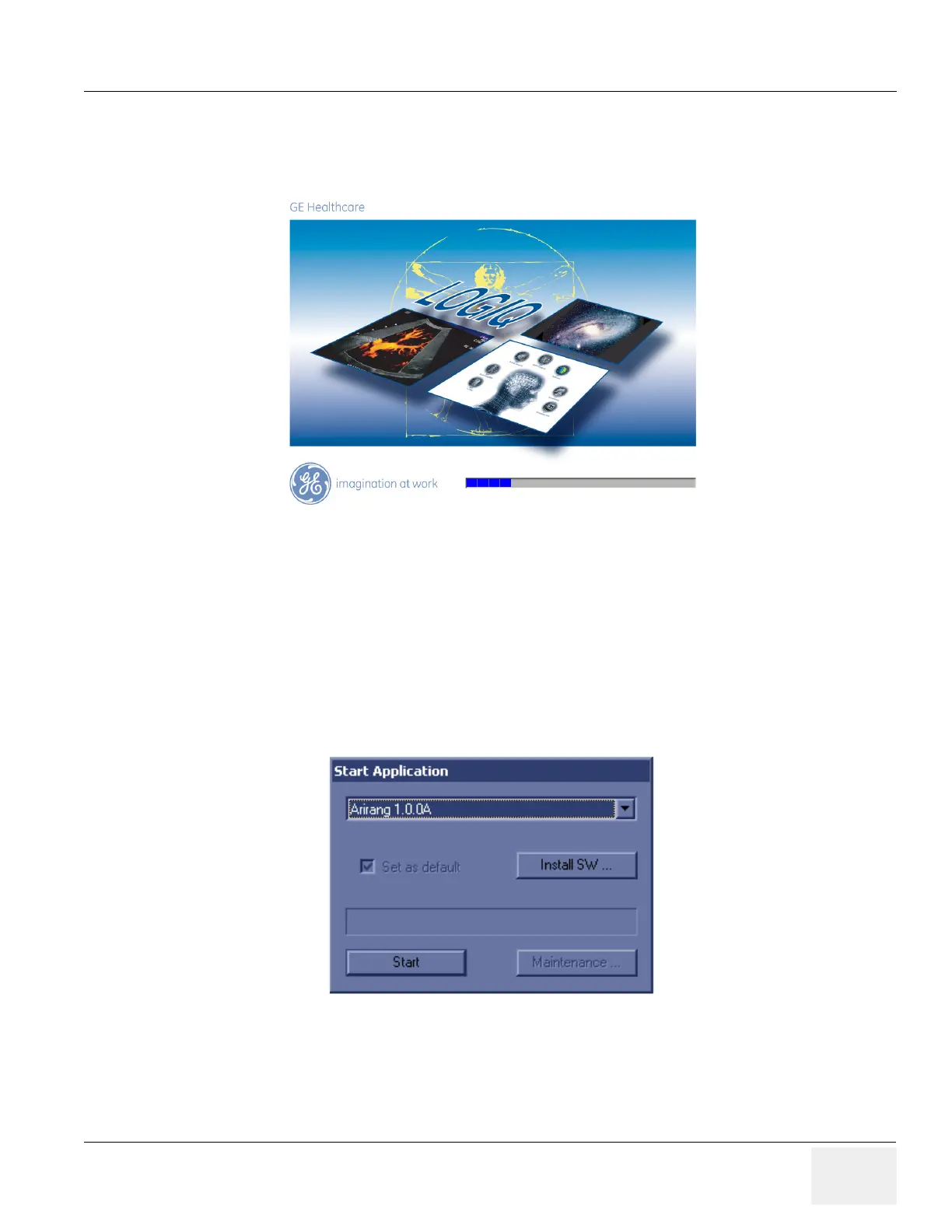

Figure 3-10 Start Up Screen Display
Figure 3-11 Start Application Window

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
