8-2-26 EMI Cover L
8-2-26-1 Tools
• Common pilIips screwdrivers
8-2-26-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-26-3 Removal procedure
1.) Remove the Side Left Cover. Refer to the 8-2-15 "Side Left Cover" on page 8-51.
2.) Unscrew 6 screws (1-6).
3.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-26-4 Mounting Procedure
Install the new parts in the reverse order of removal.

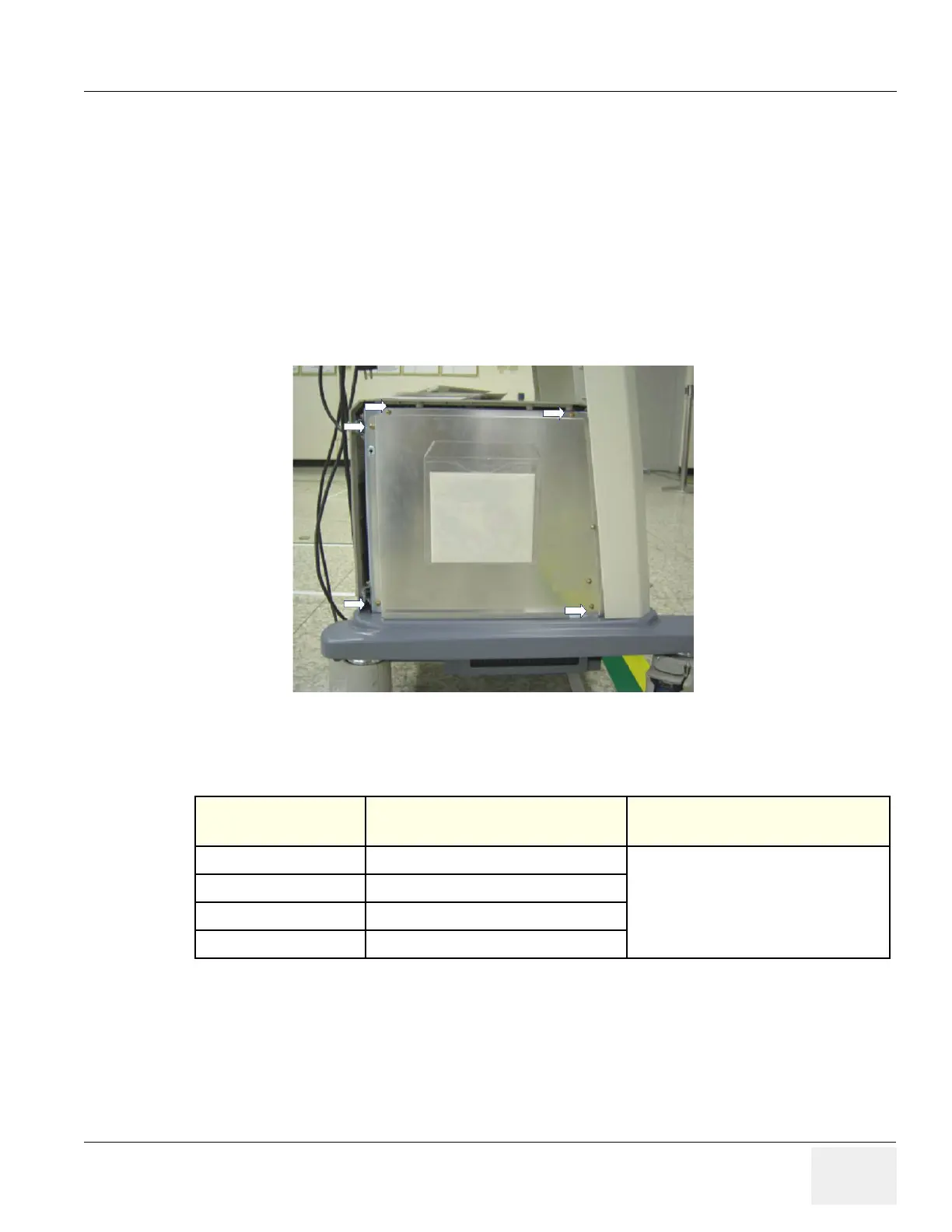

Figure 8-104 EMI Cover L
Table 8-27 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-26. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection
