GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-183
8-7-4 Drawer Option installation
1.) Push the drawer from the front to the rear direction.
2.) Unscrew 2 existing screws from the middle cover.
3.) Using the bracket, fix the drawer by screwing 3 screws each of left and right side of the drawer.

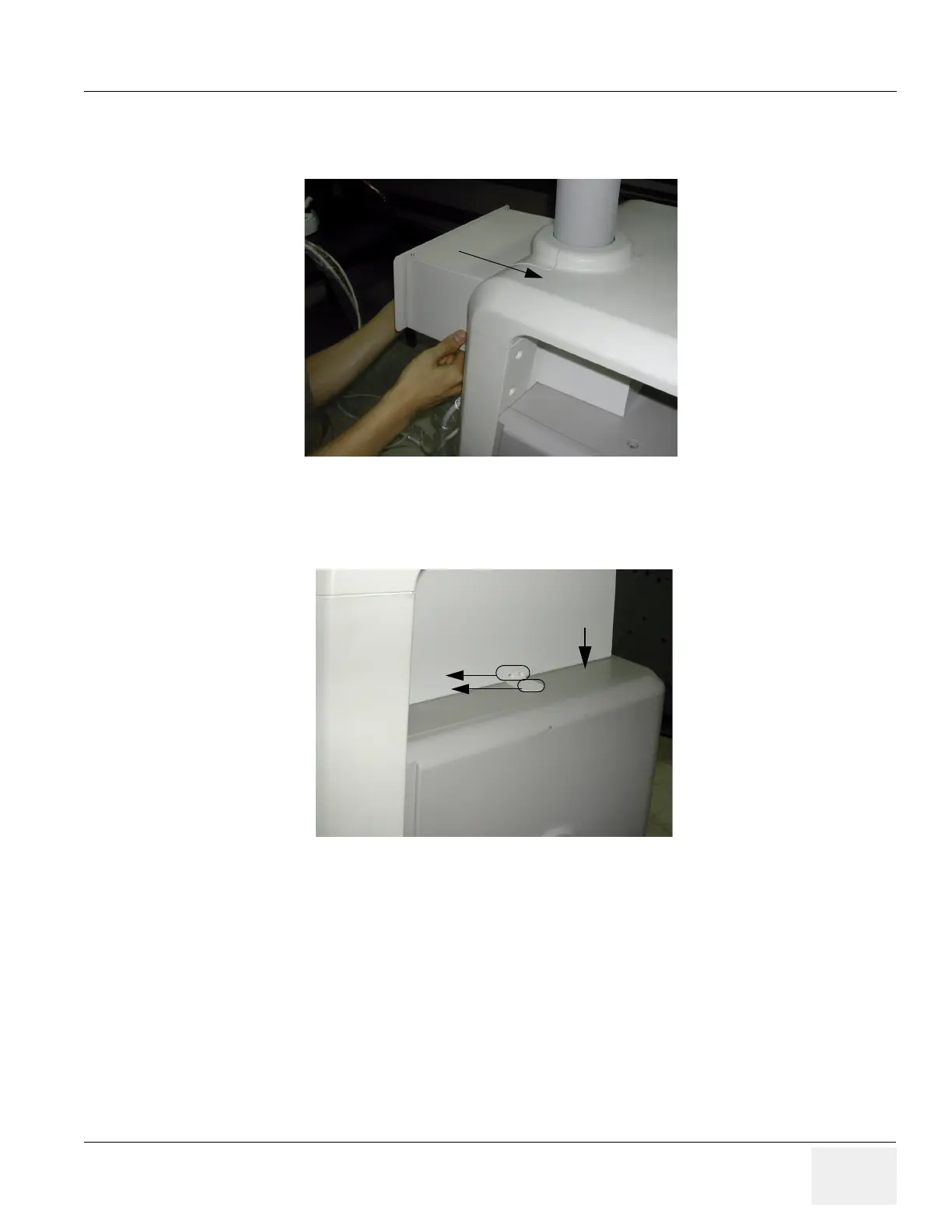

Figure 8-254 Drawer Option Installation
Figure 8-255 Installation of Drawer Option
Middle Cover
2337572
(Screw, FH M3x6 WHT)
5176744
(Screw, BH M4x20 WHT)

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
