GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-63
8-2-23 Neck Front
8-2-23-1 Tools
• Common pilIips screwdrivers
8-2-23-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-23-3 Removal procedure
1.) Remove 1 rubber cap.
2.) Unscrew 1 screw and remove the Neck Front.

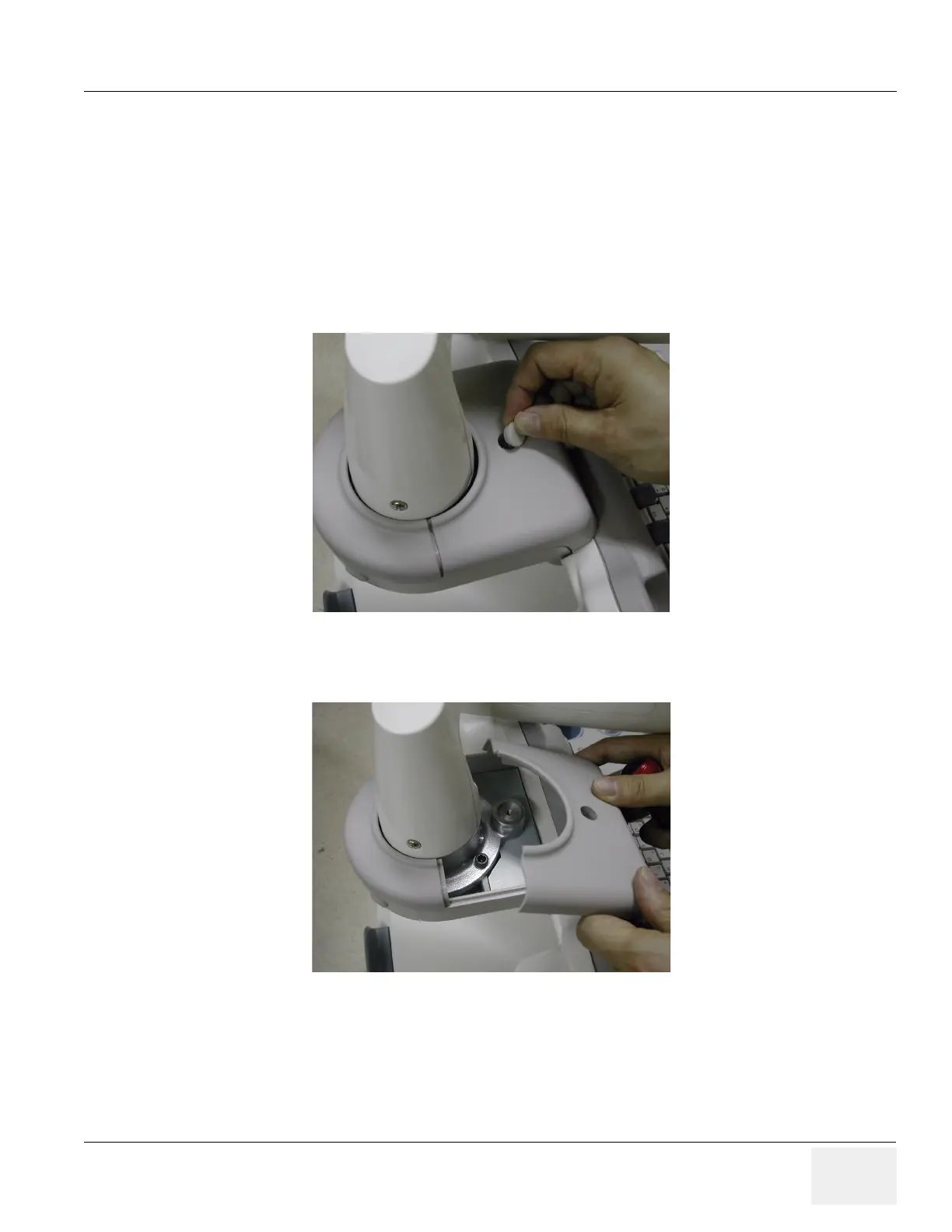

Figure 8-98 rubber cap of neck front cover
Figure 8-99 Open neck front cover

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
