GE LOGIQ P5 Service Manual

GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 7-3 - Screen Captures 7-7
7-3-3 Capturing a Screen (cont’d)
5.) A Save dialog box will be opened. Choose the destination as the archive location to save the
image on the CD-R/DVD-R, USB or network storage.
7-3-4 Reset the P2 Key to Customer’s Functionality
If the customer had programmed the P2 Key to a function other than screen capture, restore that
functionality recorded in section 7-3-1 on page 4. refer to Figure 7-2.
1.) Select
Utility from the Keyboard.
2.) Select
Connectivity from the Menu.
3.) Select the
Buttons tab on the Connectivity screen.
4.) In the
Button field, select Print2.
5.) In the “Physical Print Buttons”box, select the options recorded in step 5, Section 7-3-1. :
* Format
* Image Frames
* Capture Area
* Compression

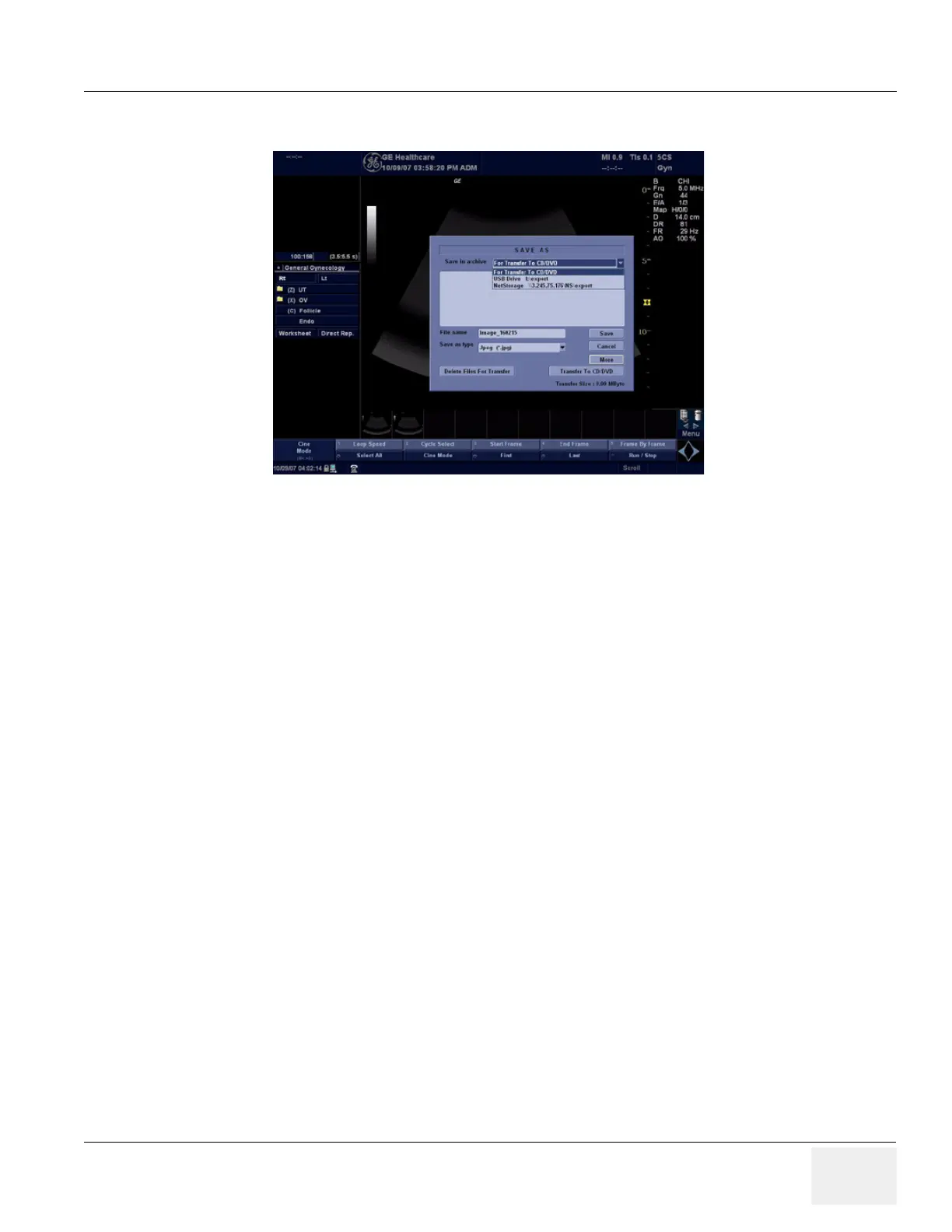

Figure 7-5 Save Dialog Box

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
