8-202 Section 8-7 - Mechanical Option Installation instruction
8-7-13 Printer VCR DVD Fixture Top Installation (MD-3000)
8-7-13-1 VCR Remote Port Configuration
1.) LOGIQ™ P5 control the Mitsubishi MD-3000 VCR through USB. Hence the VCR remote control
port must be configured as USB
2.) Open the remote control module in the VCR.
3.) Unscrew 2 screws on the VCR remote control port panel and out the remote control module from
VCR. Unscrew 1 screw on the module.

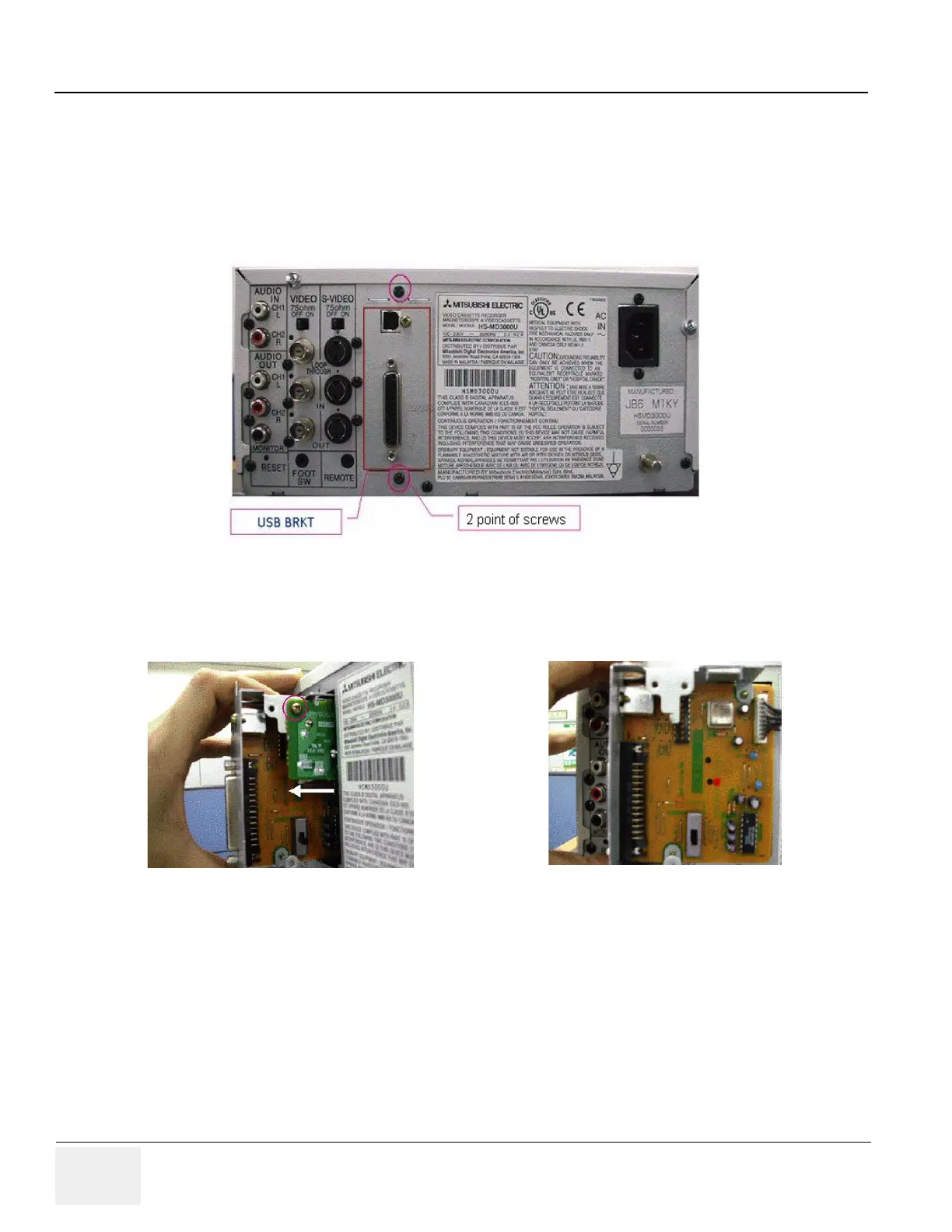

Figure 8-298 VCR Remote Control Panel
Figure 8-299 VCR Remote Control Panel 2
